21
Installation
3.6.6 Ethernet wiring
Ethernet standard 10Base-T or 100Base-T can be used, however the facility wiring must
be appropriate for the speed of the network to prevent intermittent problems from
occurring. For particle counter installations, Ethernet standard 10Base-T is sufficient to
transmit data and is more forgiving of installation errors.
• Length—100 meters maximum single wire length (repeaters can be used to increase
the distance)
• Repeaters—4 maximum
• Connector type—RJ-45 (standard Ethernet wiring convention T-568B)
Refer to Figure 14 and Table 5 to install a particle counter with Ethernet communication.

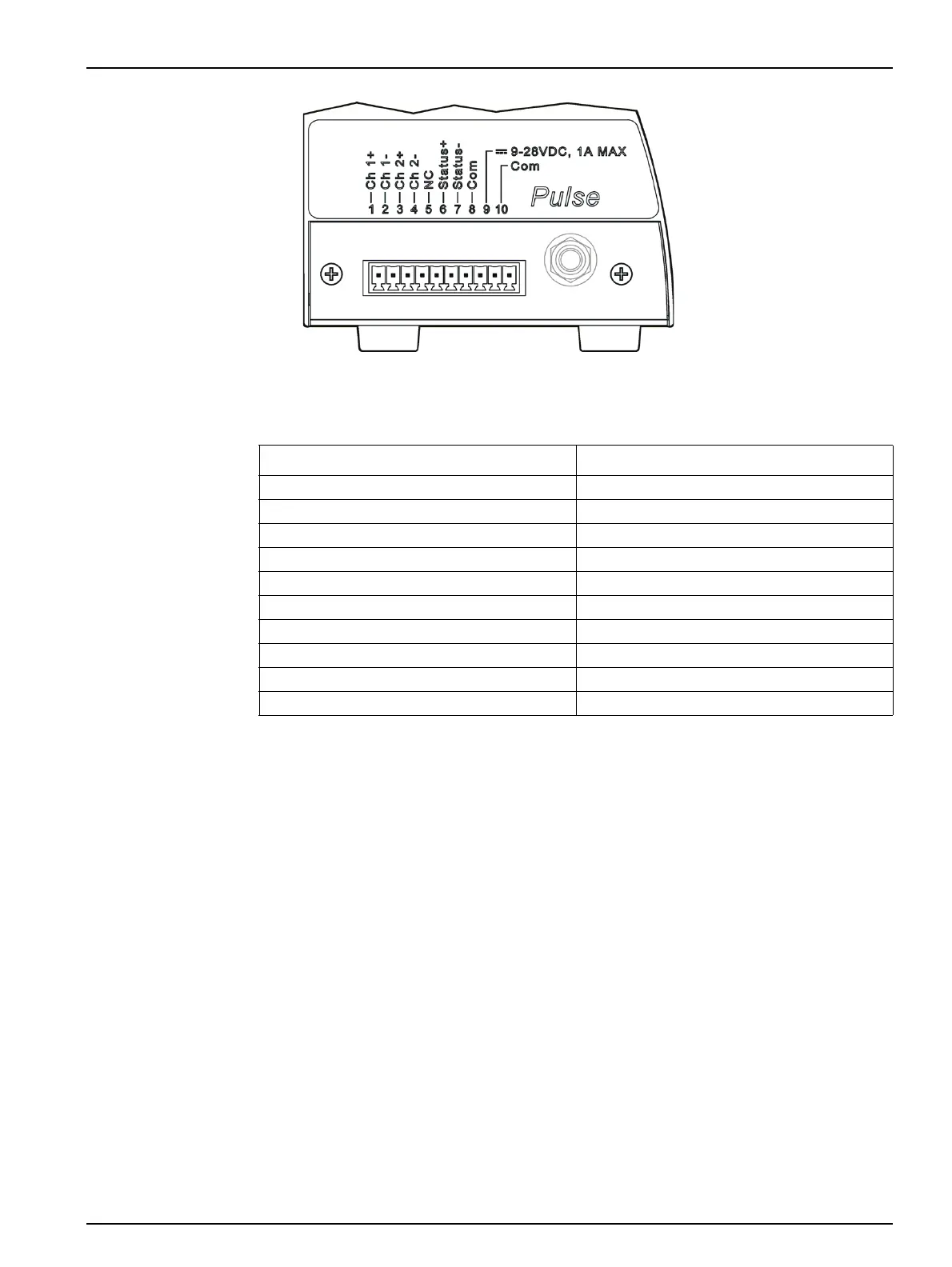

Figure 13 Wiring for pulse output
Table 4 Terminal assignments—pulse output
Terminal Assignment
1 Ch 1+
2 Ch 1–
3 Ch 2+
4 Ch 2–
5NC
6 Status +
7 Status –
8 Common (shield ground)
9 Power source (9–28 VDC, 1 A maximum)
10 Common
