FXB communication

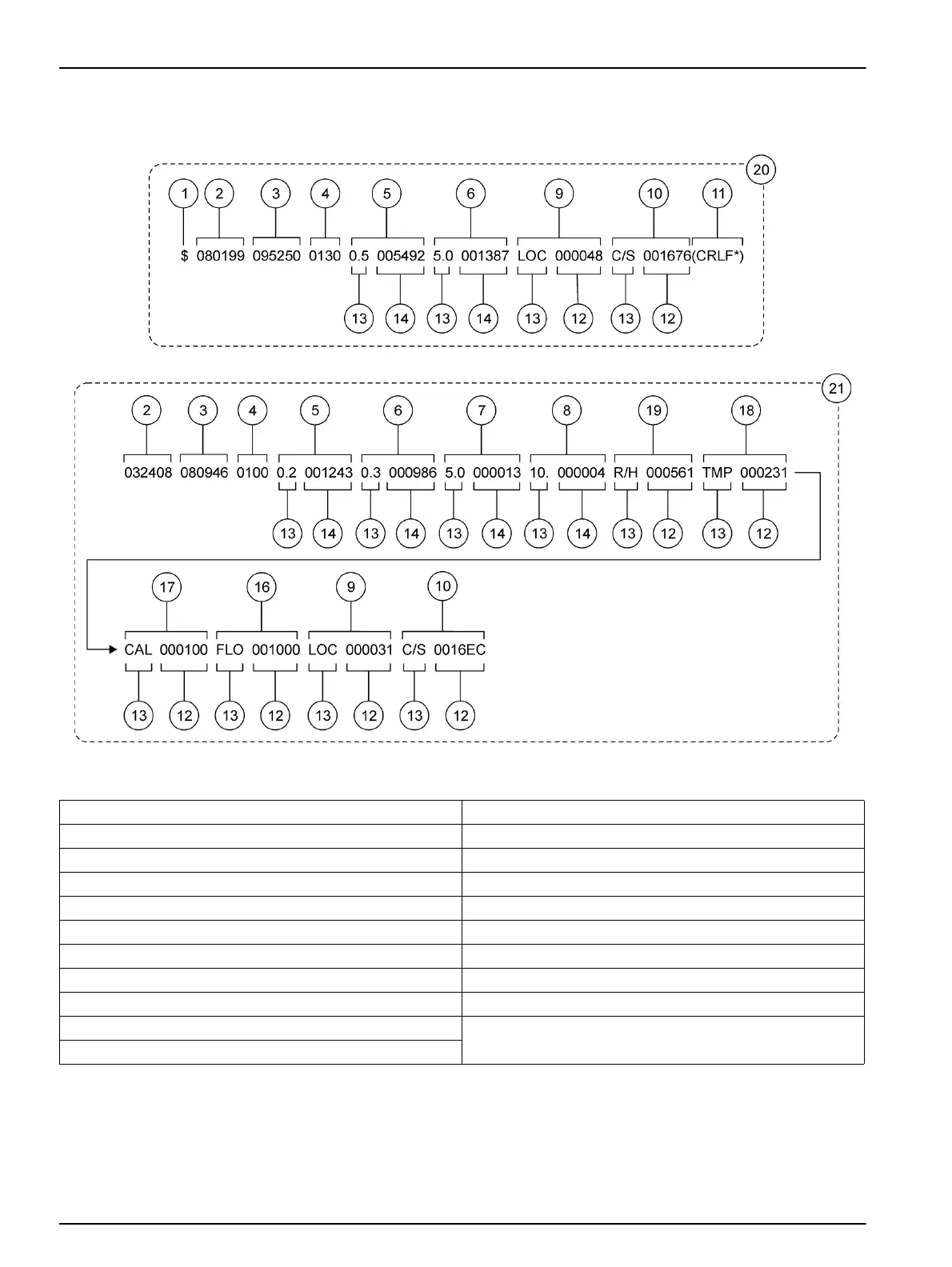

Figure 29 Data record format examples of a 2 channel counter without flow sensor and a 4 channel sensor with
flow and RH/Temp sensor
1 Status ($ = count alarm) 12 Value
2 Date 13 Tag
3 Time 14 Count
4 Period 15 Size
5 Channel 1 16 Flow rate
6 Channel 2 17 Calibration value
7 Channel 3 18 Air temperature reading
8 Channel 4 19 Relative humidity
9 Location 20 2-channel basic 48XX data record format
10 Checksum 21 4-channel with enviro probe and flow measurement data
record format
11 End message
