– 40 –

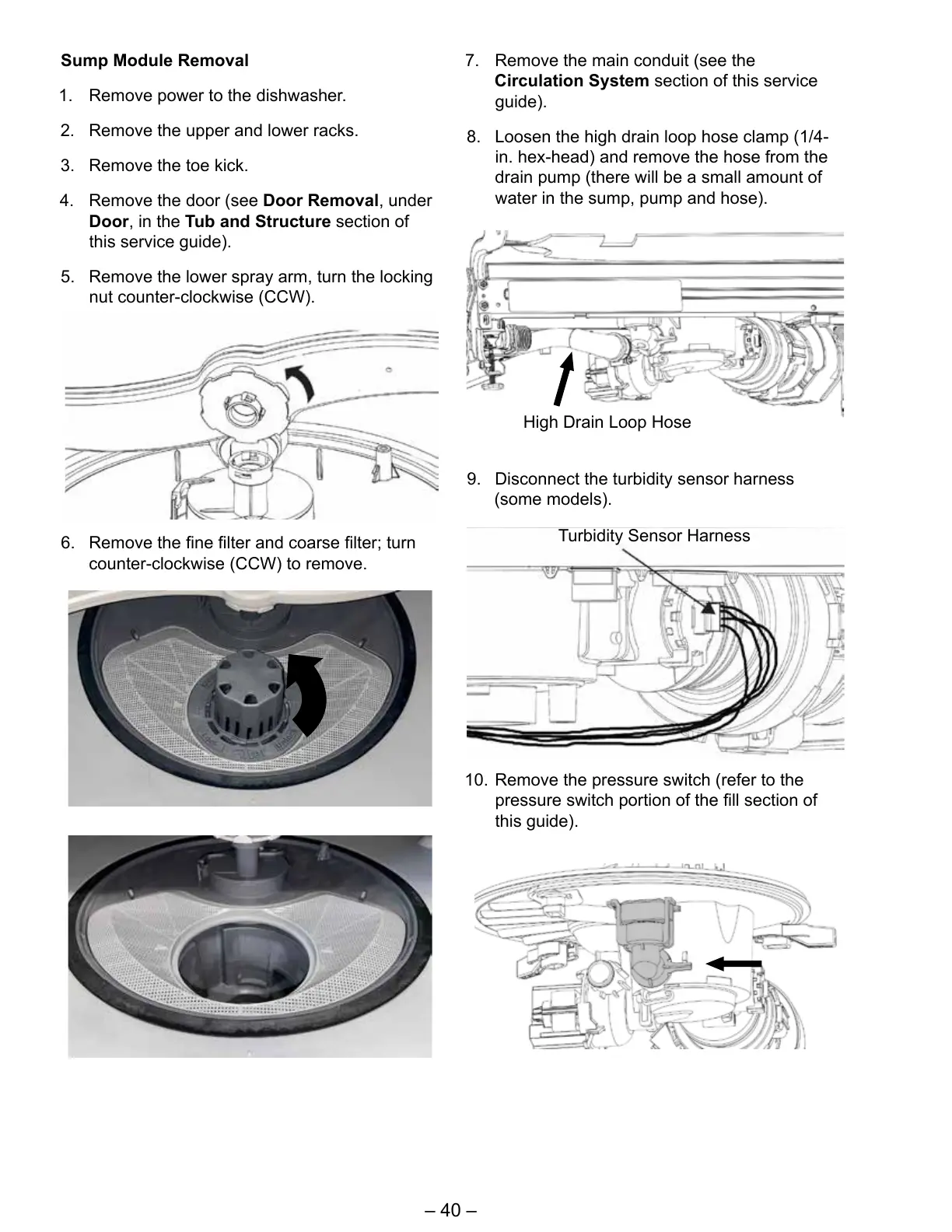

Sump Module Removal
1. Remove power to the dishwasher.
2. Remove the upper and lower racks.
3. Remove the toe kick.
4. Remove the door (see Door Removal, under
Door, in the Tub and Structure section of
this service guide).
5. Remove the lower spray arm, turn the locking
nut counter-clockwise (CCW).
6. Remove the ne lter and coarse lter; turn
counter-clockwise (CCW) to remove.
7. Remove the main conduit (see the
Circulation System section of this service
guide).
8. Loosen the high drain loop hose clamp (1/4-
in. hex-head) and remove the hose from the
drain pump (there will be a small amount of
water in the sump, pump and hose).
9. Disconnect the turbidity sensor harness
(some models).
10. Remove the pressure switch (refer to the
pressure switch portion of the ll section of
this guide).
Turbidity Sensor Harness
High Drain Loop Hose
