Haldex EB+ Soft Docking - Mounting of Sensor; Mounting Rules; Mounting in Front of Trailer Plate; Mounting Behind Trailer Plate

EB+ Soft DockingInstallation guide
19
2020 Innovative Vehicle Solutions
80 mm
40 mm
44 mm
63 mm +/- 0.1 mm
51 mm
Behind trailer plate mounted In front trailer plate mounted

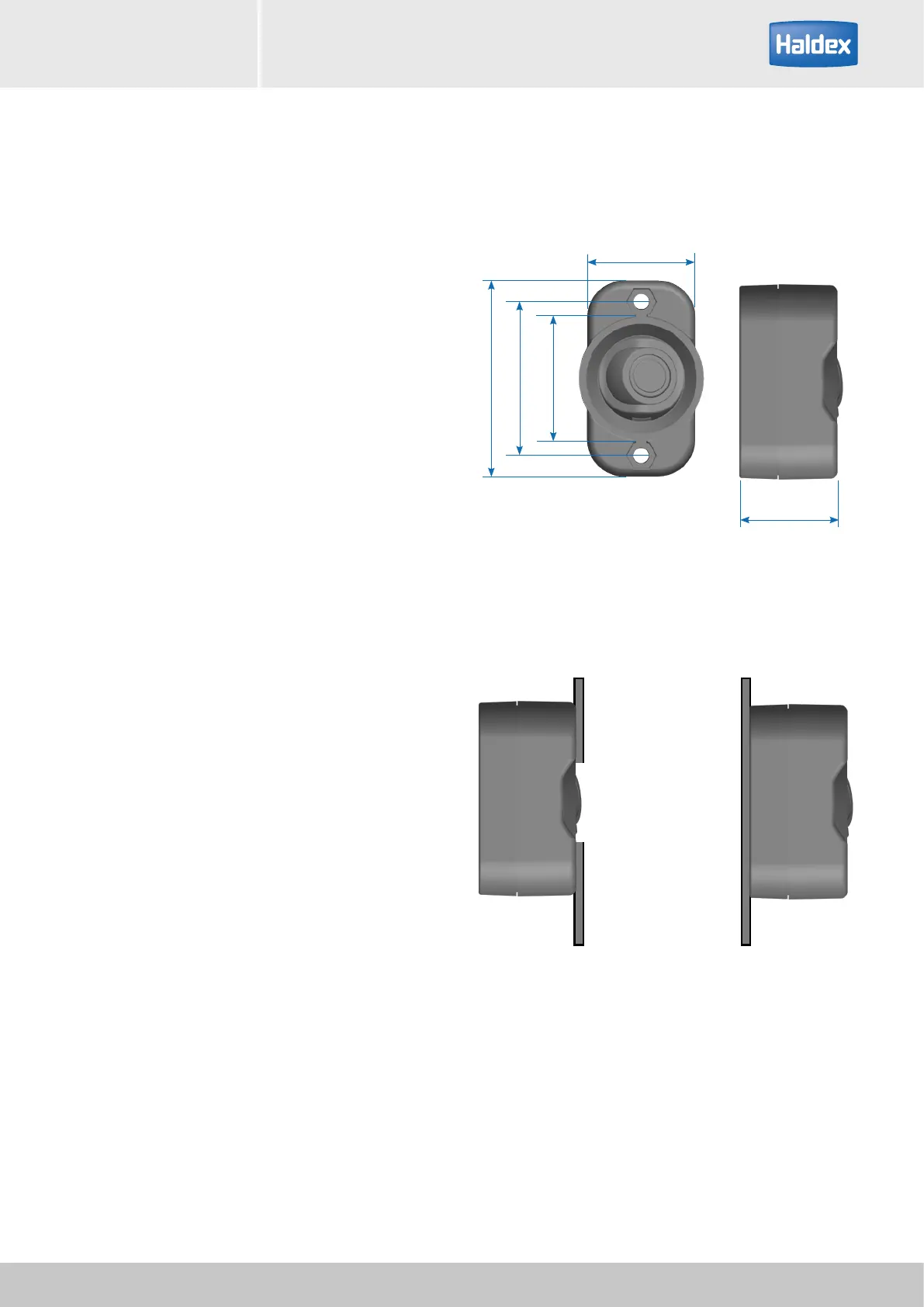

Mounting dimensionsMounting of sensor
Maximum torque : 7.0 N.m
Fixing: M6 stainless steel screw
Obstacle: No obstacle shall be found in a 45° cone.
Mounting Rules :
› Minimum 1 sensor per line (yellow channel and green
channel)
› No connector without any sensor (due to risk of
water ingress)
› Maximum 3 sensors per channel
› Balance the number of sensors between all the
channels : maximum difference of 1 sensor between
each channel
› Maximum of 5 sensors per system
Mounting in front of the trailer plate
Contact between chassis and sensor must be flat.
Ultrasonic concentrator is not required.
Mounting behind the trailer plate
Contact between the chassis and sensor must be flat.
Ultrasonic concentrator is required, if there is a gap
between the sensor and the end of the trailer. A
software offset can be set for these sensors using
DIAG+
Refer to customer drawings for sensor mounting dimensions
