Haldex EB+ Soft Docking - Installing 3-Sensor System Using DIAG+

EB+ Soft DockingInstallation guide
31
2020 Innovative Vehicle Solutions
Step 16:
If no sensor channel offsets are required, go to step 17.
If sensor channel offsets are required, go to step 18.
Step 17:
Proceed to EOLT.
Click on 'green' ticks until you reach 'DIAG+ home
page'
Step 18:

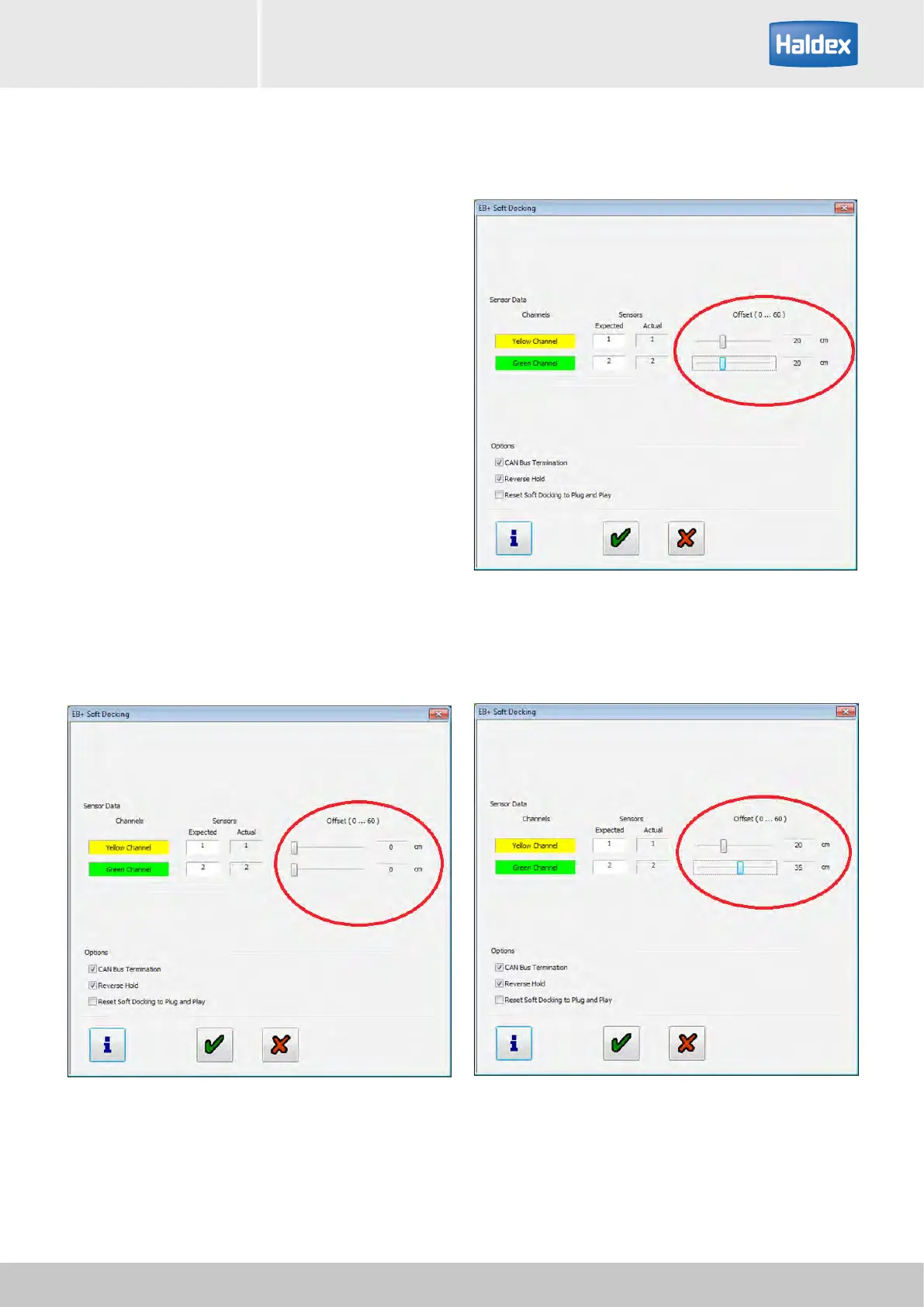

Adjust channel values to sensor installation offset.
Offset example:
Both channels the same value.
Offset example:
Both channels are different values.
