EB+ Soft DockingInstallation guide
53
2020 Innovative Vehicle Solutions

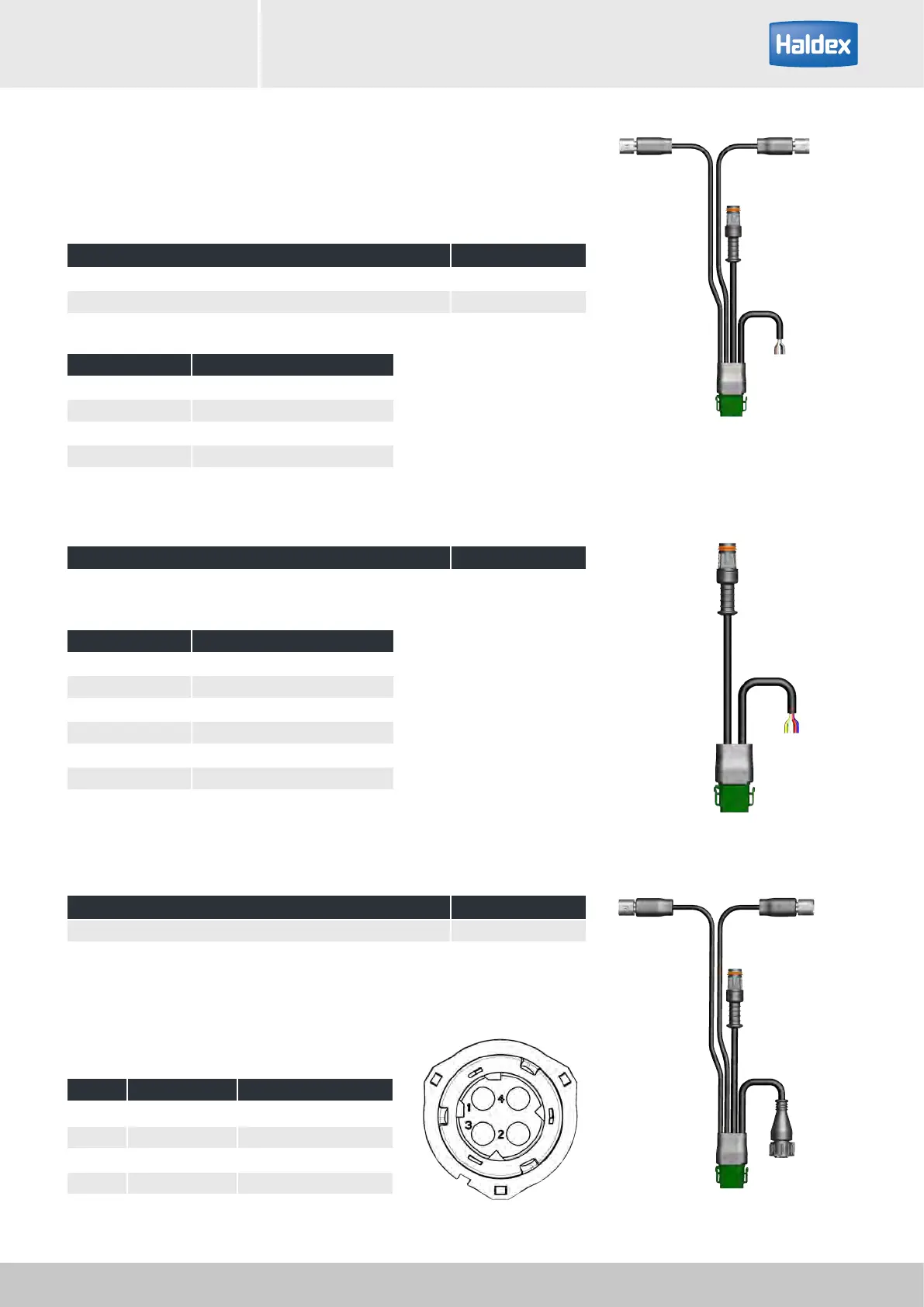

Outline marker lamps and brake cables
Used to connect the EB+ Soft Docking ECU (green connector) to the
EB+ Gen3 and trailer wiring loom.
Outline marker lamps and brake loom Part number
Outline markers with molded marker connectors 364 606 0xx
Outline markers with molded superseal connectors 364 606 1xx
Outline marker lamps / brake loom with DIN Part number
Outline markers with molded marker connectors 364 623 0xx
Outline marker lamps and brake loom Part number
Outline markers and brake 364 610 001
Cable colour Function
Grey Reverse light
White Earth / common
Black Left tail light
Brown Right tail light
Cable colour Function
Grey Reverse light
White Earth / common
Black Left tail light
Brown Right tail light
Blue B- (common return)
Red Light output
Refer to customer drawings for cable dimensions
Refer to customer drawings for cable dimensions
Refer to customer drawings for cable dimensionsDIN connector
Pin Wire colour Function
1 Red Earth / common
2 Blue Left tail light
3 Green Reverse
4 Yellow Right tail light
