Haldex EB+ Soft Docking - Sensors and Audio Beeper Cables

EB+ Soft Docking Installation guide
54
Innovative Vehicle Solutions 2020
Sensors and audio beeper loom Part number
Sensors and audio beeper 364 605 0xx
Sensors with no audio beeper loom Part number
Sensors with no audio beeper 364 625 001

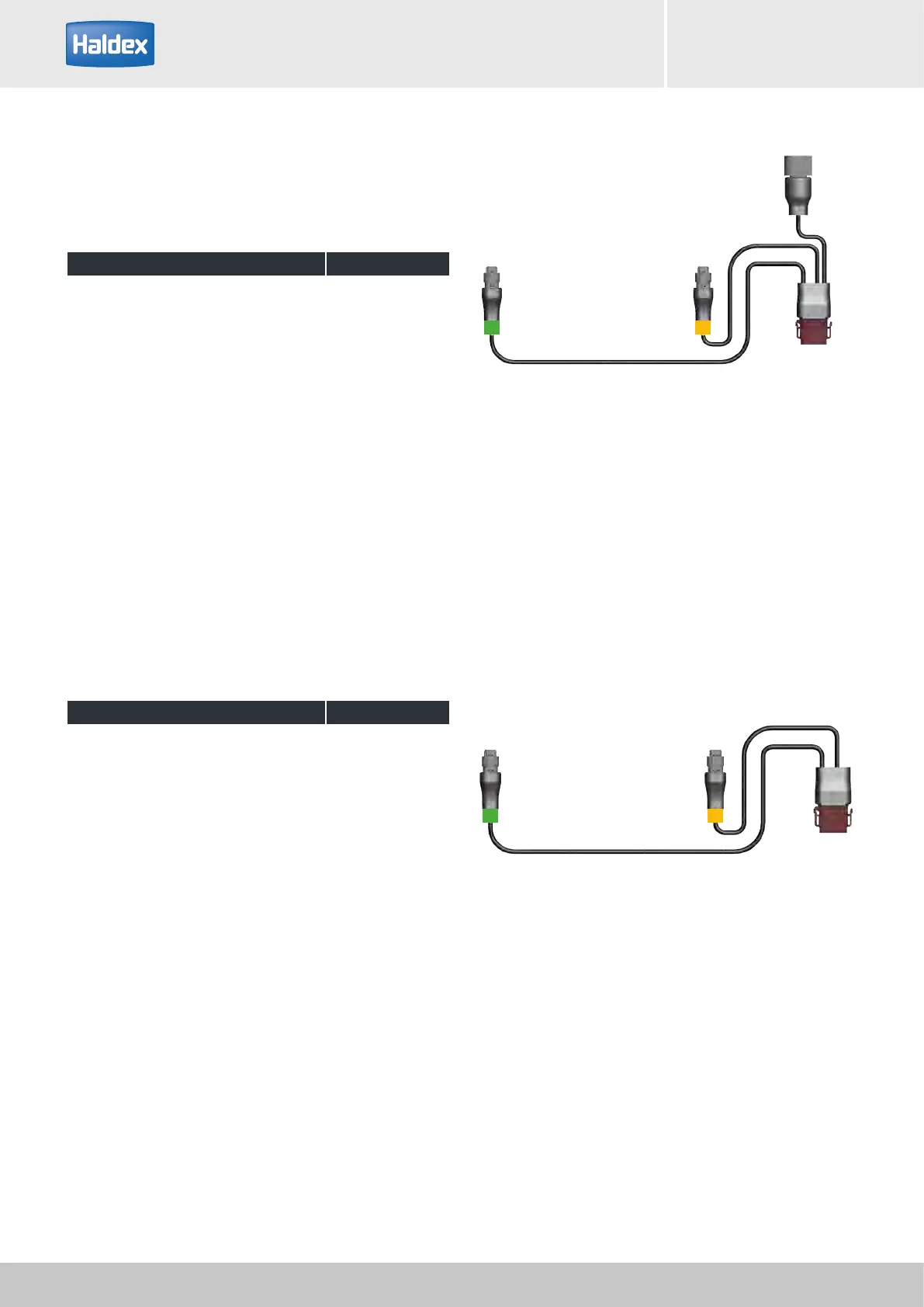

Sensors and audio beeper cables
Used to connect the EB+ Soft Docking ECU (brown
connector) to the sensors and audio beeper.
Refer to customer drawings for cable dimensions
Brown connector
Green sensor
channel
Yellow sensor
channel
Beeper connection
Refer to customer drawings for cable dimensions
Brown connector
Green sensor
channel
Yellow sensor
channel
