*#1 :-Owner’s Manual
10
NAMES AND FUNCTIONS

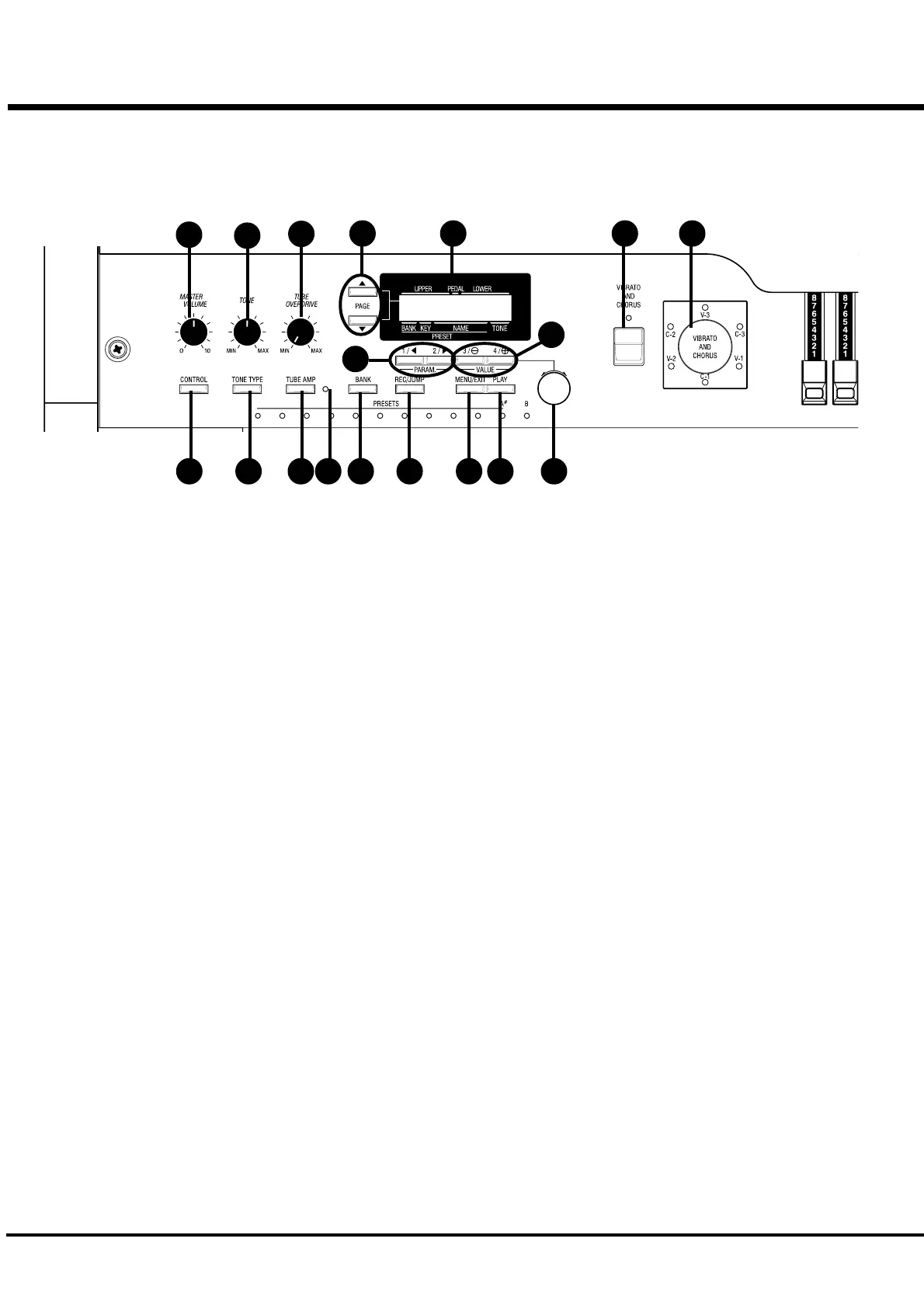

Front Panel
UPPER LEFT
1. MASTER VOLUME Knob
Controls the total volume.
2. CONTROL Button
Sets up various controls.
3. TONE Knob
Controls the tone quality.
4. TONE TYPE Button
Assigns the function of TONE CONTROL (3).
5. TUBE OVERDRIVE Knob
Controls the distortion of TUBE AMP (6).
6. TUBE AMP Button
Switches whether the sound of the Upper/Lower parts
pass the tube amp circuit.
7. TUBE AMP. LED
Indicates the status of the TUBE AMP.
8. BANK Button
Switches Bank by pressing together the bank switch with
the Preset key (37).
CONTROL PANEL
9. DISPLAY
Indicates various information.
10. PAGE Button
Selects Pages.
11. PARAM Button
Selects Parameters.
12. VALUE Button
Increases and decreases the value.
13. VALUE Knob
Adjusts the value.
14. REC/JUMP Button
Records Presets. This is also used to allow you to quickly
page through the various choices within each function.
15. MENU/EXIT Button
Recall the MENU screen. This is also used to return
from each function screen.
16. PLAY Button
Jumps to the PLAY screen, the basic screen.
1
3
5
2 4 6
10
7 8
9
11
12
1314 15 16
17 18
