■ MSR separation
MSR
When reassembling the card reader, you must assemble tightly otherwise the card will not be recognized by the reader.

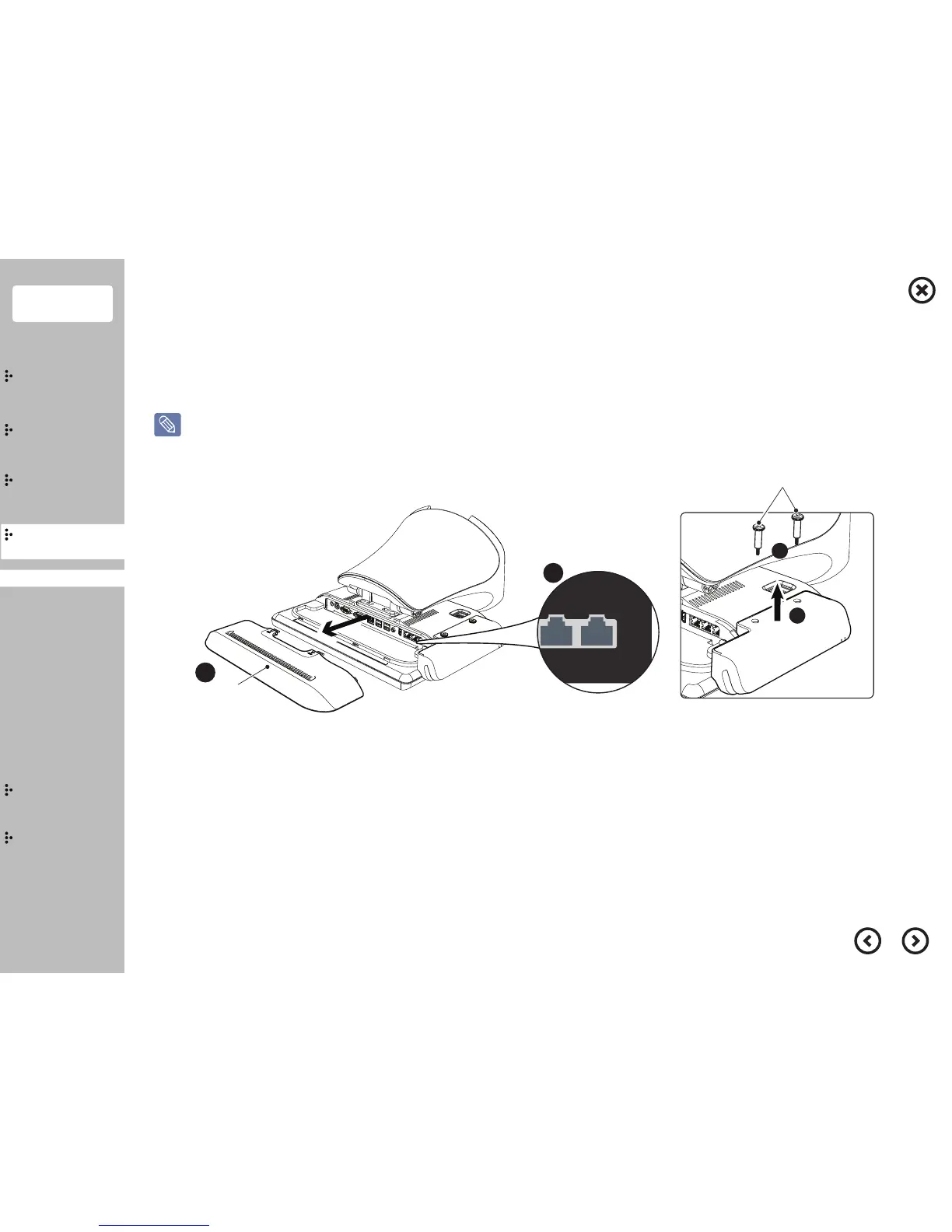

① Separate the cover cable by pushing it upwards.
② Disconnect MSR connector.
③ Remove 2 hand screws.
④ Separate the MSR by pushing it in the direction of the arrow.
