Hanasis HIT - MotherBoard Layout

14
15
16
11
13
12
7
5
6
4
3
2
1
1098

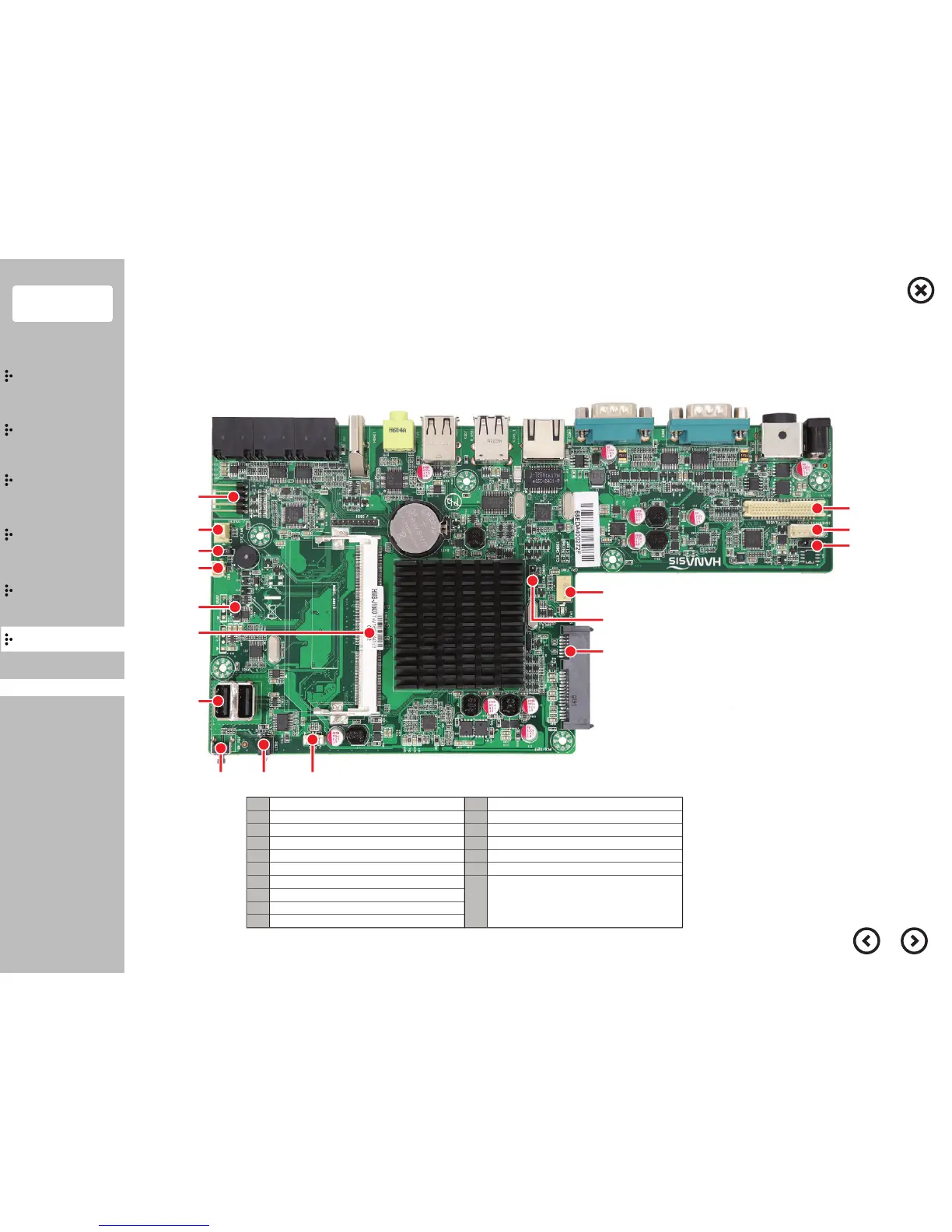

1 Touch Panel Controller Pin Header
2 FAN (System) Connector
3 AT/ATX Mode Jumper
4 Reset Connector
5 USB Pin Header
6 DDR-3 SO-DIMM Socket
7 USB2.0 Connector
8
Power Button
9 Power LED
10 Amplifier Pin Header (Speaker)
11 FAN (CPU) Connector
12 CMOS Clear Jumper
13 SATA Combo Connector
14 LVDS Signal Connector
15 LVDS Backlight Connector
16 LVDS VDD(3.3V/5V) Select Jumper
Mother board Layout
Contents
System
Installation
Using
the product
Assembly &
Disassembly
BIOS
System
Introduction
Appendix
System Block Diagram
MotherBoard Layout
Setting Jumper
I/O Pin Assignment
