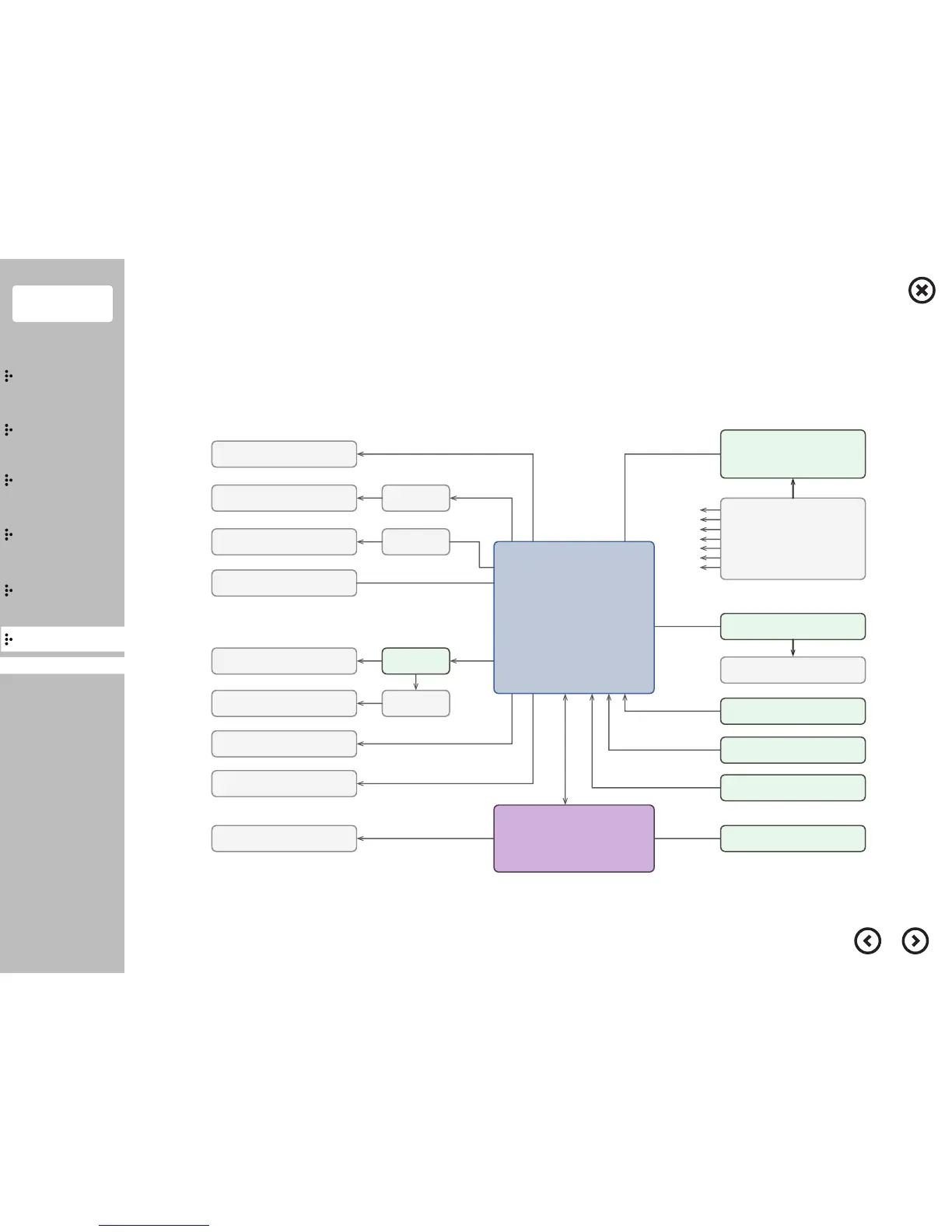

System Block Diagram
VCORE
1.8V
1.5V
3.0V
5.0V
5VSB
3VSB
HDMI
LVDS(2CH/24BIT) PS8625
DDR3L
1333MHz
AUDIO ALC662
AMI BIOS ROM
COIN BAT
LED / BUTTON
COM#1~#5
AUDIO AMP
PWR PART
VCCM
DP
SPIBUS
BACK-UP
LPS
SATA-II
Intel Celeron
BAY-TRAIL
SUPER I/O
IT8786E
USB2.0 X 6ea HUB
USB2.0
USB3.0
SATA-II
USB2.0
USB3.0 X 1ea
USB2.0 X 1ea
FAN(CPU&SYS)
TOUCH (5-wire) EXC7700
LAN GbE(RJ-45) RTL8111F
PCIe
