Puma 20/4046 | Service instructions
4

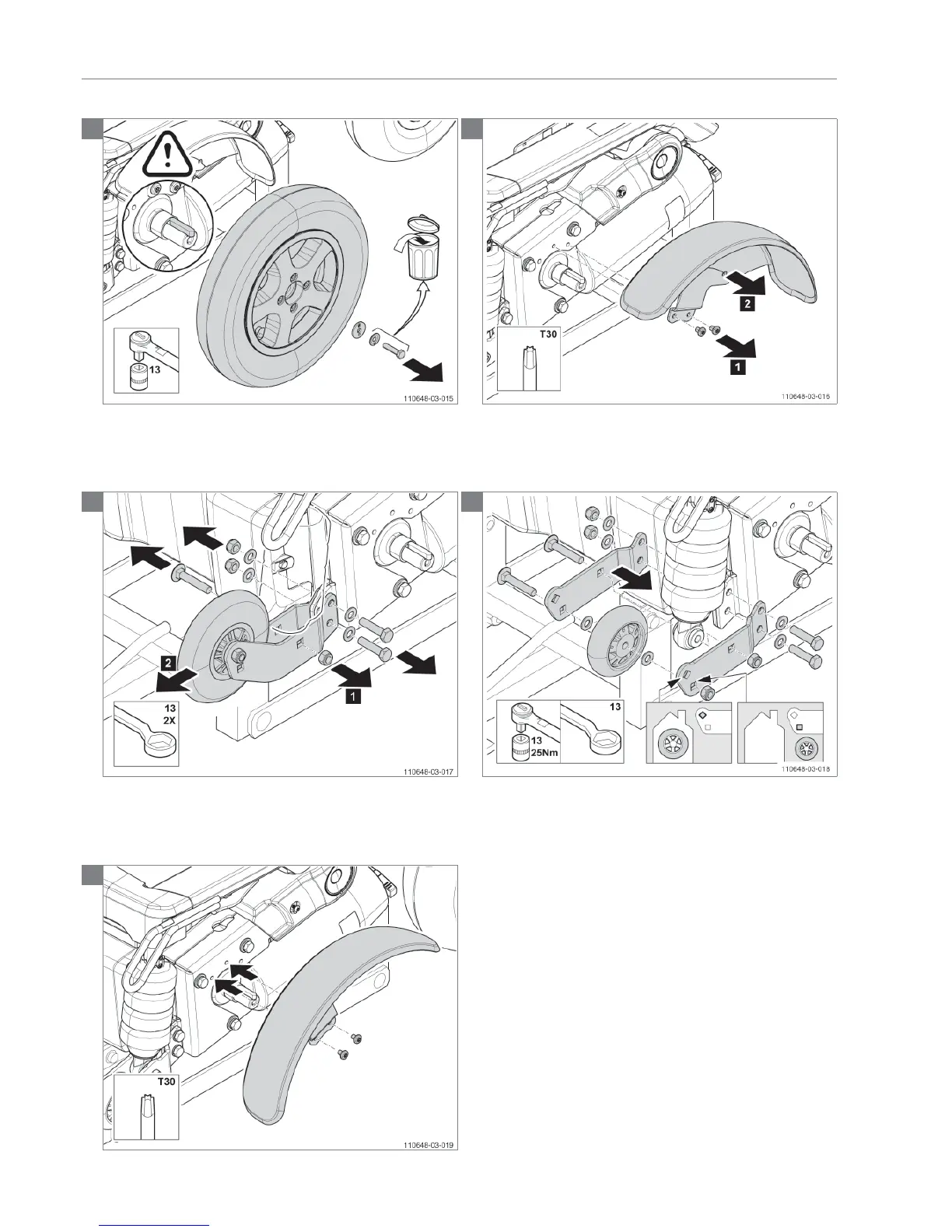

Note! Check the key is still in place!
Note! Dispose the ring and bolt!
5
Note! The Puma 40 has mudguards, take them off!
Step 4 Replace the anti-tip wheels and brackets.
1
Note! Replace the anti-tip wheels and brackets! FWD into
RWD!
2
Note! Use top mounting holes for Indoor anti-tip wheel!
Note! Use bottom mounting holes for Outdoor anti-tip wheel!
Note! Tighten the bolts of the anti-tip wheels and brackets with 25 Nm!
3
