Puma 20/40 Service instructions | 47

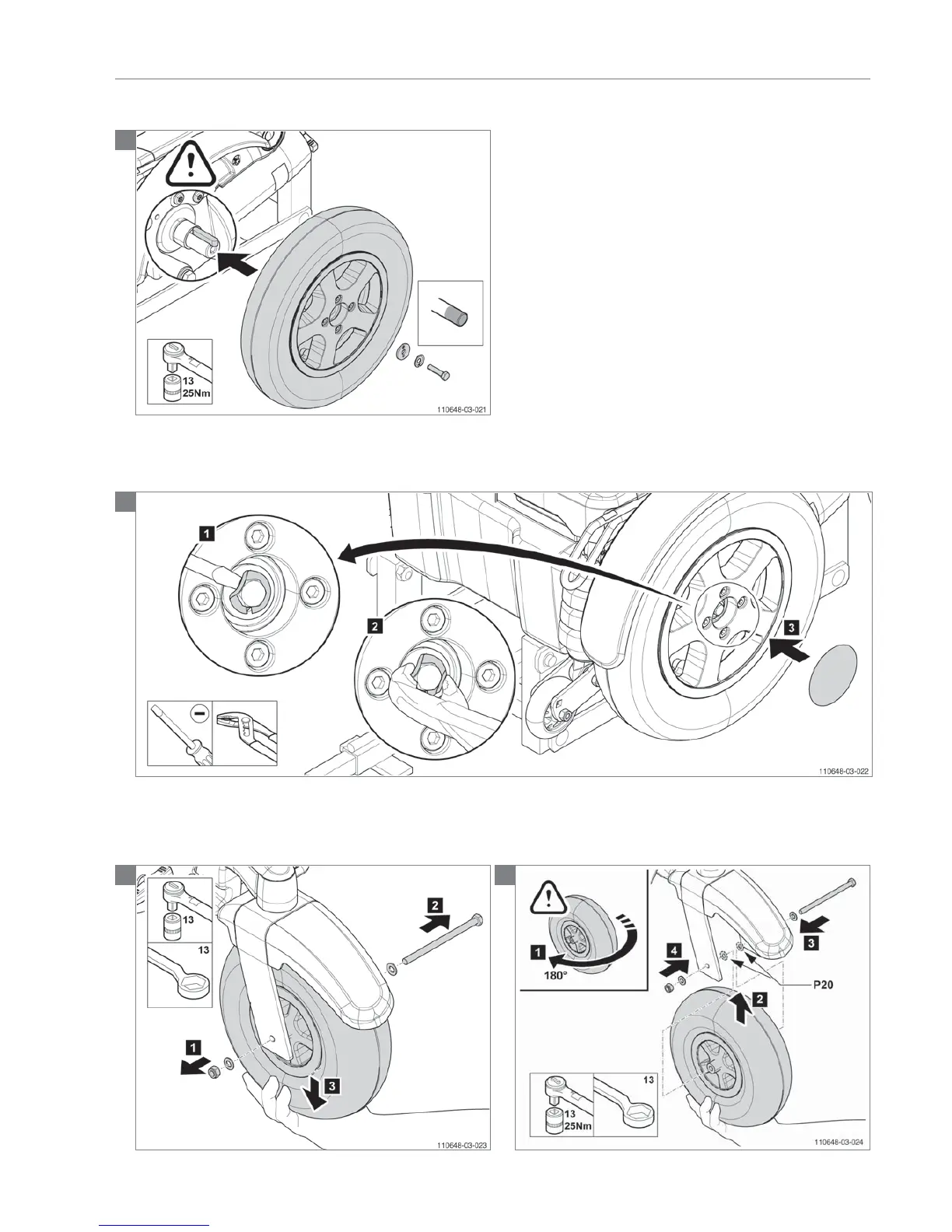

Step 5 Remount the drive wheels.
1
Note! Check the key is still in place!
Note! Tighten the bolts of the drive wheels with 25 Nm!
2
Step 6 Change the position of the castor wheels.
1
2
Note! Tighten the shaft and nut of the castor wheels with 25 Nm!
Caution! Place at the Puma 20 on both sides of the castor wheel
an extra ring between the wheel and the fork!
