7. GETTING STARTED
7.1. INSTALLING THE HOLDER

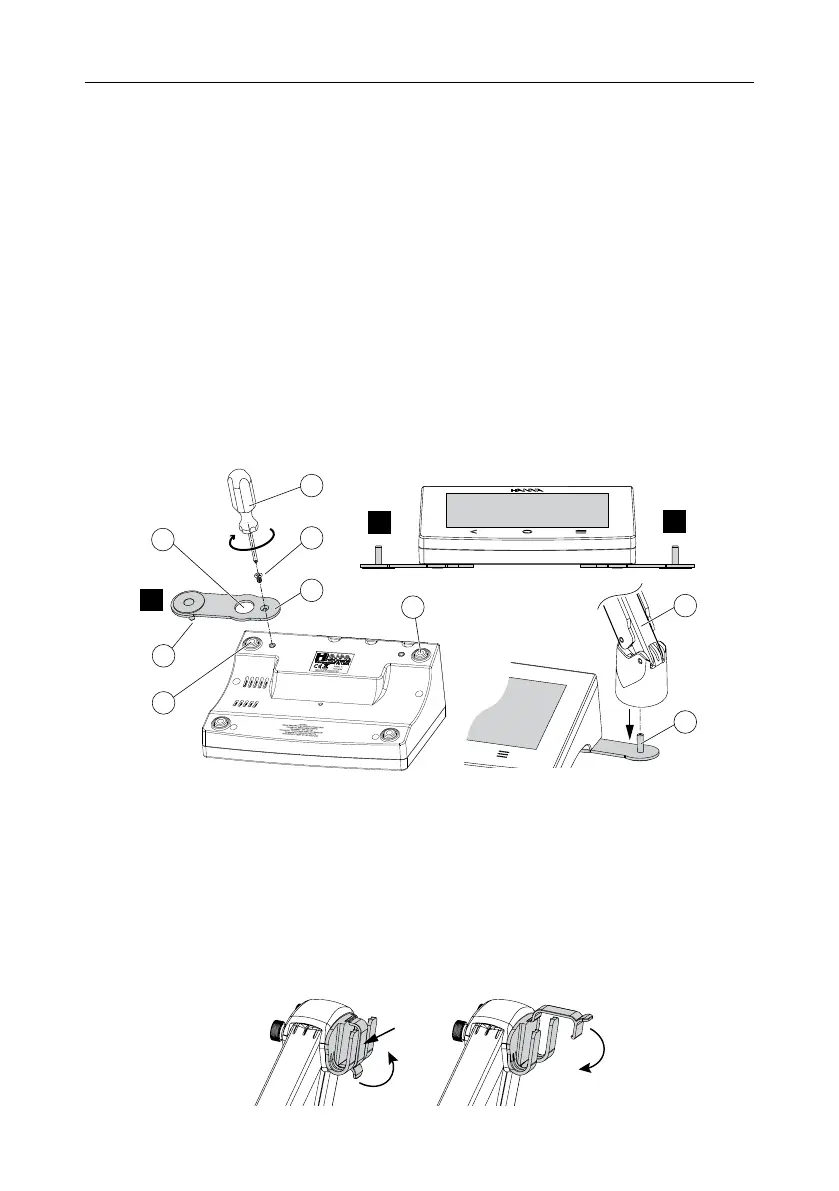

Attaching the base plate
• Take the HI764060 holder from the box.
• Identify the metal base plate (4) with the integrated pivot pin (5) and the screw (2).
• The plate may be attached to either side of the meter, left (L) or right (R).
• Place the meter face down on a clean, dry surface.
•
Align the hole on the base plate (3) over the rubber foot (6R or 6L). The pivot pin (5) should be facing downward.
• Use a screwdriver (1) to tighten the screw (2) and attach the base plate to the meter.
• Position the meter with the display facing up.
• Slide the holder (7) over the pivot pin (5). A “slide in” motion is required to lock the arm into position.
• For increased arm rigidity, tighten the metal knobs on both sides of the holder.
R
R
L
1
2
3
4
5
5
7
6L
6R
Cable holder clip
The holder is delivered with a cable clip (attached) that secures several cables whilst allowing them to move
freely with the arm motion.
1. To open the latch, press the clip inward while pulling up the latch.
2. To close the latch, lower latch over cable and snap closed.
The latch snaps in position and secures the cables inside.
Close clipOpen clip
press
pull
15 Getting Started
