55
MEASUREMENT
12. MEASUREMENT

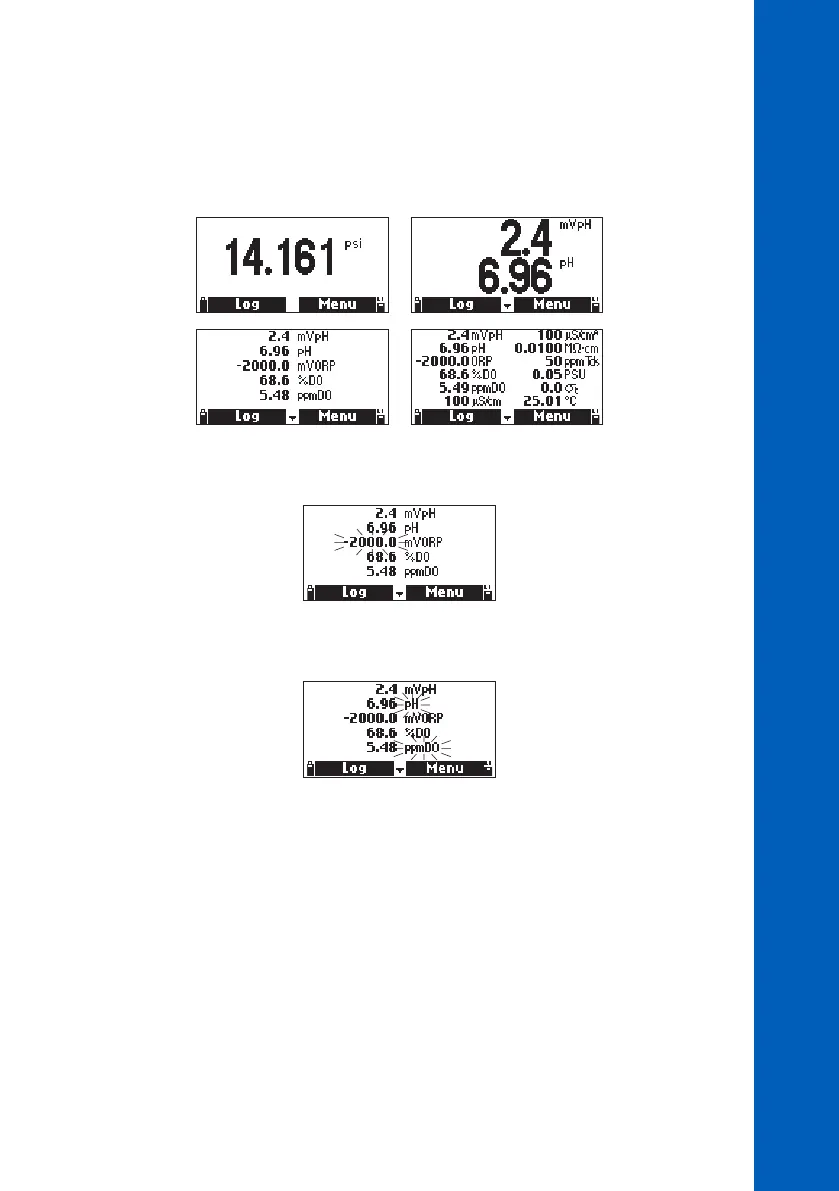

During measurement mode HI98494 will simultaneously measure data for all enabled parameters.
Use the numbers 1 through 7 on the keypad to select the number of parameters that are shown on the
screen at one time. The display will automatically resize the font.
Use the arrow keys to scroll through the enabled parameters if they do not fit on one screen.
A blinking measurement value indicates that the measurement is out of range.
A blinking measurement unit indicates that the user calibration has not been done and is needed for
accurate readings.
