57
LOGGING

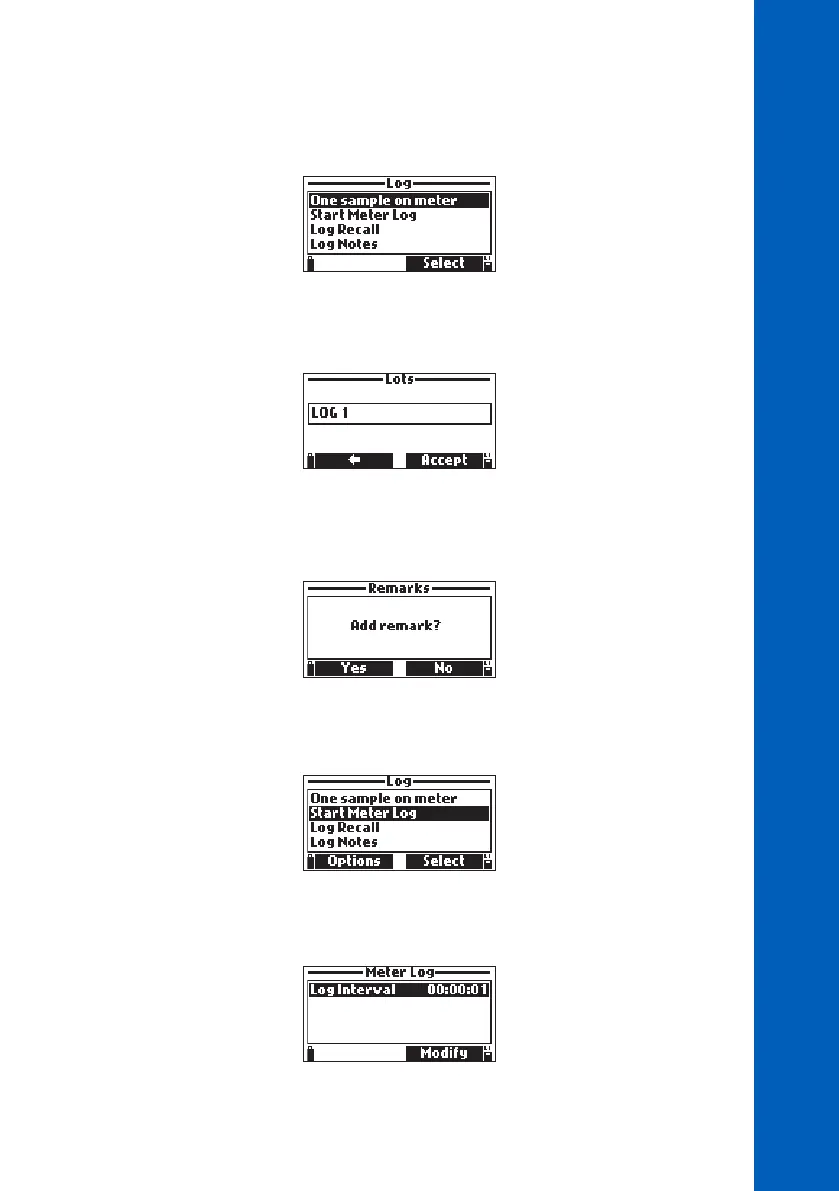

13.1. ONE SAMPLE ON METER
1. Select “One sample on meter” to add one set of enabled measurement parameters to the
meter’s memory.
2. If there are existing lots on the meter, select the lot to log the sample in. If no lots have been
saved or to create a new lot, press New. Use the keypad to enter desired lot name and press
Accept to confirm.
3. Press OK to log the sample in the selected lot.
4. The Remarks window will open, press Yes to add a remark to the data point or No to skip.
The meter will return to the measurement screen automatically.
13.2. START METER LOG
1. Select “Start Meter Log” to log the enabled parameters at the set logging interval on the meter.
2. To set the logging interval, press Options. The log interval time can be set from 1 second to
3 hours. Press Modify and use the alphanumeric keys to enter the desired log interval. Press
Accept to confirm.
3. Press Select to start the logs. Use the keypad to enter desired lot name.
To Next Page
