8 - Technical specifications
8.8
1a 5 S1+ S1+
1b 6 S1- S1-
1c 26 End nozzle L End nozzle L
2a 7 S2+ S2+
2b 8 S2- S2-
2c 25 End nozzle R End nozzle R
3a 9 S3+ S3+
3b 10 S3- S3-
3c 29 +12V sensor +12V sensor
4a 11 S4+ S4+
4b 12 S4- S4-
4c 4 GND1 PWM 1TX
5a 14 S5+ S5+
5b 15 S5- S5-
5c 27 GND2 GND
6a 16 S6+ S6+
6b 17 S6- S6-
6c 13 GND3 Optional 5 Reg. feedback
7a 18 S7+ S7+
7b 19 S7- S7-
7c 33 Option1 4-20mA Option 1 4-20mA
8a 37 3-pos 1a S8+
8b 36 3-pos 1b S8-
8c 32 Option2 Frq Option 2 Frq
9a 35 3-pos 2a S9+/Air angle 0-5V
9b 34 3-pos 2b S9-/Fan speed 0-5V
9c not connected (Option3) Option 3/Tank gauge
10a 21 On/off+ On/off+
10b 22 On/off- On/off-
10c not connected (Option4) PWM Output option
11a 23 Pressure+ Pressure+
11b 24 Pressure- Pressure-
11c 28 Flow Flow
12a 20 FM up Foam blop 0-5V
12b 1 FM dn option 4 Rx
12c 31 Speed Speed
13a 3 FM L FM L
13b 2 FM R FM R
13c 30 Gnd sensor Gnd sensor

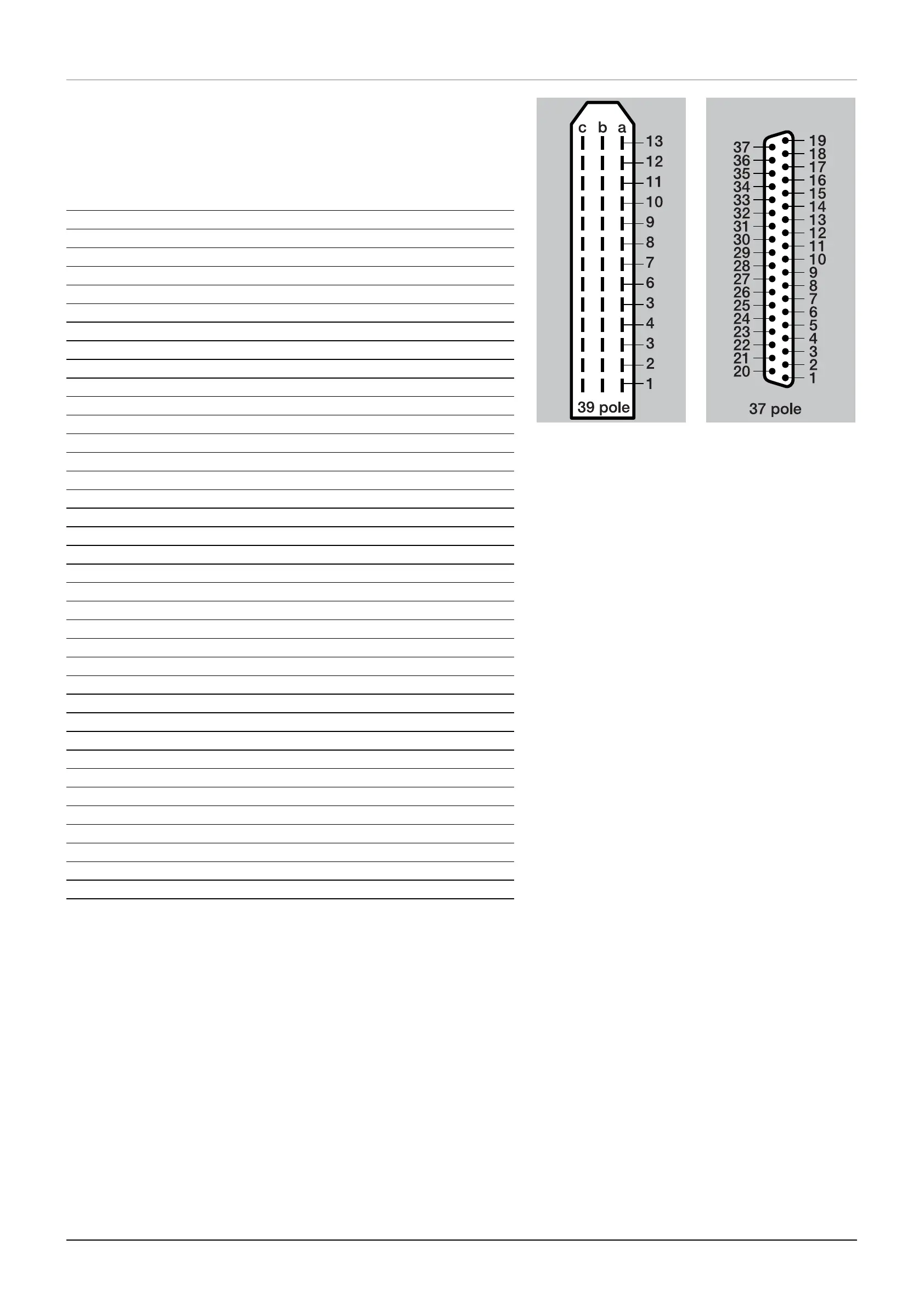

39-pole 37-pole SPRAY SPRAY II
39 or 37 poled plug with cable.
Electrical connections for SPRAY and SPRAY II
