Hardi COMMANDER TWIN FORCE Series User Manual

6 - Maintenance
6.18
DANGER! Never place fingers into open breakaway clutch!
You may be injured if clutch snap closed accidentaly!
WARNING! Do not tighten the breakaway clutch more than
what is necessary. Overtightening can cause damage to the
boom.

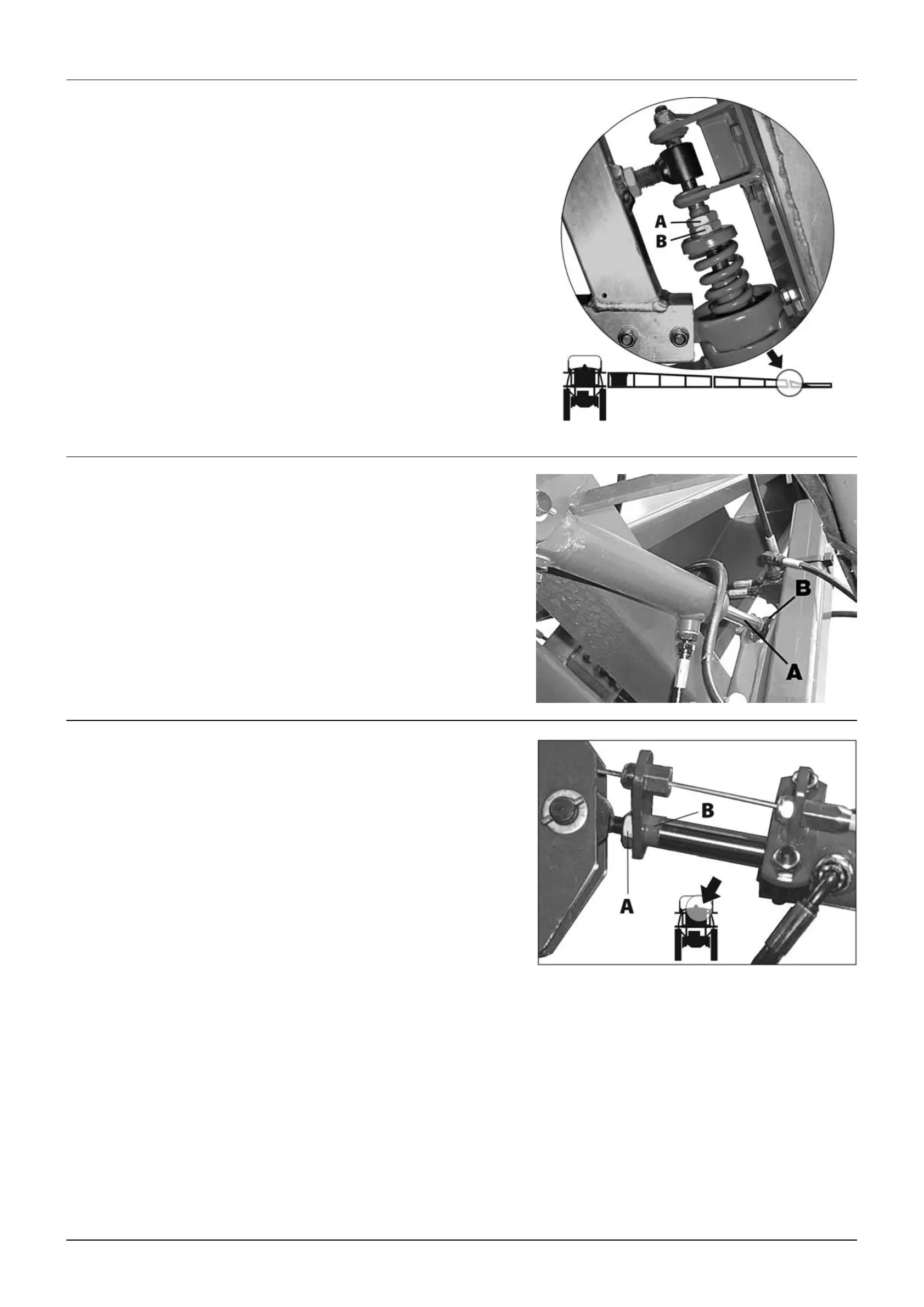

Alignment of neutral position for the entire boom.
1. Place tractor and sprayer on even, flat ground.
2. Unfold the boom.
3. Slanting cylinder: Expose piston rod (A) 90 mm.
4. Adjust hinge ring (B) in/out till boom is horizontal.
Alignment of neutral position for the entire boom.
1. Place tractor and sprayer on even, flat ground.
2. Unfold the boom.
3. Slanting cylinder: Expose piston rod (A) 90 mm.
4. Adjust hinge ring (B) in/out till boom is horizontal.
The breakaway section must release when a force of approximately
150 N (34 lb.) is applied to the extremity of the breakaway section. If
necessary, the release force is adjusted as follows:
1. Make sure that claw coupling is correctly lubricated.
2. Loosen the counter nut (A).
3. Adjust the nut (B) until the breakaway will release at a force of 150
N (34 lb.) applied at the extremity of the section.
4. Tighten the counter nut again.
Hydraulic slanting control adjustment (32-36m)
Hydraulic slanting control adjustment
Breakaway section adjustment (32-36m)
