3 - Description
3.7
ATTENTION! The LookAhead system is only activated if supported by the spray controller.
1. Suction SmartValve
2. Pressure SmartValve
3. Agitation/External Cleaning Device valve
4. Chemical container cleaning grip
5. ChemFiller Vortex nozzle
6. Pump
7. Main tank
8. EasyClean filter
9. Rinsing tank
10. Ejector
11. CycloneFilter
12. Section valves
13. ChemFiller
14. SafetyValve
15. Ejector filling inlet
The system is based on EFC - Electrical Fluid Control. The LookAhead control unit is constructed of modules and is electri-
cally controlled via a remote control box.
The built-in HARDI-MATIC ensures a constant volume per hectare of the liquid (l/ha) at varying forward speed within the
same gear when the number of P.T.O. revolutions are between 300-600 r.p.m. (pump 540 r.p.m) or 650-1100 r.p.m. (pump
1000 r.p.m.).
16. Internal tank cleaning nozzles
17. Agitation
18. Return line for boost function
19. Return from distribution valves
20. Rinsing tank coupler
21. PressureControl valve
22. One-way valve
23. Drain valve
24. Sprayer boom
25. ChemFiller suction ON/OFF valve
26. External fast filling ON/OFF valve
27. Pressure draining coupler
28. External Cleaning Device
29. FastFiller coupler
30. FlexCapacity pump
LookAhead pressure control unit

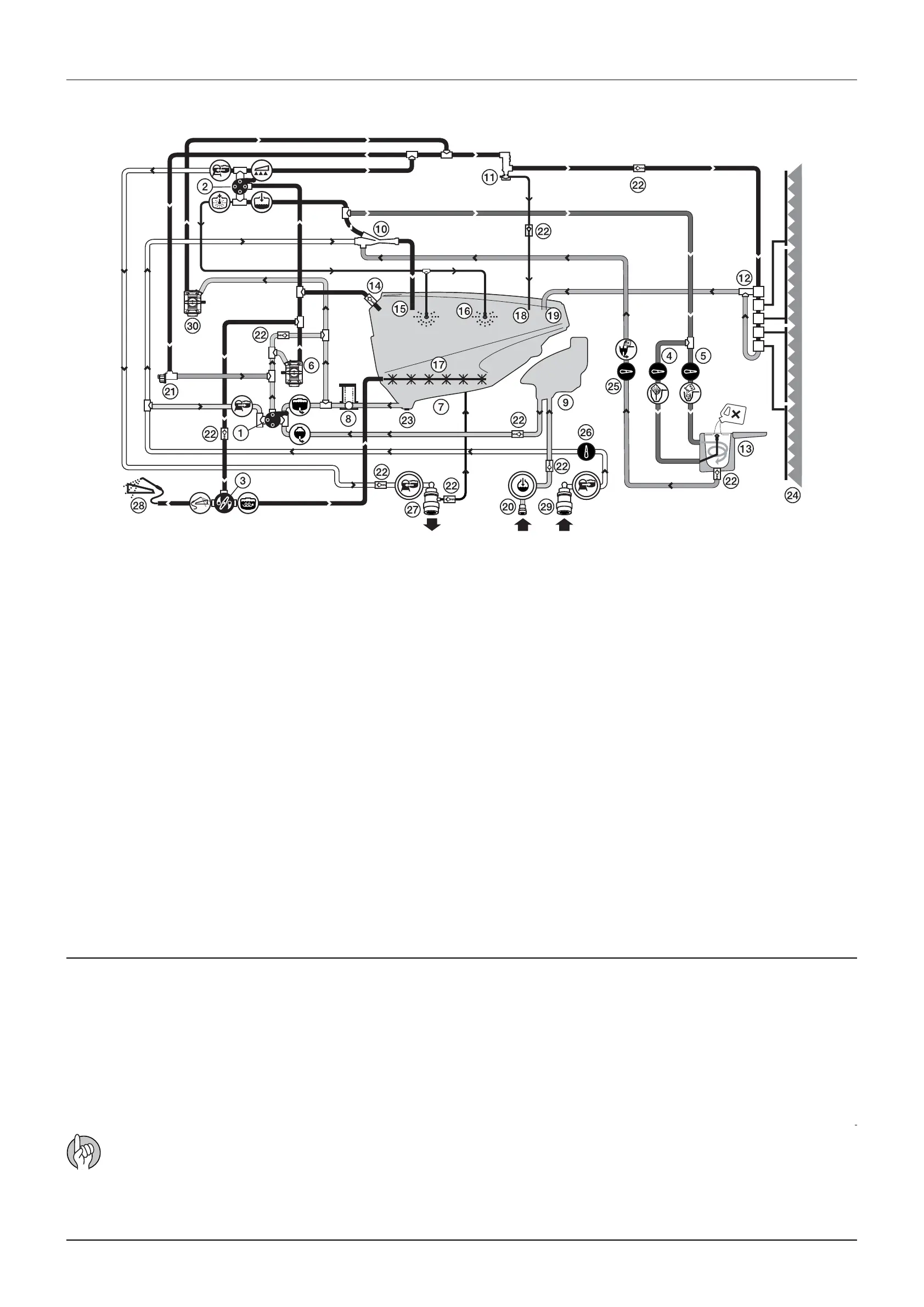

Diagram - Liquid system with FlexCapacity pump and optional extras
