3 - Description
3.6
1. Suction SmartValve
2. Pressure SmartValve
3. Agitation/External Cleaning Device valve
4. Chemical container cleaning grip
5. ChemFiller Vortex nozzle
6. Pump
7. Main tank
8. EasyClean filter
9. Rinsing tank
10. Ejector
11. CycloneFilter
12. Section valves
13. ChemFiller
14. SafetyValve
15. Ejector filling inlet
16. Internal tank cleaning nozzles
17. Agitation
18. Return line for boost function
19. Return from distribution valves
20. Rinsing tank coupler
21. PressureControl valve
22. One-way valve
23. Drain valve
24. Sprayer boom
25. ChemFiller suction ON/OFF valve
26. External fast filling ON/OFF valve
27. Pressure draining coupler
28. External Cleaning Device
29. FastFiller coupler

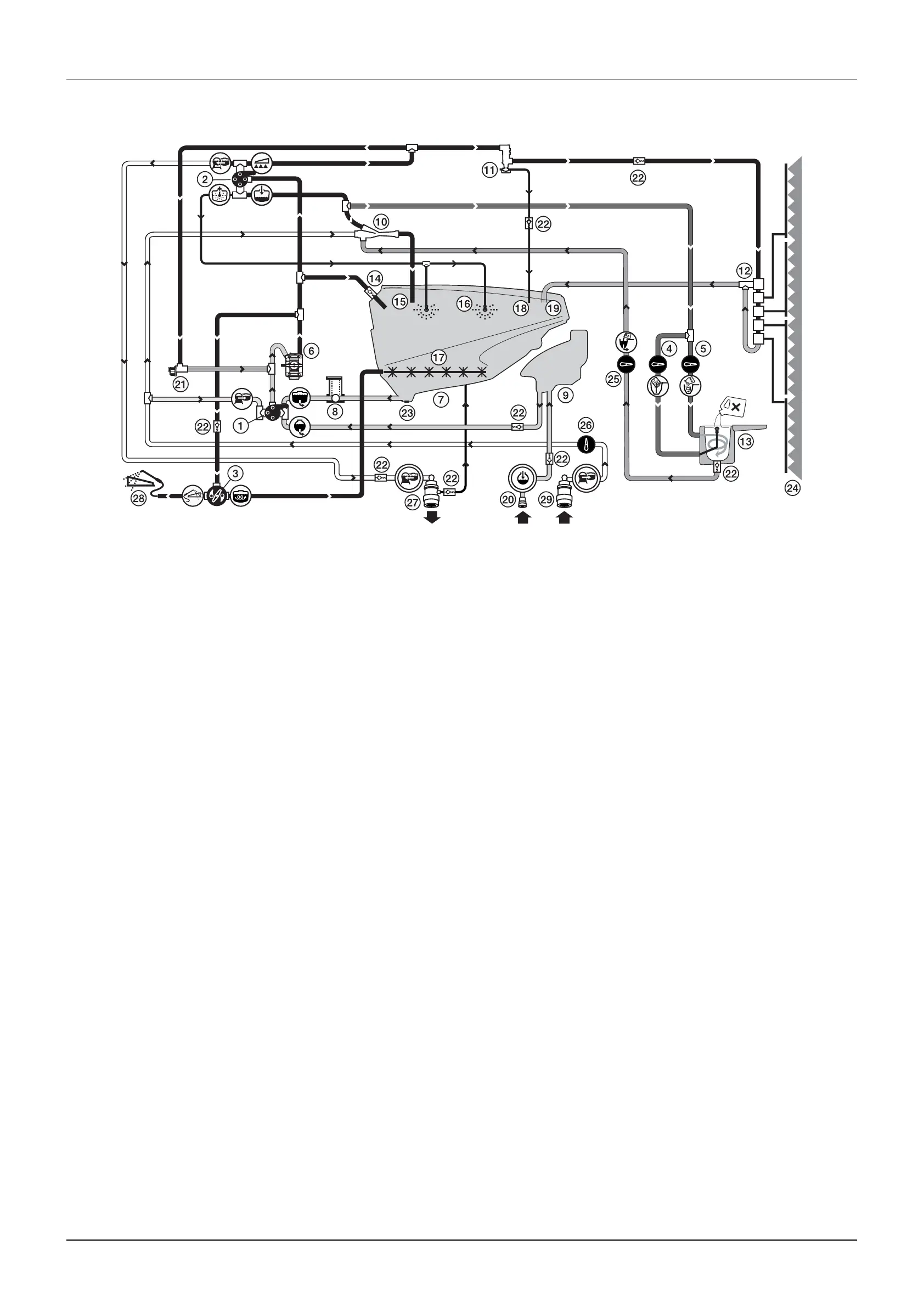

Diagram - LookAhead Liquid system with optional extras
