5 - Operation
5.16
ATTENTION! If the safety valve is activated, then lower P.T.O.
revolutions to avoid rinsing water being lost into main tank.
The boom and work lights selector switch is placed into the SafetyLocker and has three positions:
1. Boom lights ON
2. Lights OFF (neutral position)
3. Work light ON
It is recommended to switch OFF the rear lights of the tractor in order to save power consumption and to avoid reflec-
tion.

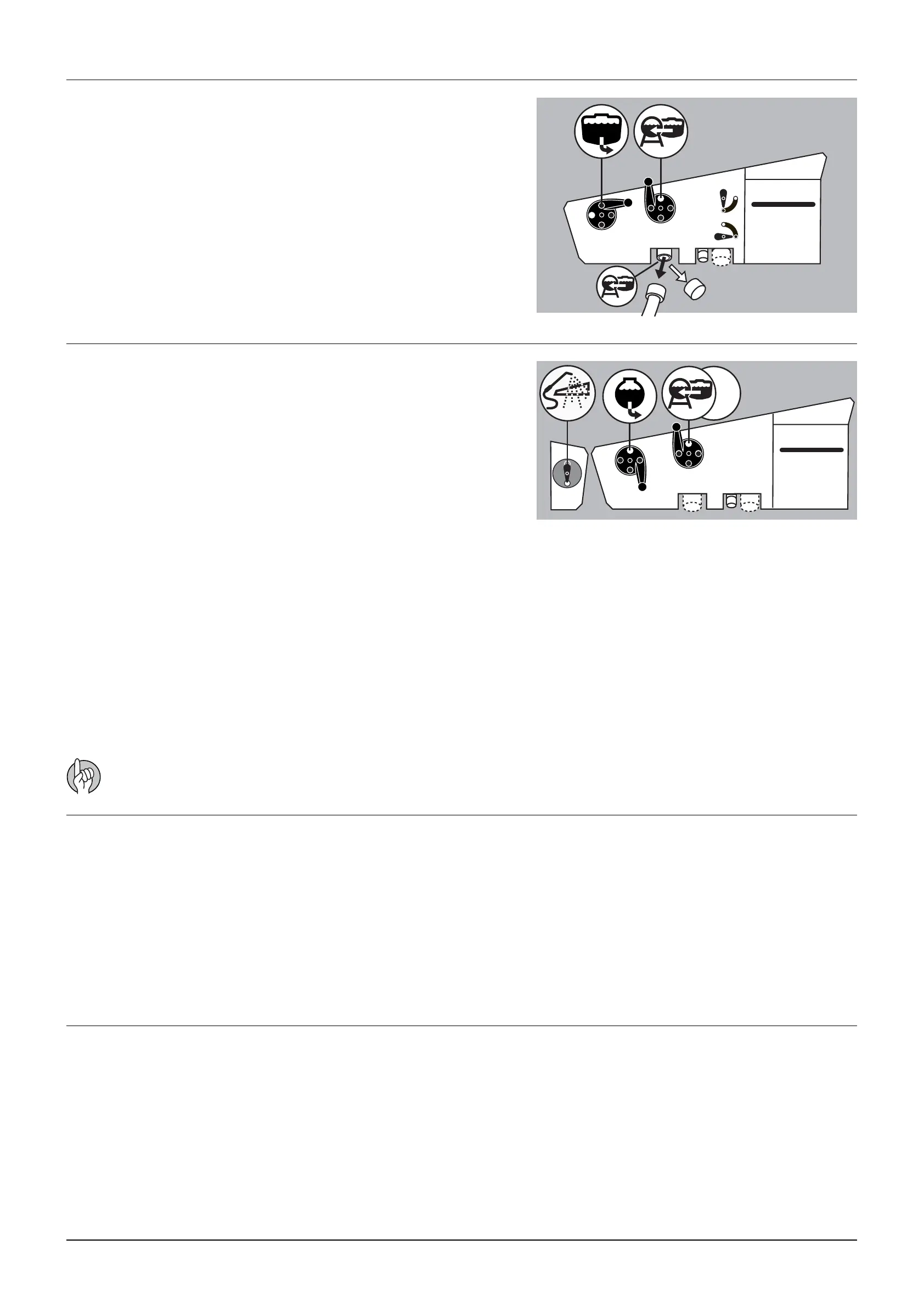

It is possible to drain to an external tank. This is done the following
way:
1. Connect a hose from an external tank to the suction quick coupler
on the sprayer (pressure).
2. Turn the Pressure SmartValve towards “External tank”.
3. Turn the Suction SmartValve towards “Suction from main tank”.
4. Engage the P.T.O to start the pump.
Use the External Cleaning Device to wash everything on the out-
wards side of the sprayer. This prevents contamination of storage
place etc. and let the sprayer last for a longer life.
When the External Cleaning Device is going to be used, then open
the cover on sprayers right side closest to the handbrake. Cleaning
gun is located on the innerside of the cover.
1. Un-roll the hose from the reel.
2. Engage pump at approximately 300 r.p.m.
3. Turn suction SmartValve towards “Suction from Rinsing tank” and
pressure SmartValve towards “External filling device” or not used
function.
4. Turn agitation valve towards “External Cleaning Device” and clean
sprayer.
5. After cleaning then close the agitation valve again.
6. Roll the hose to the reel again and close cover.
Spray Technique - see separate book.
Optional extras - see separate books.
Work light selector switch
Outwards cleaning - Use of External Cleaning Device (optional
equipment)
Pressure draining (optional equipment)
