3 - Description

3.5

1. Suction SmartValve

2. Pressure SmartValve

3. Agitation valve

4. Chemical container cleaning grip

5. ChemFiller Vortex nozzle

6. Pump

7. Main tank

8. EasyClean filter

9. Rinsing tank

10. Ejector

11. CycloneFilter

12. Section valves

13. ChemFiller

14. SafetyValve

15. Ejector filling inlet

16. Internal tank cleaning nozzles

17. Agitation

18. Return line for boost function

19. Return from distribution valves

20. Rinsing tank coupler

21. PressureControl valve

22. One-way valve

23. Drain valve

24. Sprayer boom

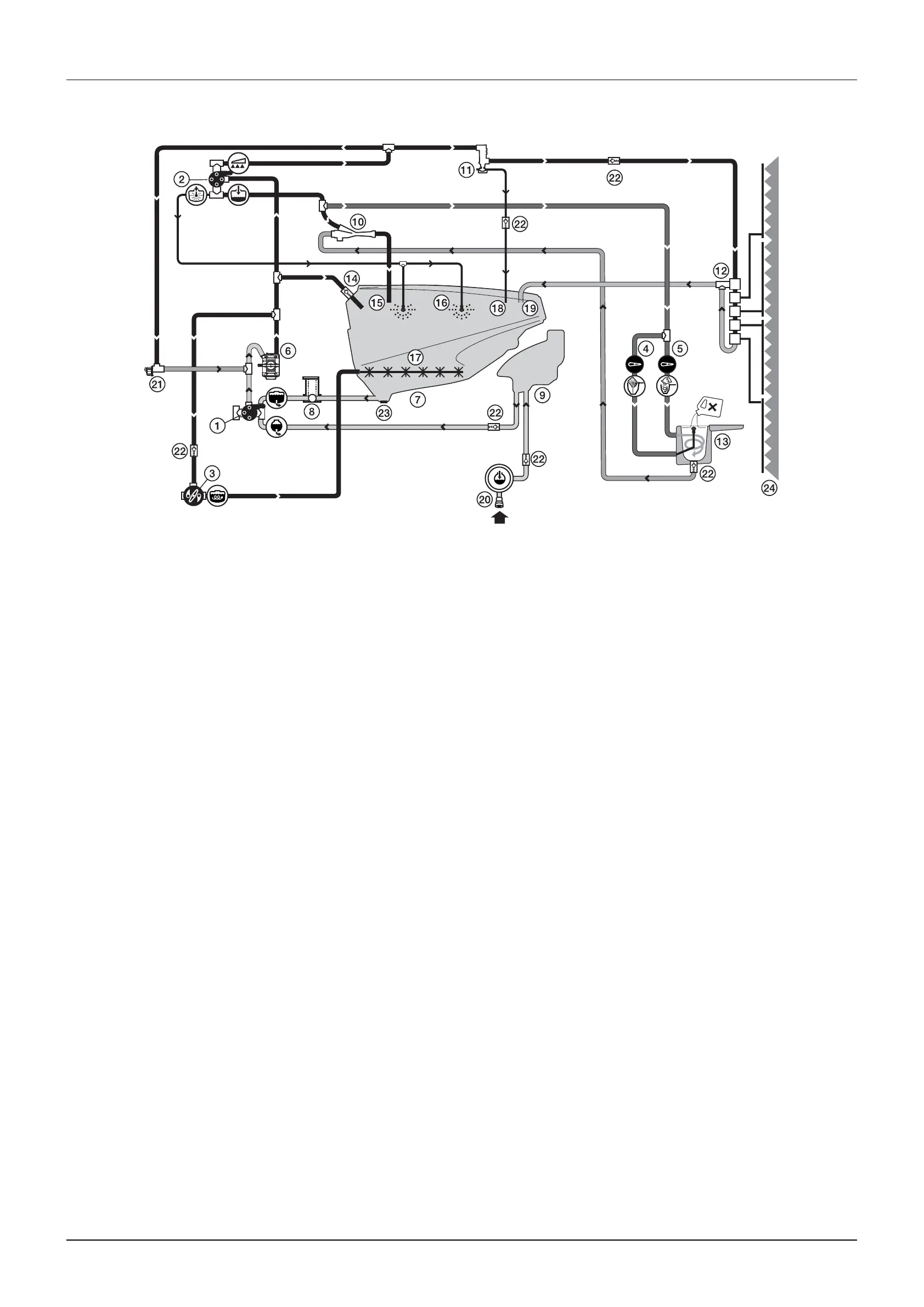

Diagram - LookAhead Liquid system
