8 - Technical specifications
8.1
Dimensions
Weight at drawbar: 500 1350 700 2100 1220 3200
Weight on axle: 3000 6000 3920 7800 4620 10600
Weight total: 3500 7350 4620 9900 5840 13800
*Weights with empty tank
**Weights with full tank
All weights in Kilograms (Kg.)
11.2x48” 1500-2000 mm 1800-2250 mm 345 mm 700 mm
12.4x46” 1500-2000 mm 1800-2250 mm 345 mm 705 mm
12.4x52” 1500-2000 mm 1800-2250 mm N/A 790 mm
13.6x48” 1520-2000 mm 1800-2250 mm 345 mm 735 mm
18.4x38” N/A 1800-2250 mm 590 mm 675 mm
20.8x38” N/A 1800-2250 mm 590 mm 695 mm
20.8x42” N/A 1800-2250 mm 590 mm 780 mm
650/65x42” N/A 1800-2250 mm 590 mm 780 mm
*under axle
3200* 3200** 4400* 4400** 6600* 6600**
Wheel Short axle Long axle Mudguards Clearance*
A B C1* C2** D E F
Weight

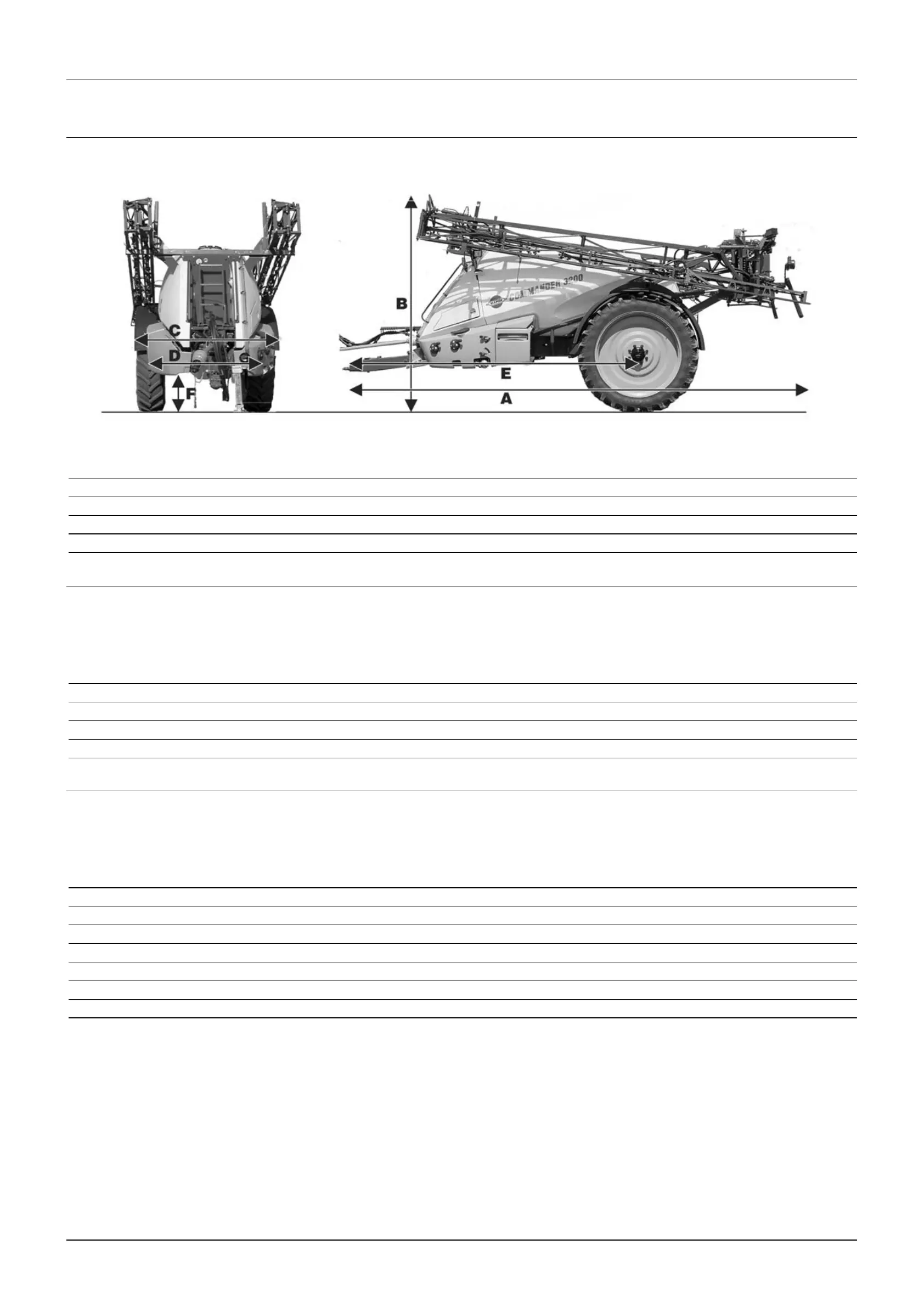

Wheel and axle dimensions
Overall dimensions
3200 7.30 3.60 2.55 3.00 1.50 to 2.25 4.80 0.8
4400 7.80 3.60 2.55 3.00 1.50 to 2.25 5.30 0.8
6600 8.50 3.80 N/A 3.00 1.80 to 2.25 6.05 0.78
*DELTA boom
**FORCE and TWIN FORCE boom
All measures are in metres.
