5 - Operation

5.9

ATTENTION! The scale in the hopper can only be used if the sprayer is parked at level ground! It is recommended

to use a measuring jug for best accuracy.

9. When the spray liquid is well agitated, turn handle on the pressure

SmartValve towards “Spraying” position. Keep P.T.O. engaged so the

spray liquid is continuously agitated until it has been sprayed on the

crop.

11. When the spray liquid is well agitated, turn handle on the pressu-

re SmartValve towards “Spraying” position. Keep P.T.O. engaged so

the spray liquid is continuously agitated until it has been sprayed on

the crop.

4. Open the ChemFiller suction valve and the External Filling Device

valve.

5. Open ChemFiller lid and engage the hopper rinsing device by

opening the ChemFiller Vortex nozzle.

6. Meanwhile keeping an eye to main tank level indicator, then mea-

sure the correct quantity of chemical and fill it into the hopper.

7. The chemical is being transferred to the main tank. If not then

partly close the External Filling Device valve to increase vacuum at

the ChemFiller suction. This could be the case if filling from high pla-

ced external tank or when having syphon effect.

8. When the chemical container is empty it can be rinsed by the

Chemical Container Cleaning device. Close ChemFiller Vortex nozzle

and place the container over the multi-hole nozzle and press the

lever behind the ChemFiller.

9. Close External Filling Device valve when main tank is full.

10. Close the ChemFiller suction valve and the ChemFiller lid again.

As the water from the External Filling Device is transferred directly to

the ChemFiller Vortex nozzle and Container Cleaning, the advantage

in using this filling method is that the ChemFiller always will be

clean and safe after use.

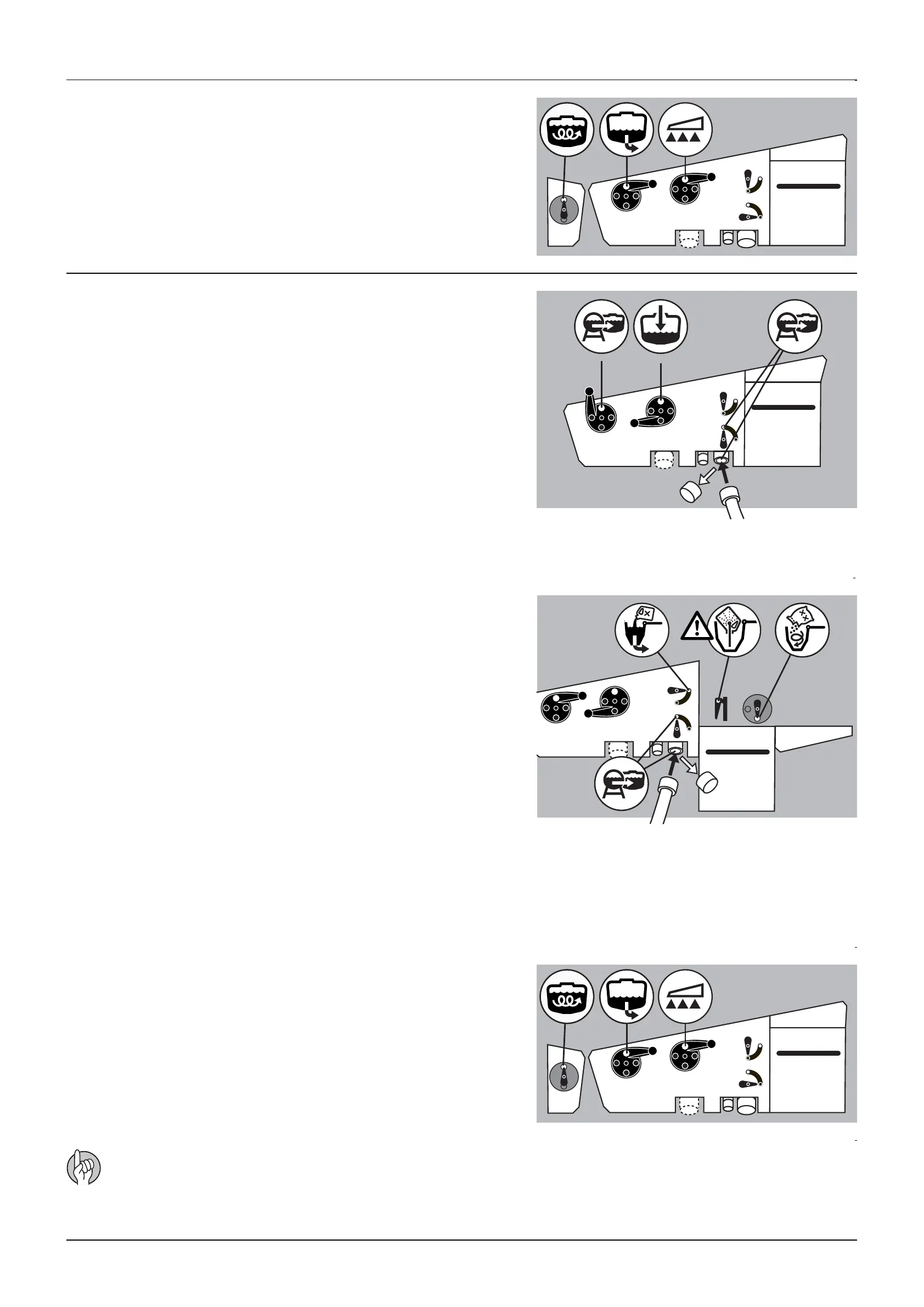

1. Turn the handle at the suction SmartValve towards “suction from

External Filling Device”. Turn Pressure SmartValve towards “Main tank”

and the AgitationValve towards “Agitation”. Other valves closed.

2. Connect external suction hose to the External Filling Device coup-

ler.

3. Engage the pump and set P.T.O. speed at 540 r/min or 1000 r/min

(depending on pump model).

Filling by simultaneously use of ChemFiller and External Filling

Device
