5.1

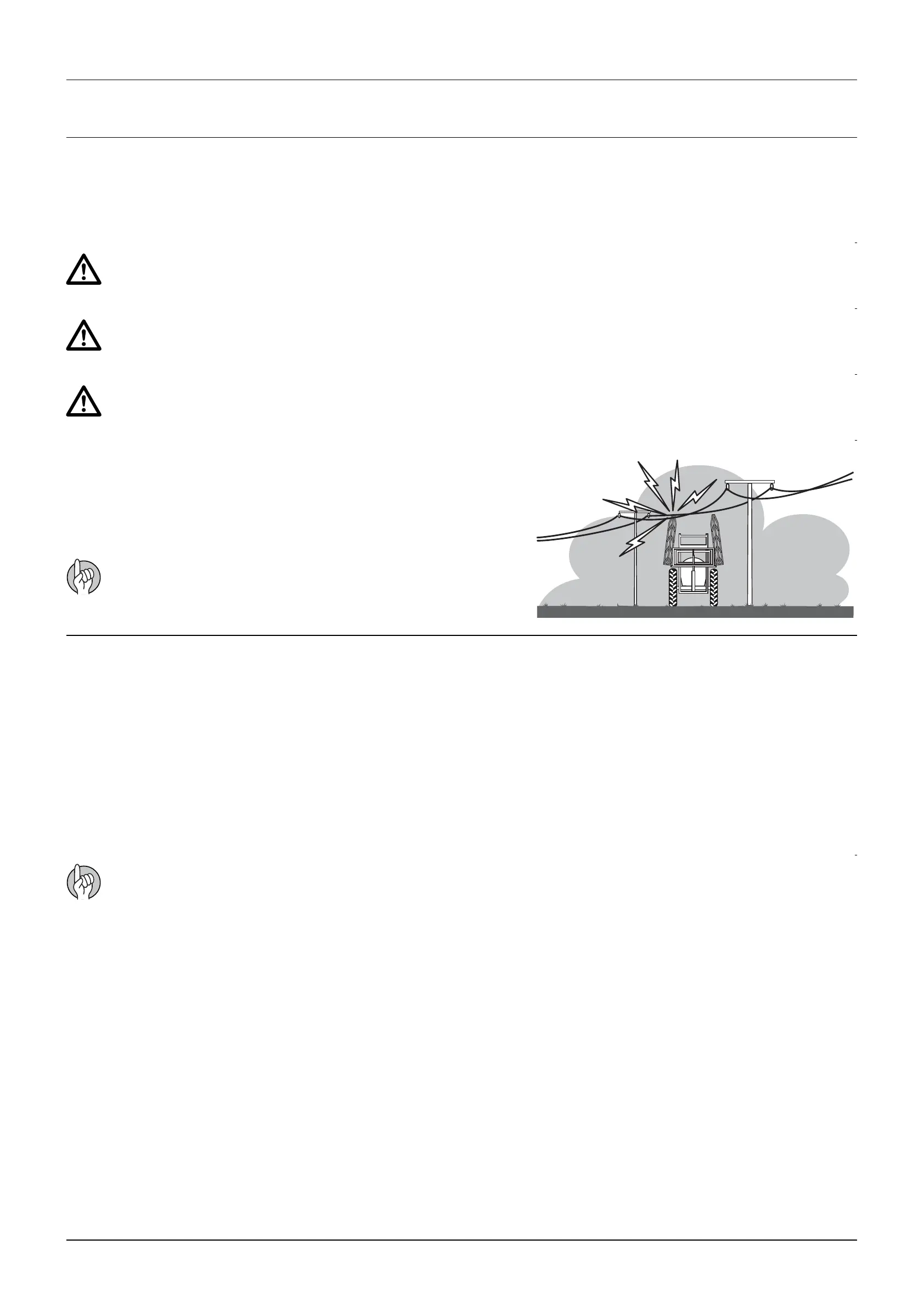

DANGER! Before unfolding the boom it is important to connect the sprayer to the tractor to prevent overbalancing
of the sprayer.
DANGER! When folding or unfolding the boom, make sure that no persons or objects are in the operating area of
the boom.
DANGER! Always follow the guidelines listed below when driving in areas with overhead power lines:
ATTENTION! Only unfold and fold the boom on level ground.
The boom must not be folded/unfolded while driving! Never use the folding/unfolding functions before sprayer has
been stopped! Failure to do so will cause damage to the boom.
Never use the folding/unfolding functions in areas with overhead
power lines.
Unintended boom movements can cause contact with overhead
power lines.
The boom unfolding/folding can be done according to instructions below.
1.Lift up the boom lift until the boom is clear of the transport brackets using the single acting hydraulic outlet lever.
2.Unfold the boom completely using the double acting hydraulic outlet lever.
3.Lower the boom to correct working height above the ground/crop 50 cm/20 in.
4. Release the pendulum lock on the spraybox switch.
Folding is to be done in reverse order (Pendulum must be locked before folding).
ATTENTION! A label (ref. no. 978448) follows the sprayer. This
label must be placed in the cabin at a place visible from the
operators seat.
Manoeuvring of the boom - HAY
Safety info
Boom
5 - Operation
