4 - Sprayer setup
4.13
ATTENTION! Always use both bolts to assemble the lock. The
setting must be identical on both sides.
ATTENTION! The rear settings must correspond to the front
settings so the boom is resting on the front as well as rear
brackets.
WARNING! The max. transport height must never exceed 4.0
m (13.1 ft.). Always measure the actual total height and choo-
se settings not exceeding 4.0 m.
The transport position can be set independently to obtain different
transport heights.
To change position:

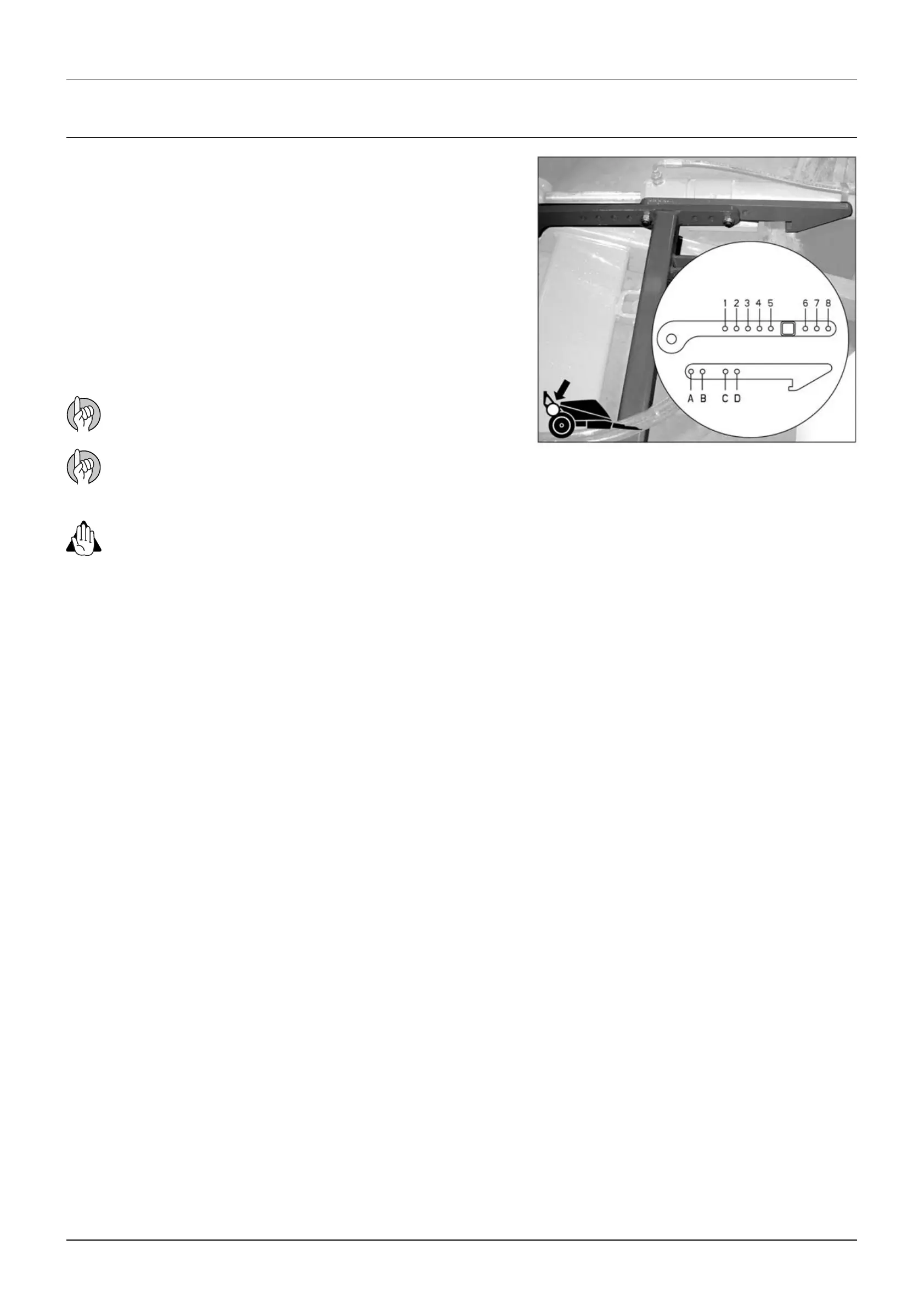

1. Lift and unfold inner sections till lock is disengaged.
2. Lower the boom completely.
3. Loosen and remove the two bolts, which keep the parts (X) and
(Y) assembled.
4. Reassemble (X) and (Y) according to desired hole combination.
Transport lock
Transport
