3 - Description
3.10
DANGER! Do not press lever unless the multi-hole nozzle is covered by a container to avoid spray liquid hitting the
operator.
Chemical container cle-
aning
External Filling Device

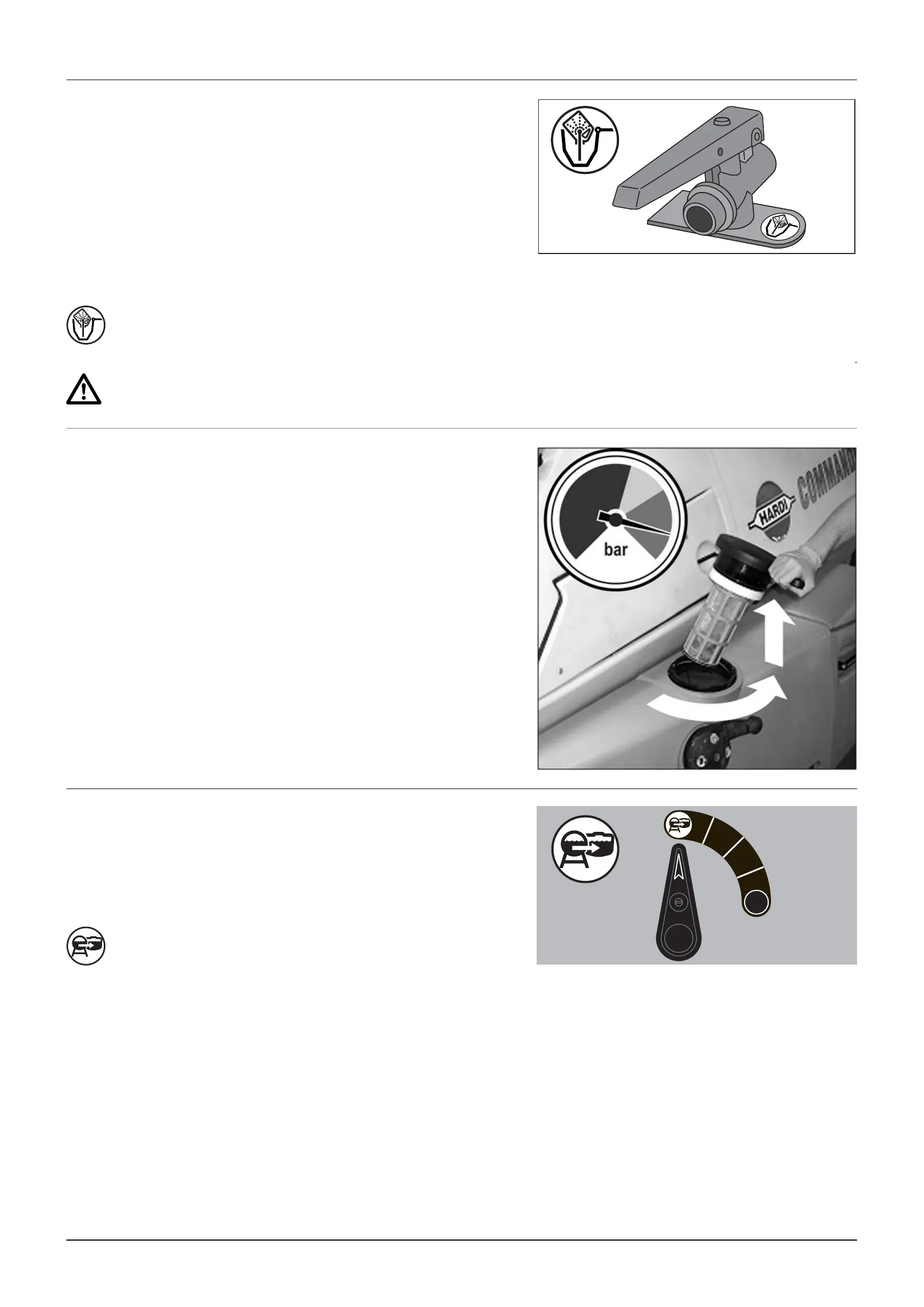

The EasyClean filter is fitted in the working zone near the Smart
Valves. It has a built-in valve that automatically closes when the filter
is opened for inspection and cleaning. To open filter then turn it
counterclockwise and pull it up, like shown on picture.
Beside the spray pressure gauge on the platform a EasyClean clog-
ging indicator is located.
Green indicator: No cleaning necessary.
Yellow indicator: It is possible to finish an ongoing spraying job and
then clean filter afterwards.
Red indicator: Clean EasyClean filter immediately as filter is clogged.
The grip are used for two purposes:
When ChemFiller lid is open: For cleaning empty containers. Put con-
tainer over the flushing nozzle in the middle of the ChemFiller so that
the nozzle is inside the container. By squeezing the Chemical
Container Cleaning grip the flushing nozzle in the middle of the
ChemFiller is activated.
When ChemFiller lid is closed: Use the Chemical Container Cleaning
grip to rinse the hopper after filling of chemicals has ended.
The valve is used when filling from an external tank or reservoir.
Activating valve starts/stops the filling proces. Note that suction
SmartValve must be positioned at “Suction from Main tank” or “suction
from an external source” to make the valve work.
External Filling Device valve - Red labels (optional equipment)
EasyClean filter
Chemical container cleaning grip - Yellow label
