DANGER! Suction SmartValve must always be turned to the
unused position and turn the pressure SmartValve to “Main
tank” (both levers pointing forward) before opening the
Cyclone filter! If not then spraying liquid can hit you when
opening the filter and drain from the tank!
This filter has a clogging indicator as mentioned in the “Description”
chapter, but even if this indicator does not show clogging it should
be cleaned every 10 hours.
To service the EasyClean filter:
1. Turn the filter lid counter clockwise to open.
2. Lift out lid and filter from filter housing.
3. Seperate filter element from lid/filter guide.
4. Clean filter and if necessary clean the housing for larger impurities.
To reassemble:
1. Grease the O-ring on the filter lid.
2. Press the filter onto filterguide/lid and be sure it has cached the
guides.
3. Lift filter/filter lid into housing and be sure it has cached the gui-
des in the bottom of housing.
4. Turn filter lid clockwise to close lid and open bottom valve again.

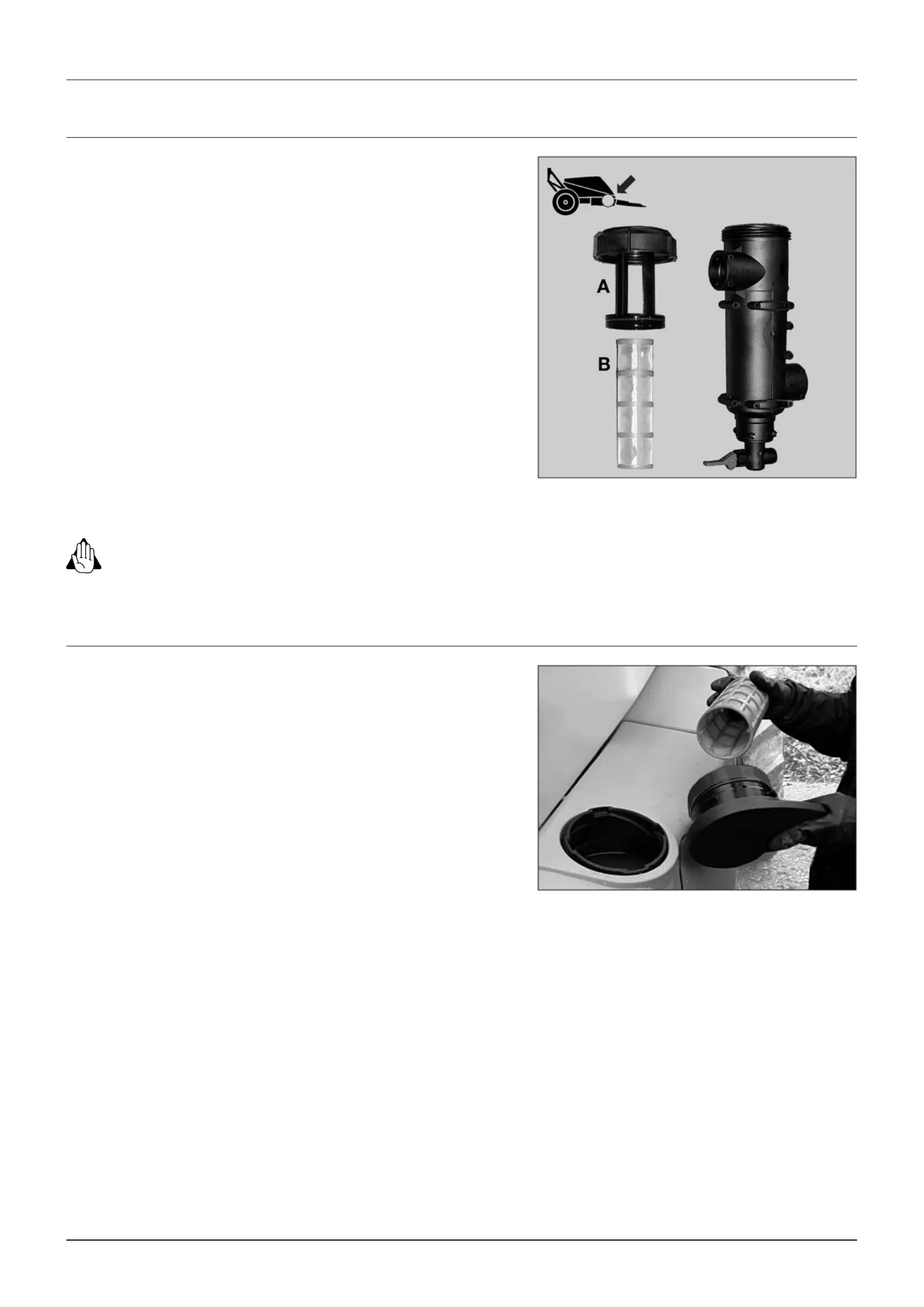

To service the Cyclone filter:
1. Turn suction SmartValve away from “Suction from main tank”.
2. Unscrew filter lid (A).
3. Lift the lid and filter (B) from housing.
4. Seperate filter from the integrated filter guide in the lid and clean
the filter.
To reassemble:
1. Grease the two O-rings on the lid/filterguide. Due to small space
at lid for example use a brush to grease with.
2. Mount the filter onto the recess (which may not be greased) in
the lid/filterguide.
3. Place the filter/filterlid into housing and screw the lid until it hits
the stop.
