Harmonic Drive RSF supermini Series - Page 52

5-2 Extension cable wire bound specifications
5-2
4
5
Options

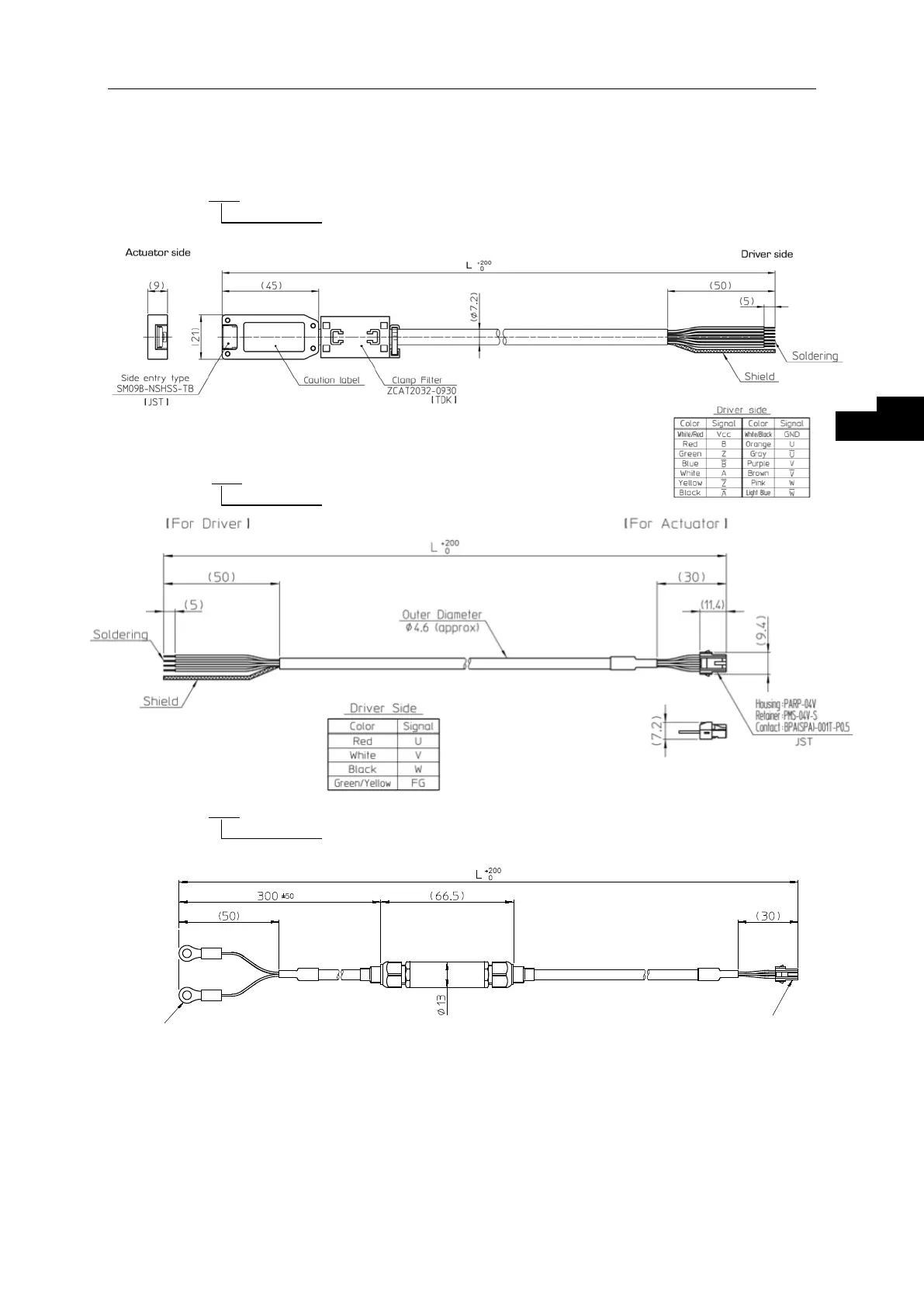

● Extension cable DCJ/DDP Driver
(1) For encoders
EWA-E××
-JST09-SP
(2) For motors
EWA-M××
-JST04-SP
(3) For brakes
EWA-B××
-JST03-TMC
5-2
Cable length (03=3m, 05=5m, 10=10m)
Cable length (03=3m, 05=5m, 10=10m)
Cable length (03=3m, 05=5m, 10=10m)
Round
crimp-style
terminal
1.25-4
Mfg by J.S.T. Mfg.
Co., Ltd.
PARP-03V
Application of 24VDC (non polar)
