APEX™ Exciter Incorporating FLO™ Technology
Navigating the LCD Display Screens Details of the Exciter Status Screens
Page: 3-12 888-2604-001 03/08/07
WARNING: Disconnect primary power prior to servicing.
3.4.4 Digital Processing Screens

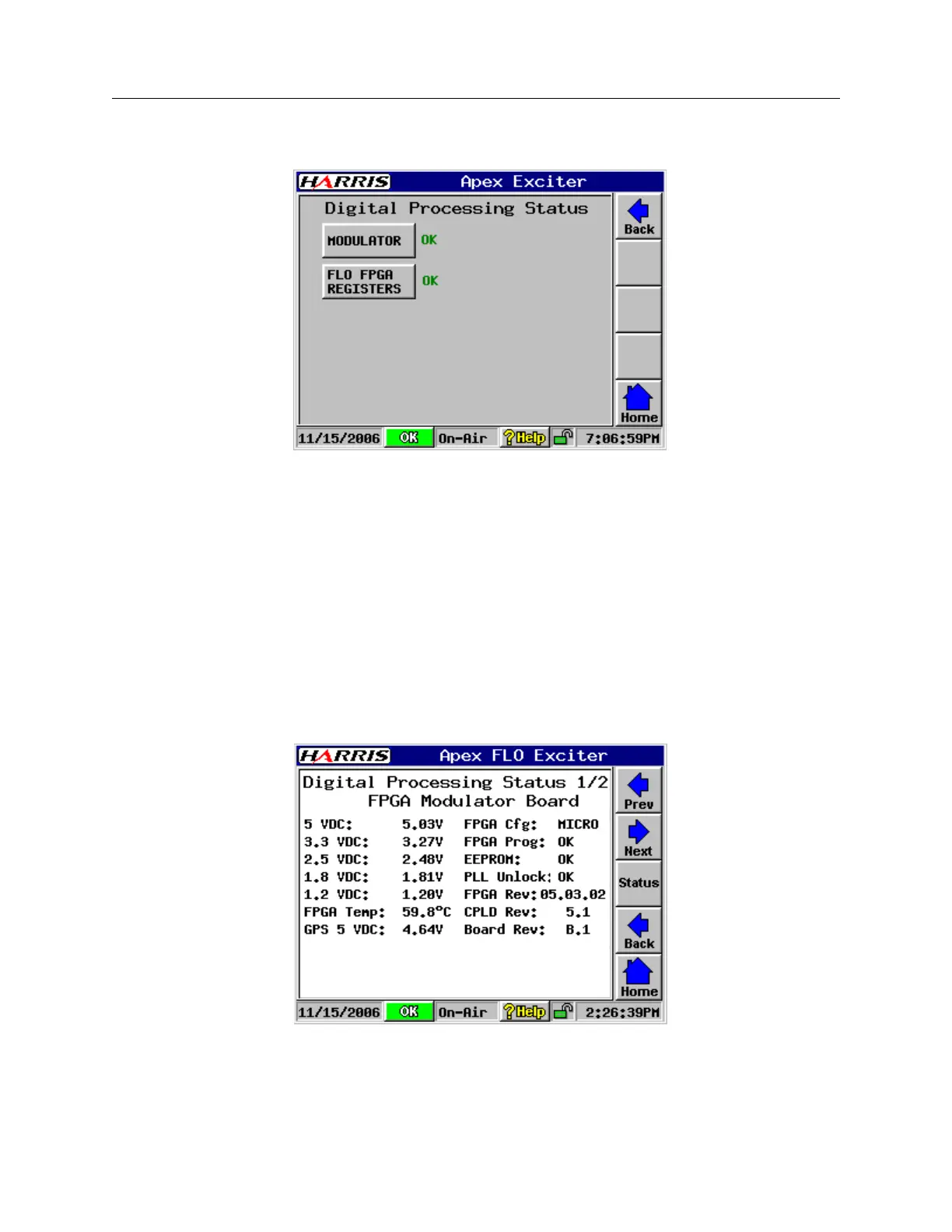

Figure 3-9 Modulation Board Status Screen
The Digital processing Status selection offers two selections, which are:
• The Modulator, which consists of screen 1, the FPGA Modulator, and screen 2, which
gives the software revisions of the ADC & DAC Boards.
See Modulator Board Status, Screen 1/2, on page 3-12
• The five FLO FPGA Register Status screens.
See FPGA Status Screens (1 through 5) starting on page 3-14
3.4.4.1 Modulator Board Status, Screen 1/2
Figure 3-10 Modulation Board Status, Screen 1/2
The Modulation Status screen is shown in Figure 3-10, with screen entries listed below.
