3.4.4.7 FLO FPGA, MTI Status, Screen 5/5
FPGA Status5.bmp

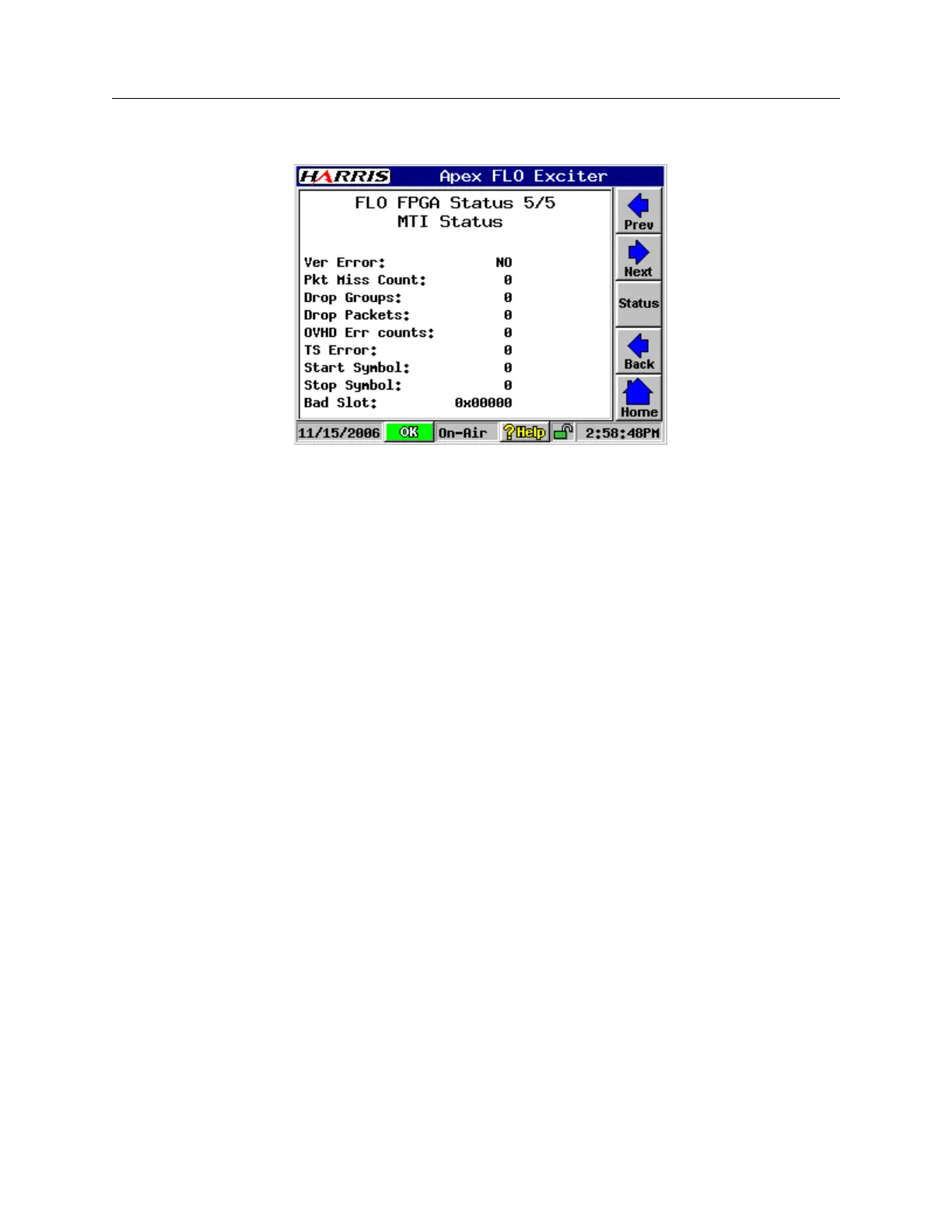

Figure 3-16 FLO FPGA, MTI Status, Screen 5/5
The parameters of the SFN FIFO Status screen are as follows.
• Ver Err: YES (in red) indicates error, NO (in black) indicated OK
• Pkt Miss Count: Displayed as an integer decimal
• Dropped Groups: Displayed as an integer decimal
• Dropped Packets: Displayed as an integer decimal
• OVHD Err Count: Displayed as an integer decimal
• TS Error: Displayed as an integer decimal
• Start Symbol: Displayed as an integer decimal
• Stop Symbol: Displayed as an integer decimal
• Bad Slot: Displayed as a hexadecimal number
