DA-6804+D Series
Installation and Operation Manual
9
Copyright © 2010, Harris Corporation
 Automatic bypassing reclock stage if not relockable
 Reclock status and data rate report
 Automatic slew rate control for electrical output signal
 Optical output protection enable
 Output output loss alarm
 Optical status for optical output (by CCS)
 Automatic power saving if not input signal or no termination on the output
BNC
 Local and remote control
 Module hot swappable
DA-DHROE6804+D
The main features for the DA-DHROE6804+D are listed below. Figure 1-6 shows a
basic signal flow diagram for this distribution amplifier module.

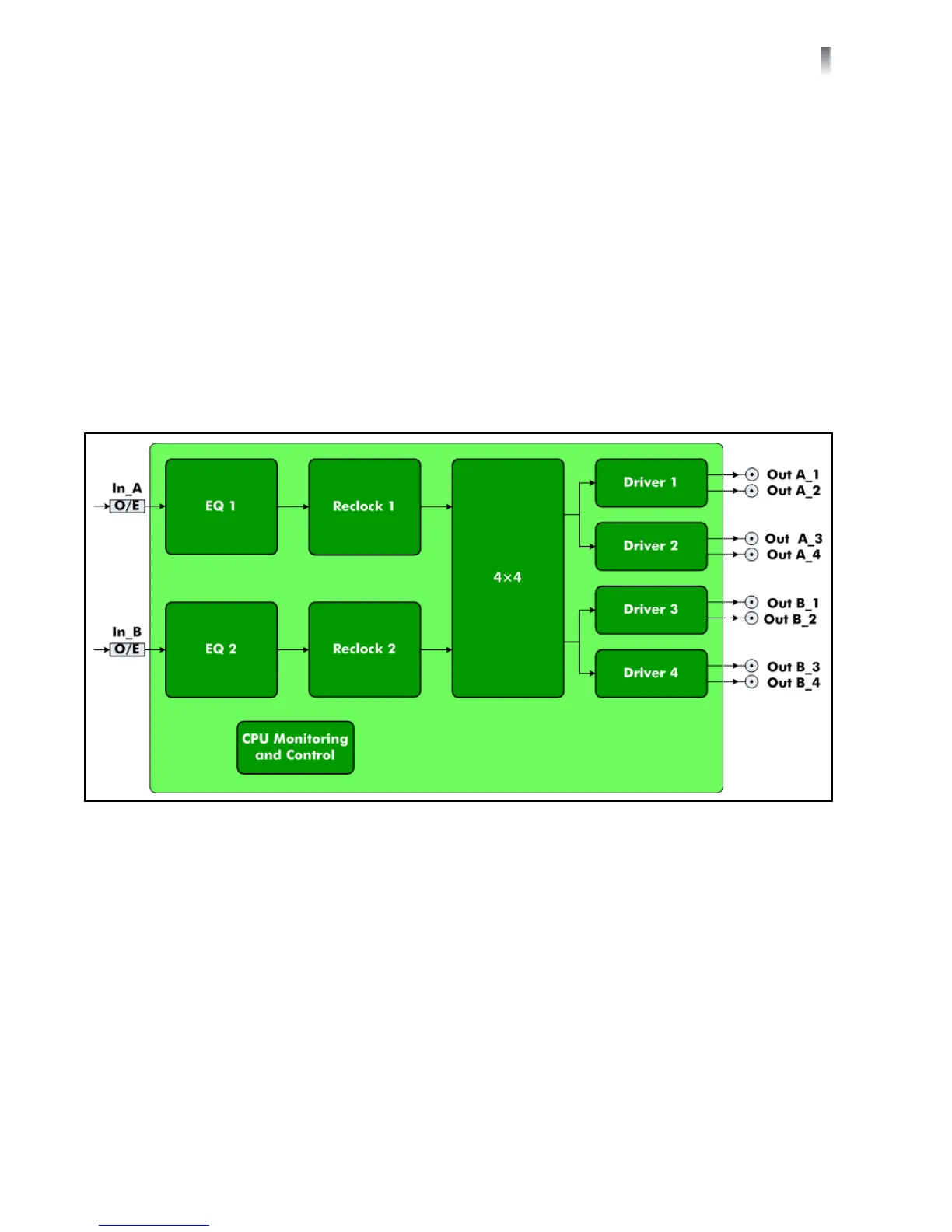

Figure 1-6 DA-DHROE6804+D Signal Flow Diagram
 Operates with dual slot, RR optical distribution amplifier back module (see
page 14)
 Passes signals at data rates from 5 Mb/s to 3 Gb/s
 Four selectable channel configurations:
 1×8_ACO: 1 optical input (In_A) to 8 electrical outputs with auto
changeover
The optical signal on In_A is converted and distributed to 8 electrical
outputs. If the signal at In_A disappears, the outputs are switched to In_B
(if a signal at In_B is detected).
When the signal reappears on In_A, the outputs are automatically
switched back to In_A from In_B.
 1×8_ In_1: optical In_A to 8 electrical outputs
