CCS Naviga-
tor Display
and Control
NOTE: This section presupposes that you have a working knowledge of
CCS Navigator and have used the software’s other capabilities. If not,
please refer to the pertinent software application user manual to
familiarize yourself with its functions before you continue.
When viewing the DA-6804+D series in Navigator control mode, a control pane is
displayed on screen of the computer monitor. When you select the frame and slot
for a distribution amplifier module location, the software displays the item values
on the control pane, as shown in Figure 3-6. Some parameters are adjustable if
the J3 jumper is set to REMOTE.

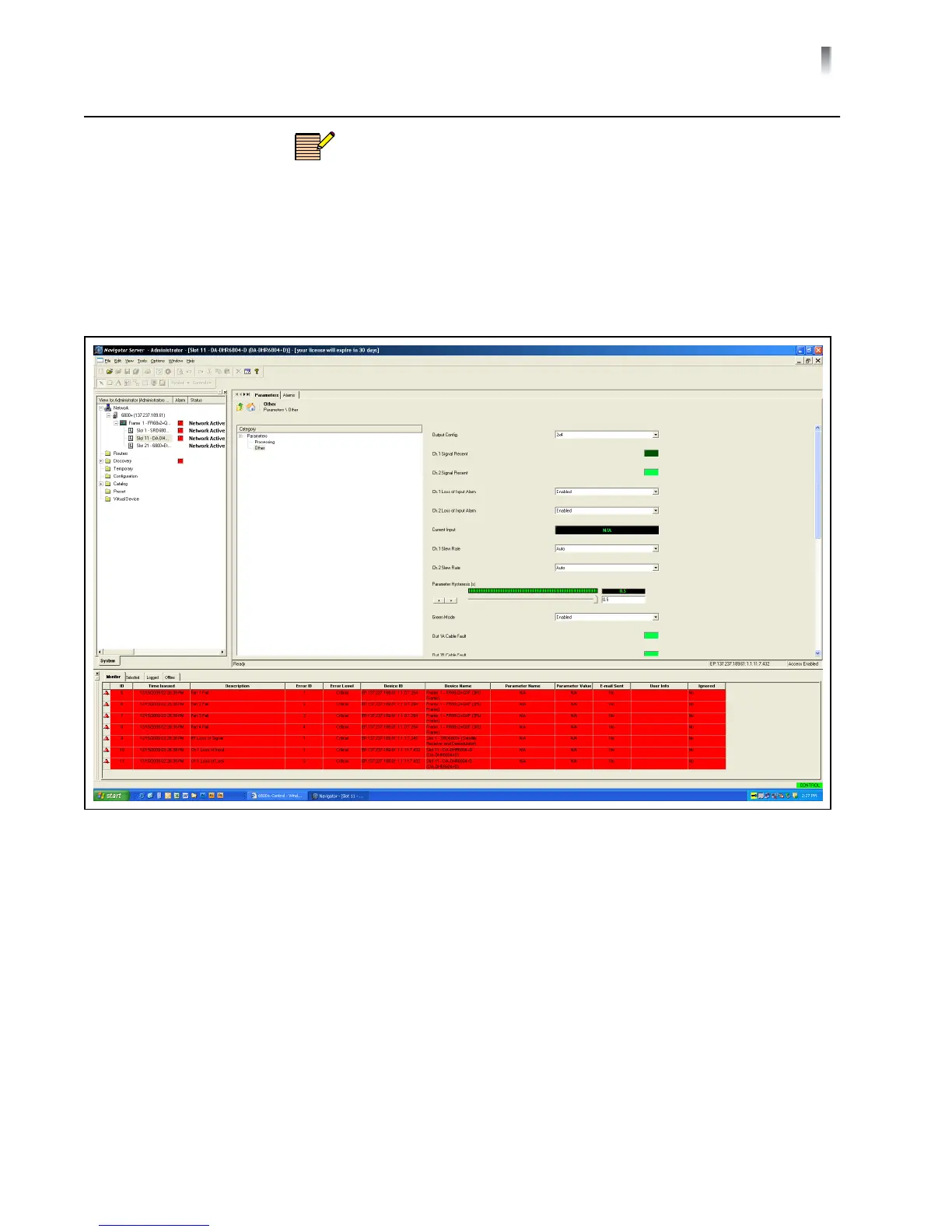

Figure 3-6 CCS Navigator Control Display
In the value display boxes on the pane, the value of read-only parameter is
displayed as black ground with green characters. The adjustable parameter value is
displayed as white ground with black characters. The adjustable parameter boxes
should be turned to grey if the J3 jumper is not set to REMOTE.
