DA-6804+D Series
Installation and Operation Manual
29
Copyright © 2010, Harris Corporation

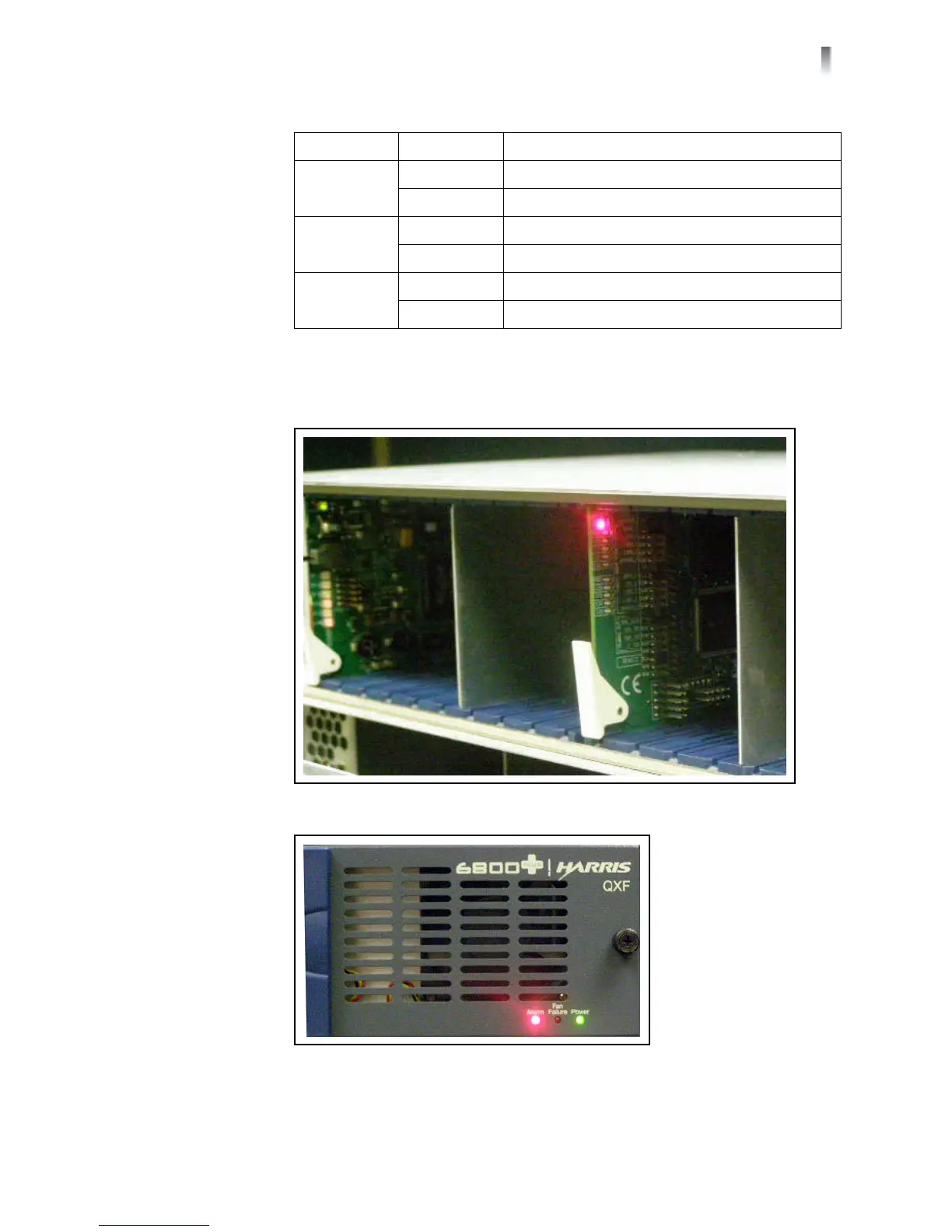

Alarms
If an alarm is triggered within a module, the module status LED turns red and the
alarm light on the front of the frame lights red.
Figure 3-2 Alarm Indicator, System Status LED
Figure 3-3 Alarm Indicator, Frame Front
270 Green Input signal is reclocked at 270 Mb/s
Off Input signal is not reclocked
1.5G Green Input signal is reclocked at 1.485 Gb/s
Off Input signal is not reclocked
3.0G Green Input signal is reclocked at 2.97 Gb/s
Off Input signal is not reclocked
Table 3-2 Signal Condition LED Descriptions (Continued)
Name Color Function
