 2_1×4: 2 independent 1×4
 SDI In_1 to SDI Out_1, 1-4
 SDI In_2 to SDI Out_2, 1-4
 Input signal presence detect and report
 Automatic input cable equalization
 Selectable +6 dB gain to use external passive 75 2×1 splitter (via CCS only)
 Selectable input EQ bypass
 Automatic power saving if not input signal or no termination on the output
BNC
 Local and remote control
 Module hot swappable
DA-DSR6804+D

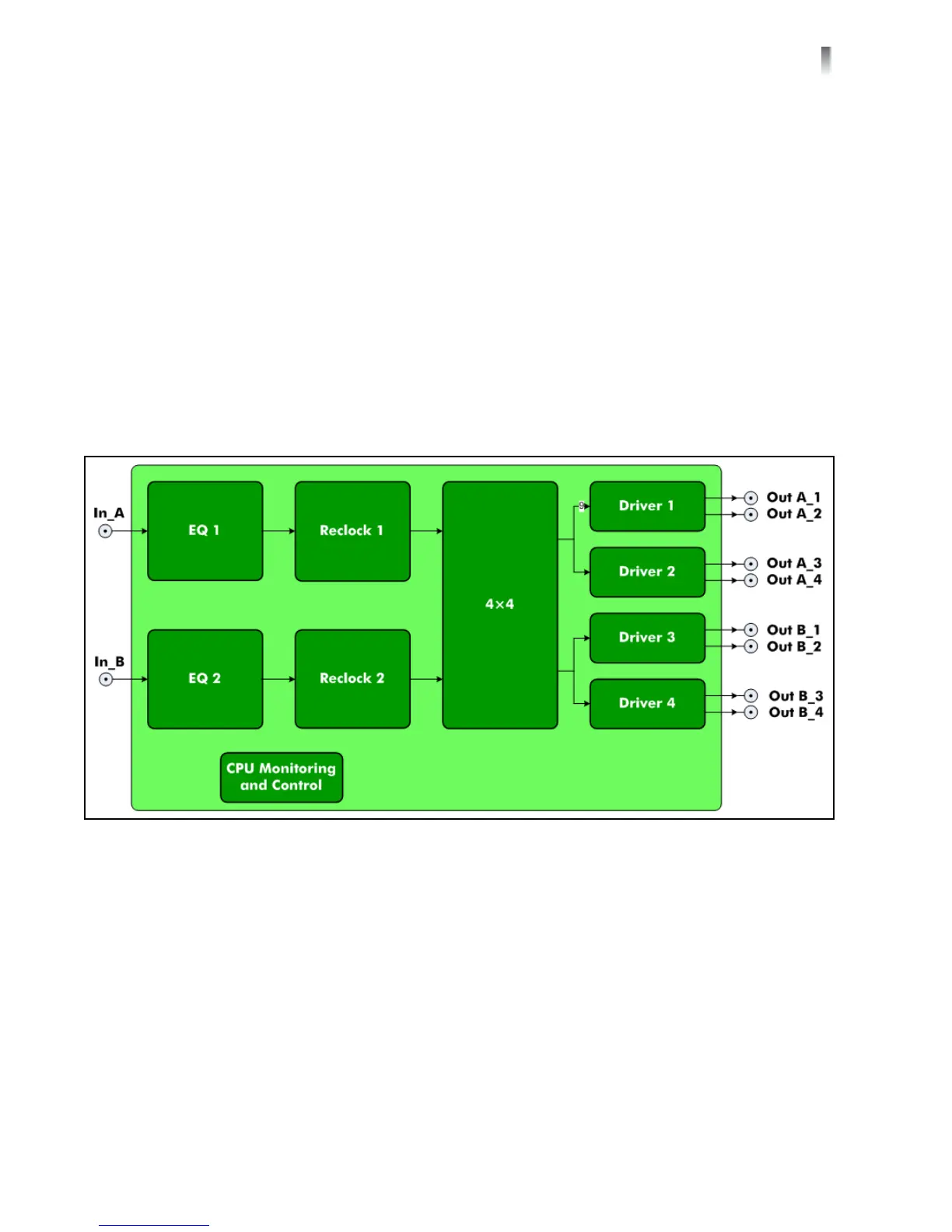

The main features for the DA-DSR6804+D are listed below. Figure 1-3 shows a
basic signal flow diagram for this distribution amplifier module.
Figure 1-3 DA-DSR6804+D Signal Flow Diagram
 Operates with standard dual slot distribution amplifier back module (see
page 14)
 Passes signals at data rates from 5 Mb/s to 540 Mb/s
 Four selectable channel configurations:
 1×8_ACO: 1 input to 8 outputs with auto changeover
The signal on SDI In_1 is distributed to 8 outputs. If the signal at SDI In_1
disappears, the outputs are switched to SDI In_2 (if a signal at SDI In_2 is
detected).
When the signal reappears SDI In_1, the outputs are automatically
switched back to SDI In_1 from SDI In_2.
 1×8_ In_1: SDI In_1 to 8 outputs
