Harris DA-DHR6804+D - Rear View; Maximum 6800+ Frame Power Ratings

DA-6804+D Series
Installation and Operation Manual
15
Copyright © 2010, Harris Corporation
Rear View

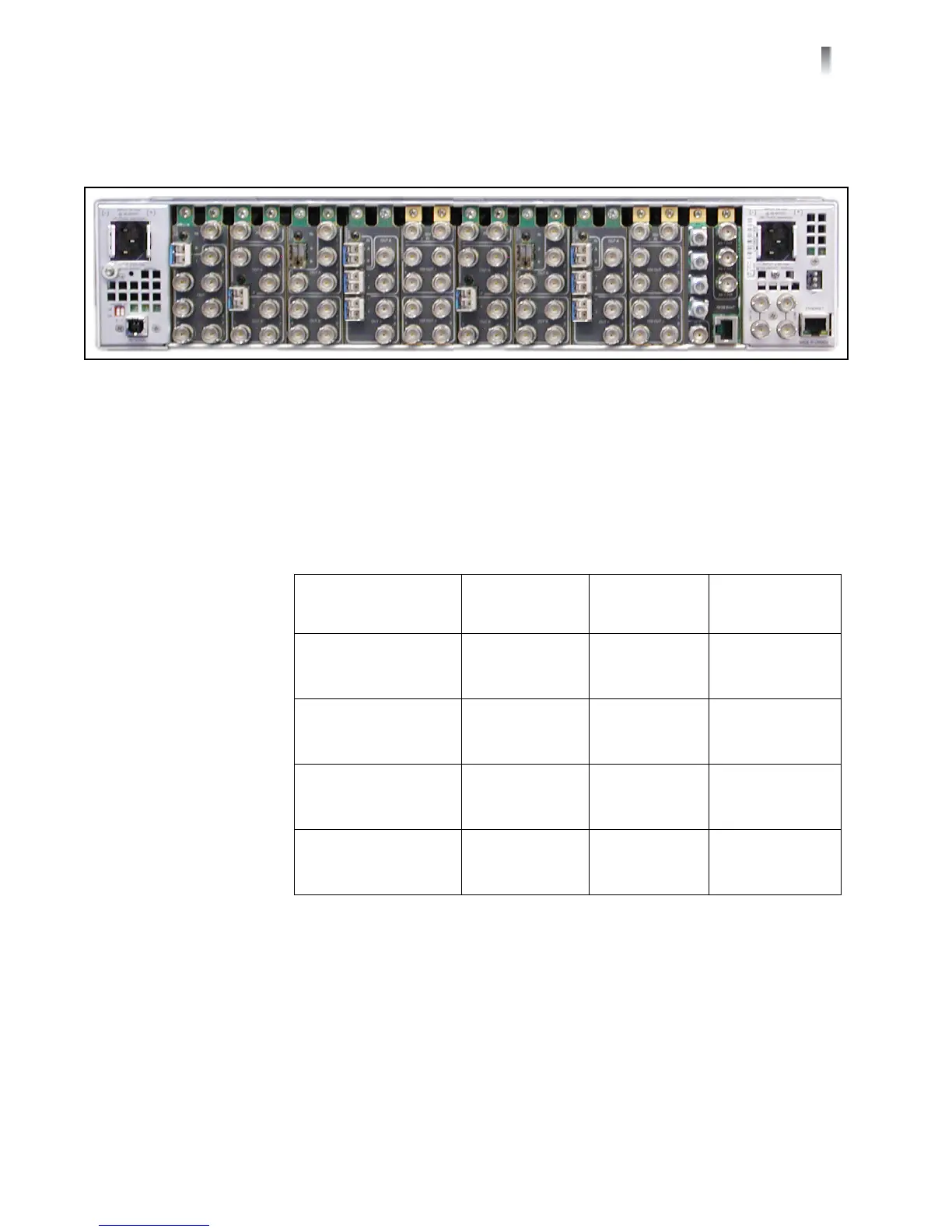

Figure 1-10 shows a rear view of the DA-6804+D Series fully-filled frame. The
frame holds 10 modules (each front module and its corresponding back module
occupies 2 slots in a frame).
Figure 1-10 Frame Rear View
Maximum 6800+
Frame Power
Ratings
Power consumption information is listed in Chapter 4, Specifications on page 52.
Table 1-2 describes the maximum allowable power ratings for 6800+ frames.
Note the given maximums before installing any 6800+ modules in your frame.
DA-6804+D series modules cannot be installed in 6800/7000 series frames.
Table 1-2 Maximum Power Ratings for 6800+ Frames
6800+ Frame Type
Max. Frame
Power
Dissipation
Number of
Usable Slots
Max. Power
Dissipation
Per Slot
FR6802+XF
(frame with AC power
supply)
120 W 20 6 W
FR6802+XF48
(frame with DC power
supply)
105 W 20 5.25 W
FR6802+QXF
(frame with AC or DC
power supply)
120 W 20 6 W
FR6822+
(frame with AC or DC
power supply)
120 W 20 6 W
