Chapter 3
Operation
32
Copyright © 2010, Harris Corporation

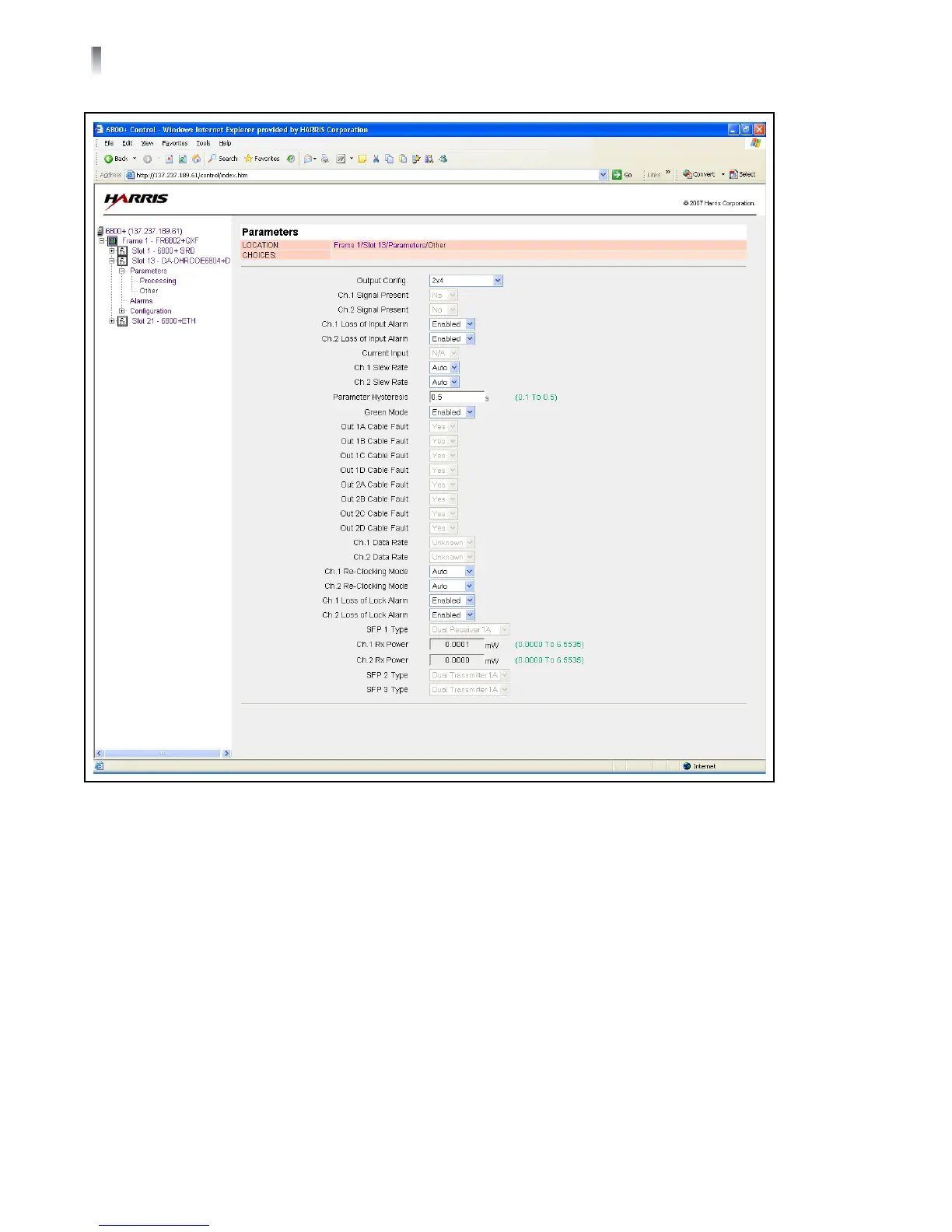

Figure 3-5 Parameter View for Web-Enabled Display
In the value display boxes on the pane, the value of read-only parameter is
displayed as grey ground with black characters and you cannot change it. The
adjustable parameter value is displayed as white ground with black characters. The
adjustable parameter boxes should be turned to grey if the J3 jumper is not set on
the REMOTE pins.
