46 NUCLEUS Installation and Operation Manual
Appendix B: Displaying NTP Time
Configuring NUCLEUS to Display NTP Time
In order for NUCLEUS to display time from an NTP source (CSD), this
feature must be enabled using the Clock Management menu. For the
control panel to communicate with the CSD module, you must provide
the IP address of that frame’s resource module.
Follow these steps to provide the IP address of the NEO frame’s
resource module:
1. Press the Option button on the control panel.
2. From the Options menu, select Clock Management, and then
press Enter.
3. Select NTP, and then press Enter to enable the NTP Server option.
4. Press Exit to return to the Clock Management menu, and then
select NTP Servers from the list.
A list of IP addresses appear on the control panel display.

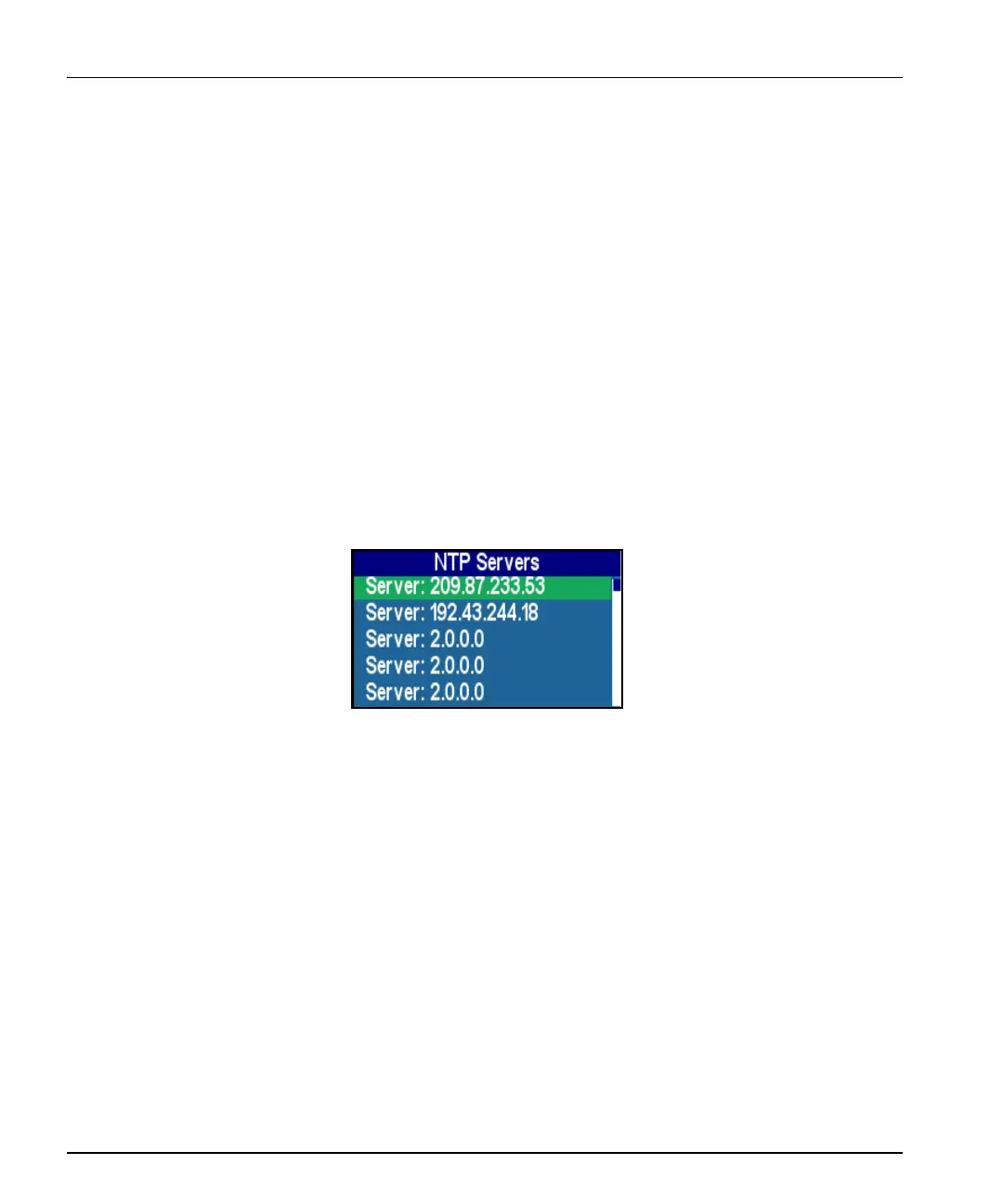

Figure B-1. NTP Servers
5. Select an IP address from the list, and then press Enter.
6. To display the time, use the Exit button to navigate back the Clock
Management menu, and then select Show Time.
The control panel display shows the current time.
