14 NUCLEUS Installation and Operation Manual
Chapter 2: Operation
Selection/Adjustment Buttons
You can use the selection/adjustment buttons to select items such as
operational modes and adjust various device settings. In must cases, the
items that you can select or adjust are labelled in the QVGA display
directly above the buttons.
Panel Enable Button
When the Panel Enable button is pressed, the control panel is locked to
prevent inadvertent use. To unlock the control panel, press the Panel
Enable button a second time. To log out, press the Shift button, and
then press the Panel Enable button. For more information about the
Panel Enable button, see “Enabling/Disabling the Control Panel” on
page 26.
Static Controls
NUCLEUS static controls are not programmable, meaning that they
have the same function for all software license control options.
Figure 2-3 shows the static controls.

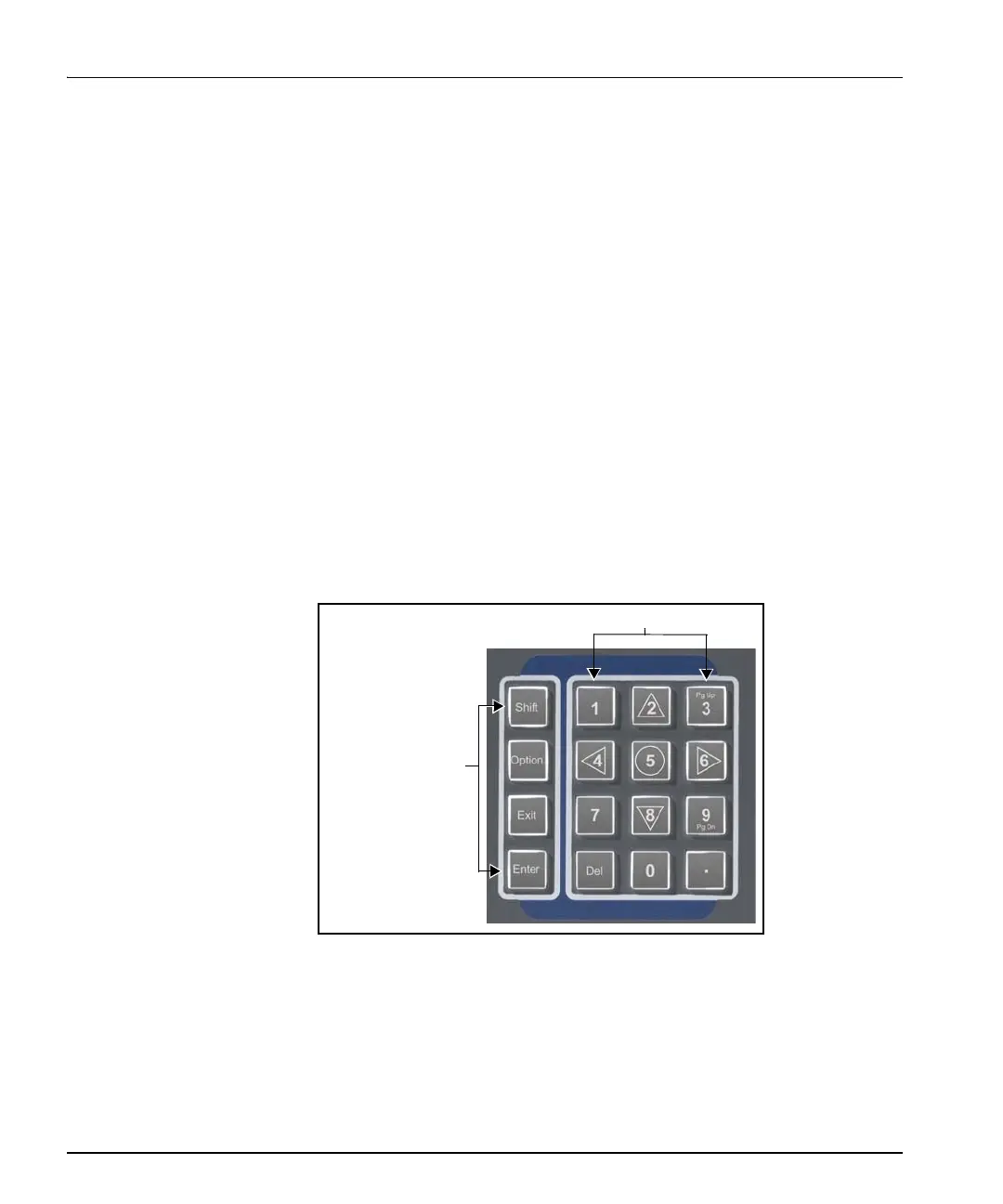

Figure 2-3. NUCLEUS Static Controls
Function Buttons
Many of the buttons on the control panel have multiple functions
assigned to them. Different tasks can be selected using the
multi-function buttons.
Function buttons
Numeric keypad
To Next Page
