16 NUCLEUS Installation and Operation Manual
Chapter 2: Operation
Dynamic Controls
The layout and function of the dynamic controls are specific to the
control option that you are using on the panel. This section only
provides general information about the panel’s dynamic controls. See
the appropriate NUCLEUS control option configuration and operation
manual for detailed information about using these controls. Figure 2-4
shows the dynamic controls.

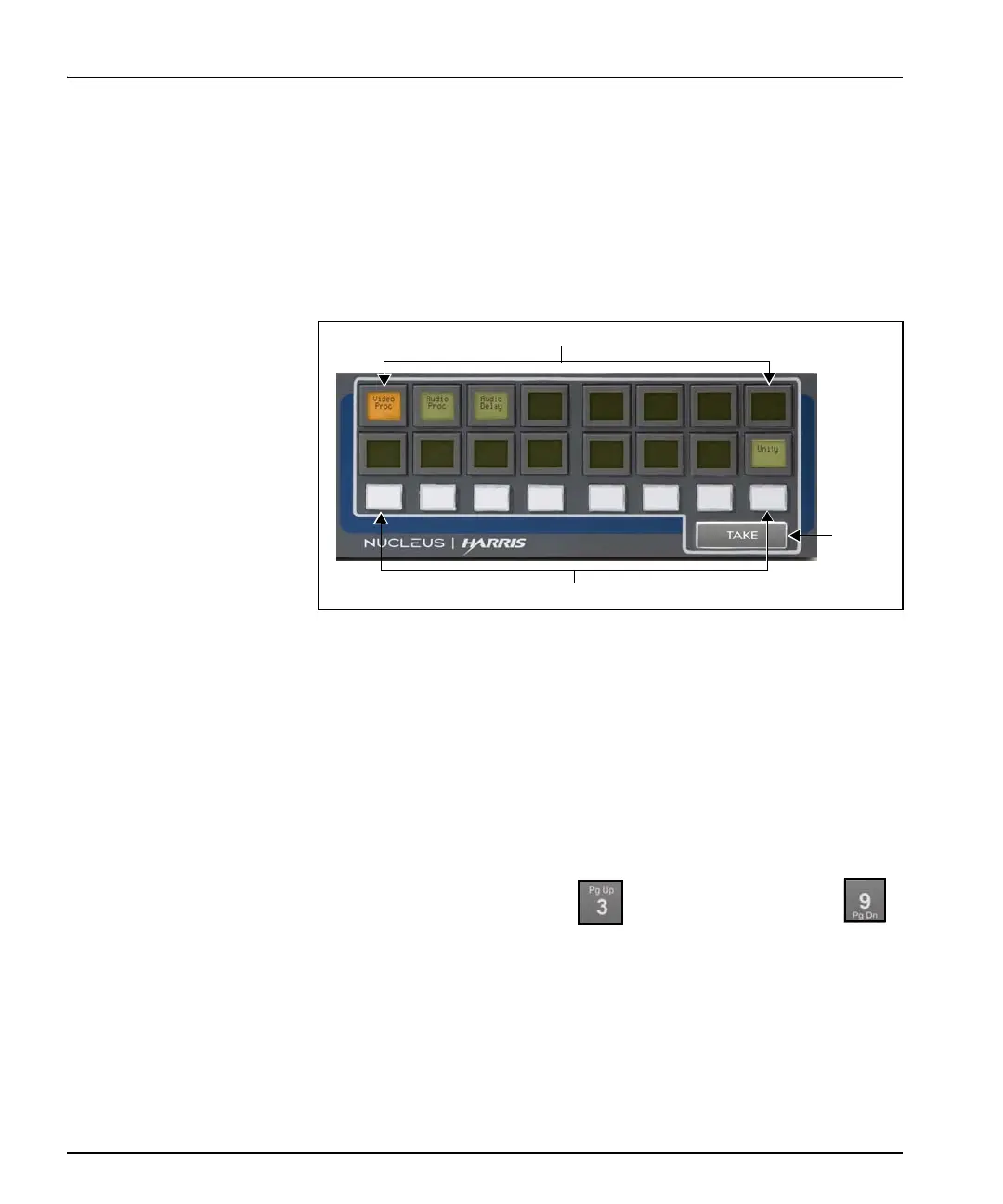

Figure 2-4. Dynamic Controls
LCD Buttons
You can use the LCD buttons to perform operation and control
functions such as providing access categories, indexes, devices, device
parameter sub-menus, destinations, or sources. Depending on the
control option that you are using, the LCD buttons are either
user-programmable or have preset functions. The appearance and color
of the LCD buttons is also dependent on the control option you are
using. Multiple pages of 16 LCD buttons can be assigned and used.
You can use the page up button and the page down button
on the numeric keypad to navigate through multiple LCD button pages.
Preset Buttons
The user-assignable preset buttons can be either used to set user-defined
device preset values or to enable specific functionality predetermined
by the control option you are using. The preset buttons are not
configurable using CCS software applications.
LCD buttons
Take
button
Preset buttons
To Next Page
