4C20 Gasoline Engine Repair Manual

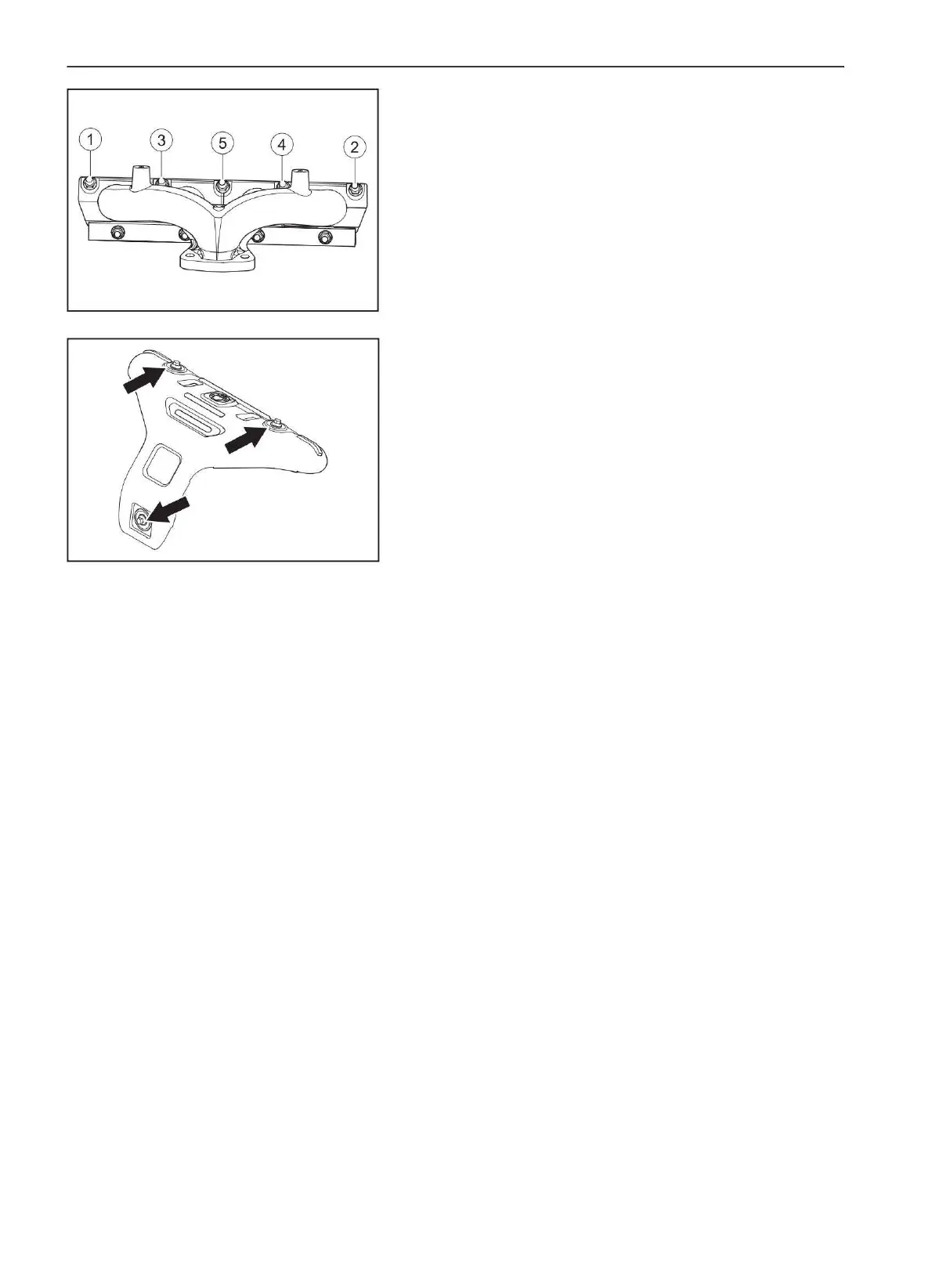

(a) Install the exhaust manifold to the cylinder head and secure with 5 new
nuts.
(a) Install the heat shield to the exhaust manifold mounting lug and secure
with 3 bolts.
ÿ Pre-tightening torque: 15±2 Nm.
ÿ Tightening torque: 10±1 Nm.
ÿ Tightening torque: 22±2 Nm.
11. Remaining assembly operations in the reverse order of removal
10. Installing the exhaust manifold heat shield
9. Installing the exhaust manifold
