Dimensions & Mounting Connection
ORCA Sonar System
10

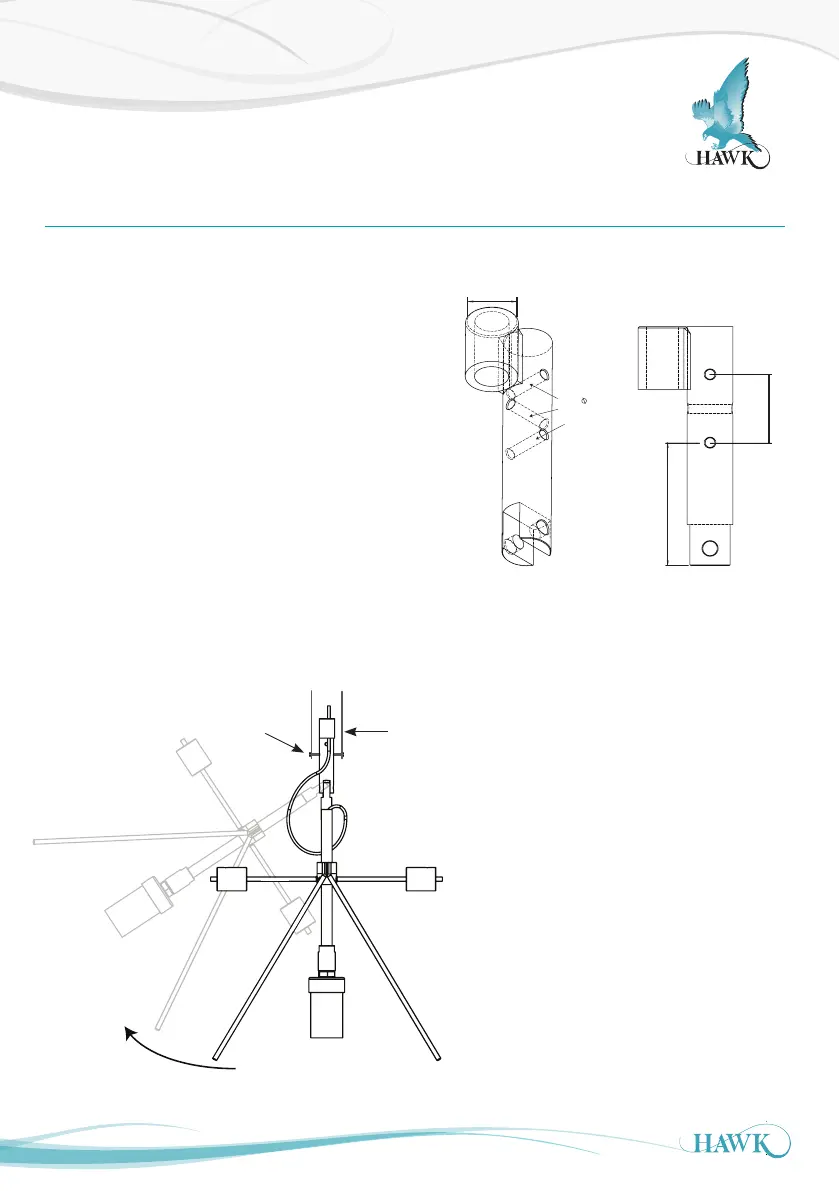

Impact Plate Mounting Connection
The top of the Impact Plate has 3 x 7mm bolt holes
which can be secured to an angle iron or equivalent
bracket. There is also a M25 (1.5”) threaded
connection for a mounting pole connection. The
Impact Plate is designed to swing parallel with the
counter weights. The surface sweeper must come
in contact with the legs of the Impact Plate which
swings the bracket lifting the transducer out of the
liquid. When the sweeper has cleared, it will drop
back in and use the counter weights to re-center. The
force of the movement will clear the sensor face of
any build up
Impact Plate Connection Point
Angle iron or equivalent
Swing
Bolt
90mm (3.54”)
50mm (1.97”)
7.00
(0.79”)
×3
M25 x 1.5 INT
THD THRU
ISOVIEW FOR
REFERENCE ONLY
