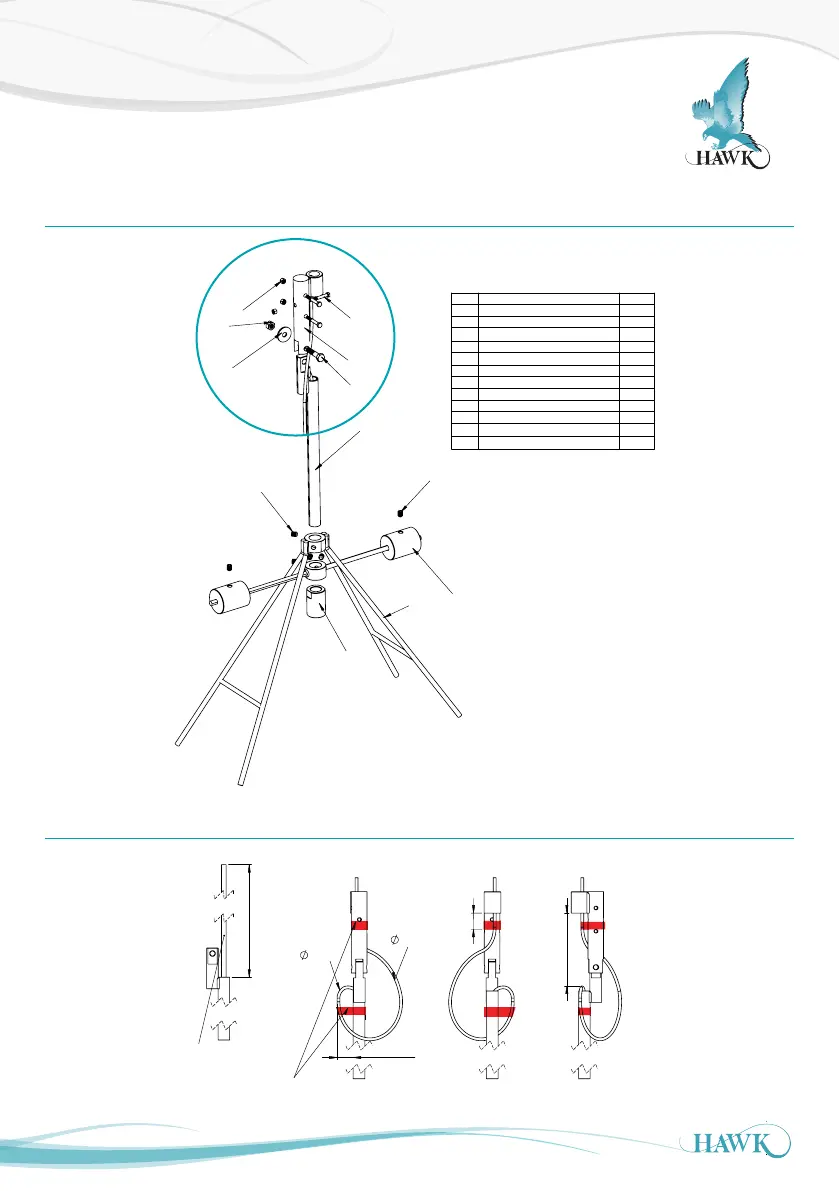

Hawk ORCA - Mounting & Hardware Assembly; Impact Plate Assembly; A: Important Cabling Steps to Follow

Mounting & Hardware Assembly
ORCA Sonar System
11
Impact Plate Assembly
1
2
3
4
5
6
7
8
9
10
11
12
No. Description QTY.
1 Impact Plate Dual Direction 1
2
Sonar Pole Adaptor 1
3
Impact Plate Counter Balance 1
4
Sonar Male Clevis Assembly 1
5
Sonar Female Clevis Assembly 1
6
M6×45 Stainless Steel Bolt 3
7
M10×40 Stainless Steel Bolt 1
8
M10×12 Stainless Steel Set Screw 4
9
M10×20 Stainless Steel Set Screw 2
10
M6 Stainless Steel Nut 3
11
M10 Stainless Steel Nyloc Nut 1
12
M10 Stainless Steel Washer 1
170mm
Right
30mm
Front
60mm
mm03
Back
160mm
550mm
Allow 550mm loose
cable
to perform the
looping of the cable
Use electrical tape to
hold cable in place
*A: Important Cabling Steps to Follow
*A
