Hawk ORCA - Actuator Cable Specification

Actuator Cable Specication
ORCA Sonar System
14
Actuator Cable Specication
Note 1: Calculations based on:
4.0 Amps max actuator current and;
4.0 Volts drop across max cable length ( 2 wires)
Note 1: Note 2: Maximum terminal capacity is 1.5mm, which limits 16AWG cable to35m.
Note 3: For long cable runs, use 16 AWG to local junction box, then extend using 10-14 AWG.
Note 4: Also required: 3-wire cable for feedback potentiometer, 0.5mm - 1.0mm.
Gauge
AWG
Nom OD
mm
Resist
Ohm/1000ft
Resist
Ohm/m
Loss
V/m
Max Res
Ohm
Max Dist
m
10 2.9201 0.80 0.0035 0.028 1.00 141.1
12 2.4401 0.71 0.0056 0.045 1.00 89.1
14 1.9302 0.73 0.0090 0.072 1.00 55.8
16 1.5204 0.35 0.0143 0.114 1.00 35.0
18 1.2206 0.92 0.0227 0.182 1.00 22.0
20 0.965 0.90 0.0358 0.286 1.00 14.0

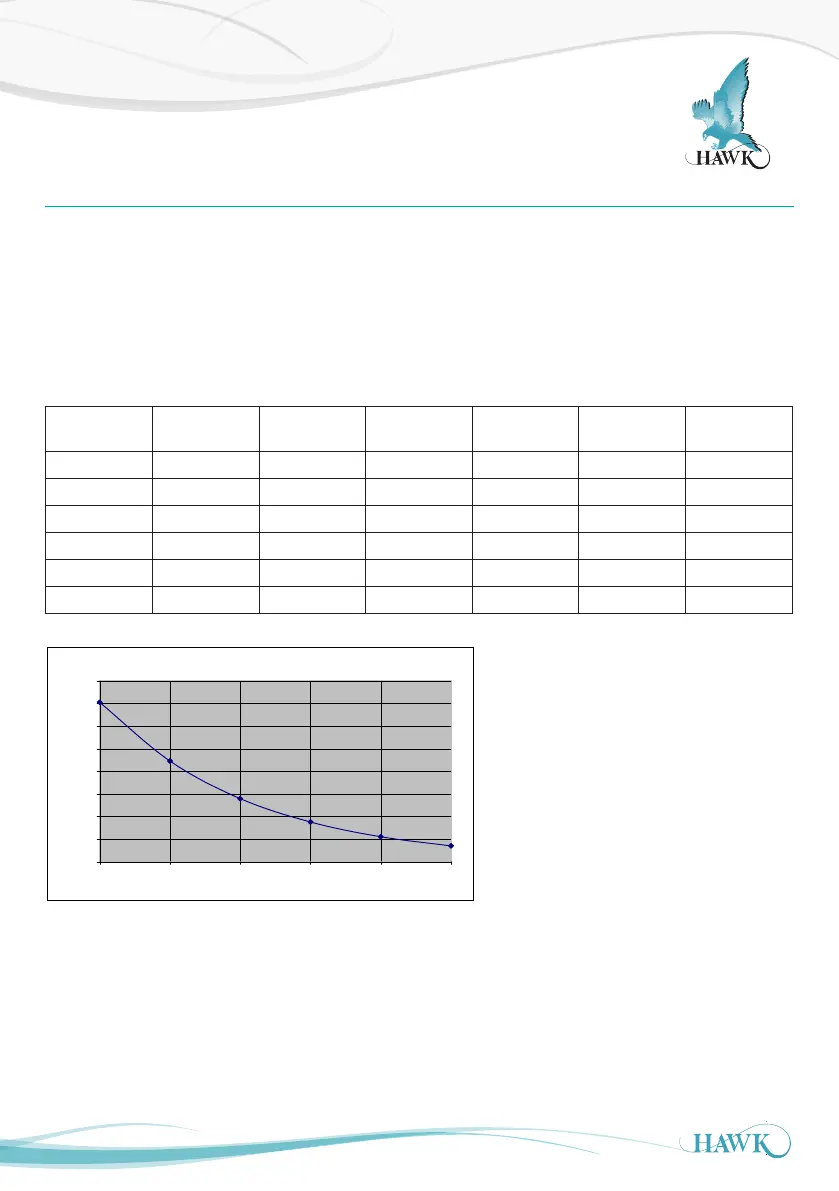

Actuator Motor Cable Guide
0.0
20.0
40.0
60.0
80.0
100.0
120.0
140.0
160.0
10 12 14 16 18 20
Wire Gauge (AWG)
Max Distance (m)
