Hawk ORCA - Mounting Bracket; Pole Assembly

Assembly
ORCA Sonar System
9
Item
No.
Part Number Description Qty
1 OSIRxxx ORCA Transmitter 1
2 SUNHOOD Stainless Steel Sunhood 1
3 SA-SS-AAFB Stainless Steel Front Bracket 1
4 SA-SS-AARB Stainless Steel Rear Bracket 1
5 LAUS061196E Actuator Actuator (only with OSIRSCA/OSIRSCD) 1
6 ST-SS-EPEC Pole to Cable Gland Adaptor with M16 cable gland 1
7 ST-APC-26.8-INT SS Internal Pipe Clamp 1
8 ST-APC-26.8-EXT SS External Pipe Clamp 1
9 ST-SS-EP Mounting Pole 1
10 OSIRTxxxxxxxx Sonar Transducer 1
11 ZPP-M5X20MM M5x20 Phillips Pan Head 8
12 U-BOLT 50mm x 8DIA U-Bolt with nuts and washers 4
13 BOL-M10x15SS M10 x 15mm SS Bolt 4
14 BOL-M10x50SS M10 x 50mm SS Bolt with washer & nyloc nut 1
15 BOL-M10x40SS M10 x 40mm SS Bolt with washer & nyloc nut 2
16 ST-SS-TC Sonar Pole Adaptor 1
17 GLA-M16 M16 Cable gland IP68 with washer 1
18 Washer-M10 M10 washer for M10x40mm & M10x50mm SS Bolt 6
19 Nut-M10 M10 nut for M10x40mm & M10x50mm SS Bolt 5
20 Nut-M8 M8 nyloc nut for 50mm U-bolt 8

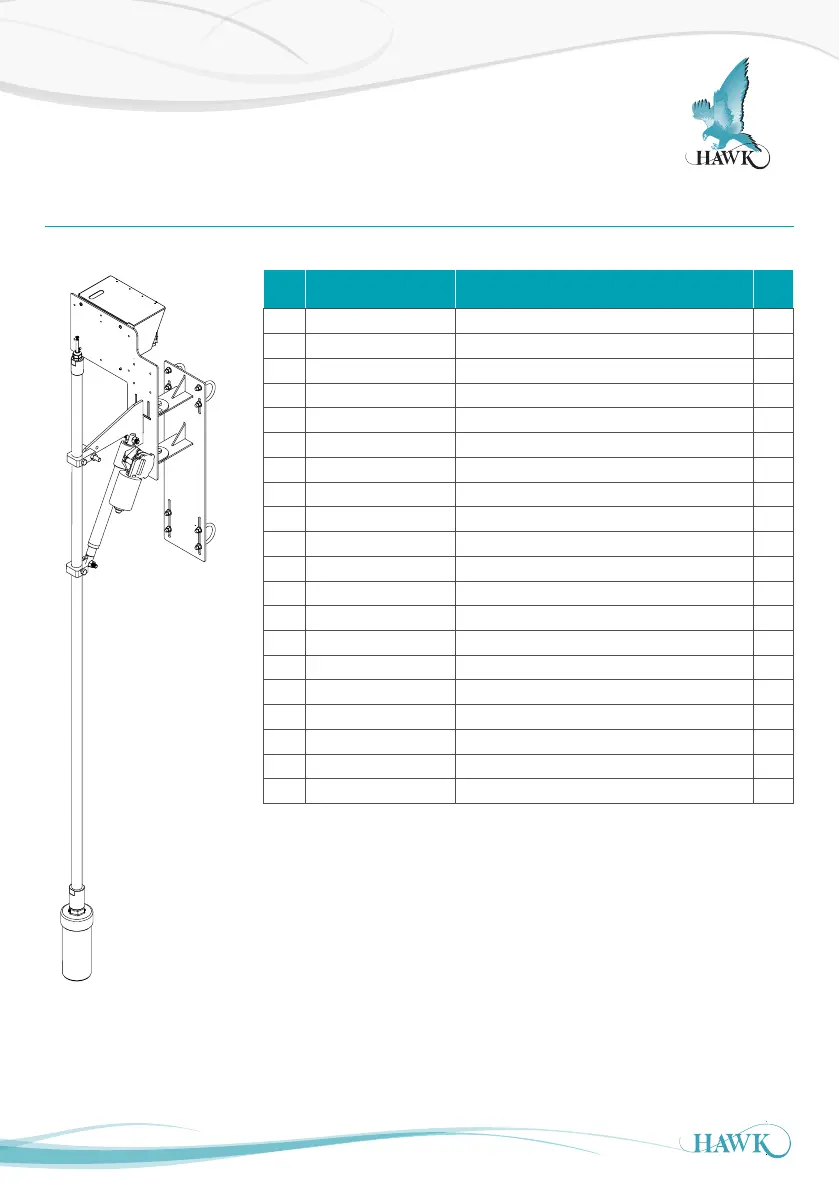

Mounting Bracket / Pole assembly
11
4
12
10
9
8
3
6
13
7
14
15
18
19
20
1
13
2
5
16
17
