Hawk ORCA - How to Set up the Unit - Hindered Layer + Clarity

Application Calibration
ORCA Sonar System
30
How to set up the unit - Hindered Layer + Clarity
Parameters for standard setups are located in the
'Quickset' menu.
You will need to program the following parameters:
- App Type - High & Low Level, Density
- App Type2, High & Low Level2
A) High Level for App Type should not be less
than 0.600m (2ft). High and Low level for Clarity
is represented as a %. 0% poor Clarity, 100%
optimal Clarity.
B) Set App Type to 'Floc' with Density 0.6-1.2g/l.
This applies our pre-set parameters to measure
the Bed level with the first output.
Set App Type2 to 'Clarity'. This programs output
2 for a proportional 0-100% representation of
Clarity

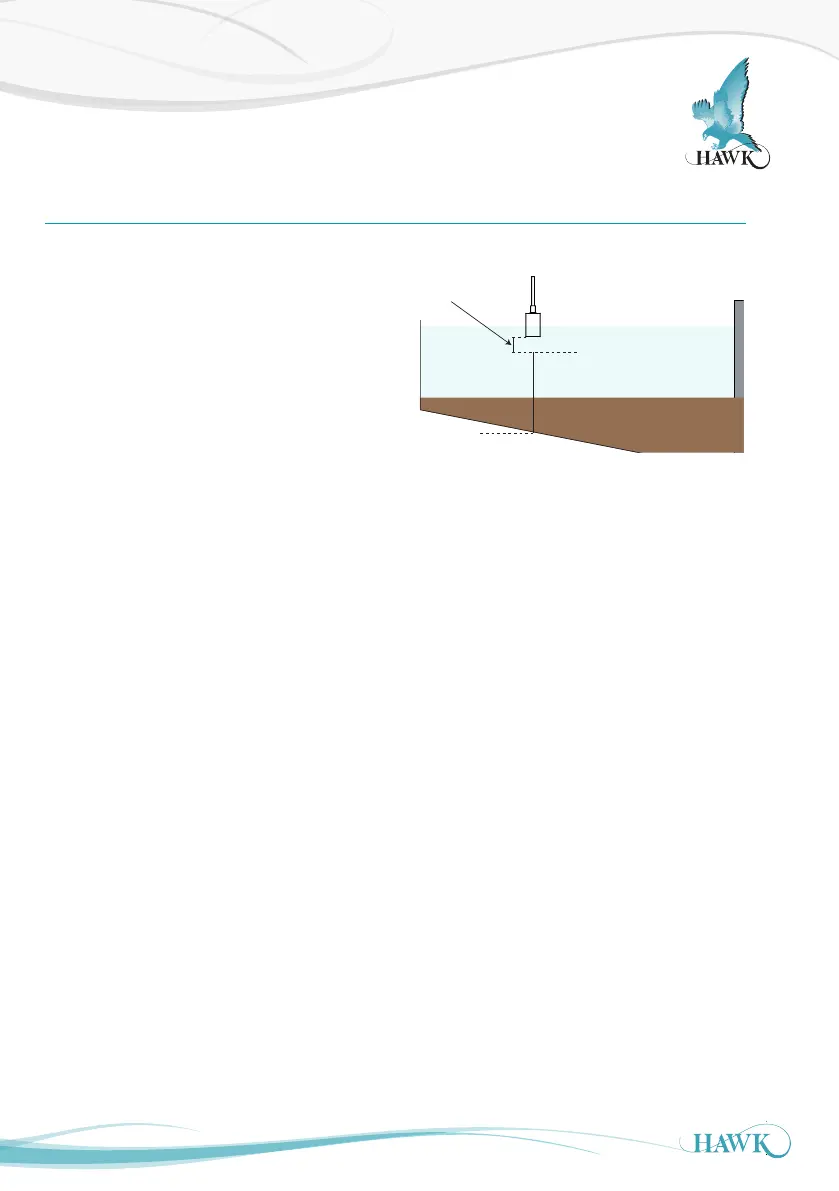

1/3 Radius
1/2 Submerged
High Level
20mA
0.600m
Low Level
4mA
X.xxm
Blanking /
non-measured
zone
Bed Depth
(Max Bed + 1m (3ft)
Max Bed
1m
