Hawk ORCA - Quickset; Typical High & Low Level

Setup Procedure
ORCA Sonar System
19
1/3 Radius
1/2 Submerged
High Level
20mA
0.600m
Low Level
4mA
X.xxm
Blanking /
non-measured
zone
Bed Depth
(Max Bed + 1m (3ft)
Max Bed
1m

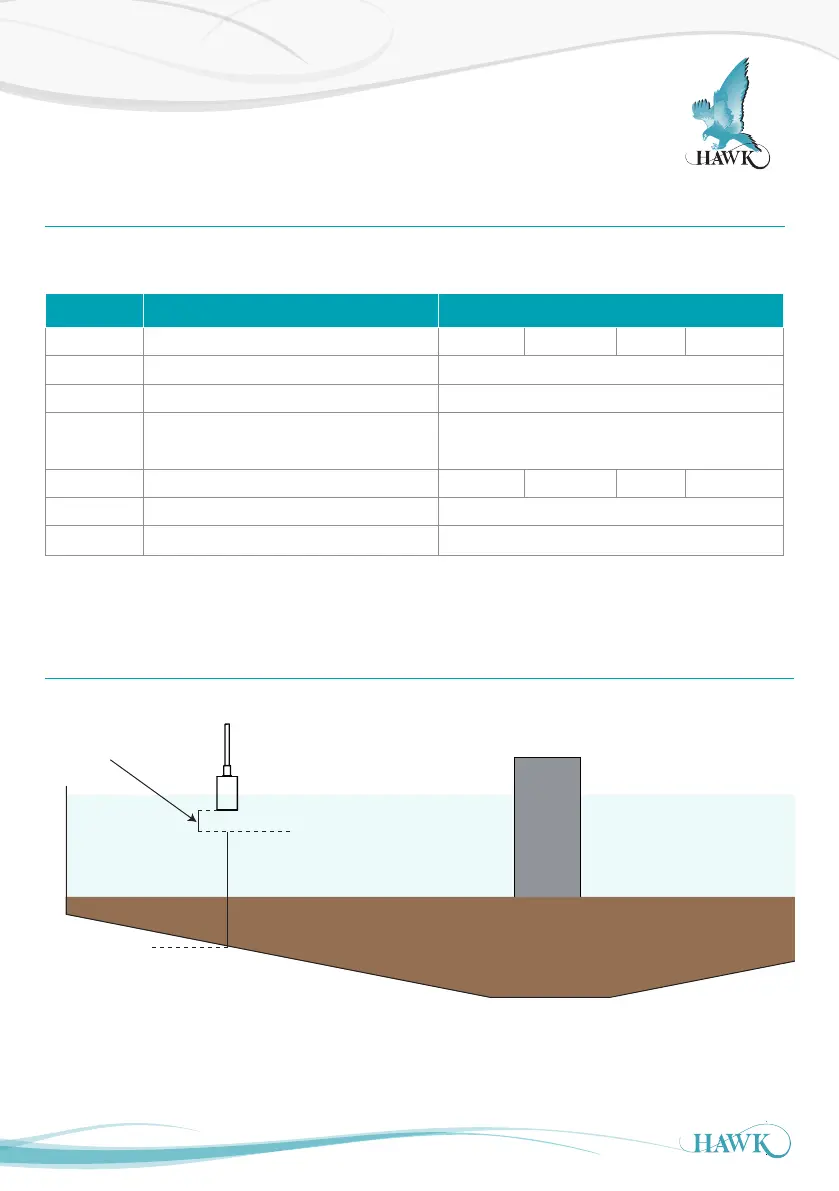

Typical installation - Set ‘Low Level’ (4mA) to be the distance from the transducer face to the bottom of the
tank. High Level should be 0.600m for most accurate and reliable measurement.
Parameter Description Options
Unit Adjust displayed measurement unit Inches Feet Meters Centimeters
App Type Select Application Parameters for Output 1 See Unit Setup: 'App Type'
App Type2 Select Application Parameters for Output 2 See Unit Setup: 'App Type2'
Failsafe Set failsafe output & timer
20mA 4mA LastKnown 3.80mA 3.50mA
20.20mA
DispMode Set LCD measurement display mode Level Level% Space
Offset Add offset distance to output Adjustable
Amp Reset Restore Amplifier settings to factory default Yes / No
Quickset
The Quickset menu contains the basic parameters required to get the unit up and running.
It is one of the three main menu options in the internal software.
Typical High & Low Level
