radiomatic
®
infrakey
The radio system can only be activated via an infrared
link between the transmitter and the receiver. This
increases the safety of operation, i.e. the machine can
not become inadvertently enabled.
radiomatic
®
infrakey operates either with an infrared
module in the receiver housing (radiomatic
®
infrakey
internal) or with the offset infrared antenna focus I
(radiomatic
®
infrakey external).
To activate radiomatic
®
infrakey, actuate the start button
on the transmitter.

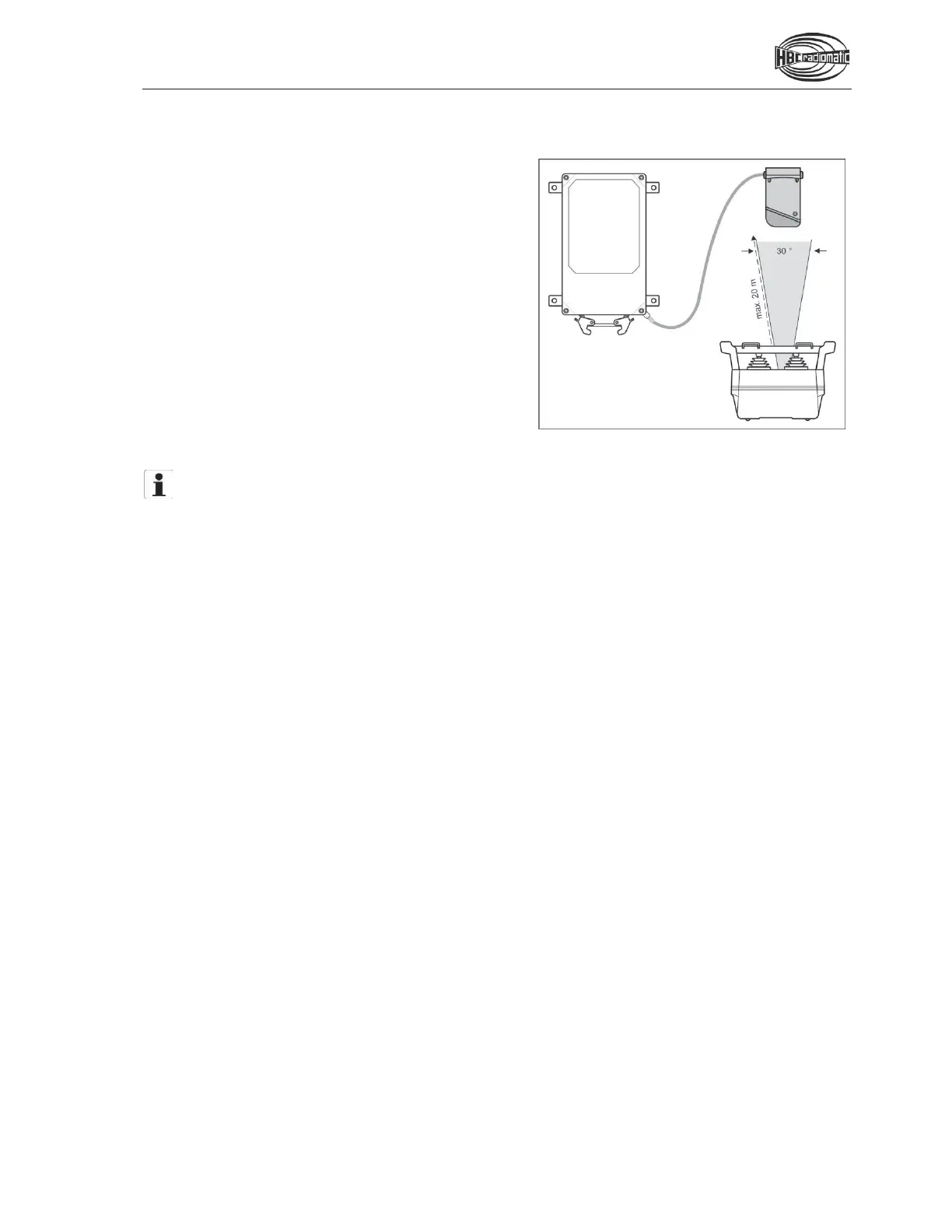

Function of radiomatic
®
infrakey with focus I
Notes:
x
The range of the infrared beam is max. 20 m (66 ft).
x
The angle of radiation is 30°.
x The front panel of the receiver must be visible (only radiomatic
®
infrakey internal).
Micro Drive
With the micro drive function the speed of the machine is limited to a preselected level. Even at full
movement of the joystick/linear lever, the operator can not exceed this speed limit. In this mann er
demanding drive maneuvers can be managed and inexperienced users can be protected from potential
dangers that can result from “speeding”.
Orthogonal Drive (Electronic Cross Gate)
With the orthogonal drive function dangerous situations, caused by unintentional diagonal movements are
being prevented. The operator will have to return the joystick back to zero position before another
directional command can be activated. This function is suitable for example for situations where the
operator has to make precision commands in confined areas. Diagonal movements are not possible.
Shut-off on Implausible Control Commands
The automatic shut-off will activate after a sequence of multiple questionable movement commands, for
example if the operator moves the joystick successively in different directions in an irregular manner.
This function protects the operator and the whole work environment from potential dangers as well as the
machine from wear resulting from rapid and erratic movements.
Depending on the ordered version this function can operate in three different ways:
x The complete radio system is shut down.
x Safety-relevant functions are deactivated.
x A previously defined function (e. g. crane horn) is activated.
To deactivate the function, press the start button until the status LED flashes green.
Then the transmitter is ready to operate again.
