Tandem Operation
Tandem Operation T1

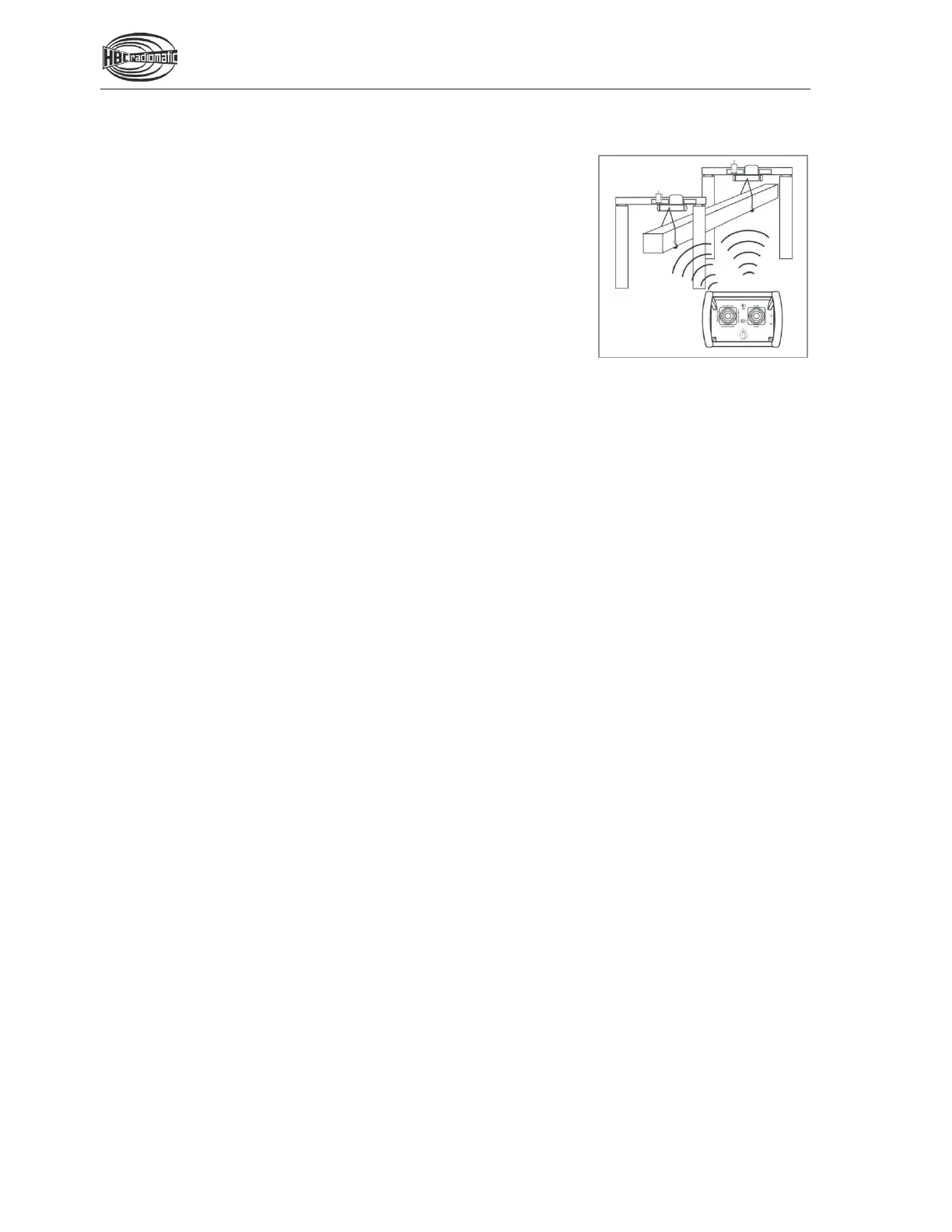

The radio system consists of 1 transmitter and 2 receivers for 2
machines. The transmitter can control the machines individually or in
parallel
The machines are selected at the transmitter via a rotary switch:
A only machine A
A+B machine A + machine B
B only machine B
Tandem Operation T2
The radio system consists of 2 transmitters and 2 receivers for 2
machines. Both transmitters are master transmitters and can control the machines individually or in
parallel.
During normal operation transmitter 1 controls machine A and transmitter 2 controls machine B. In order
to be able to switch to machine B or A+B at transmitter 1, for example, the key must be removed from
transmitter 2 and inserted in transmitter 1.
The machines are selected at the transmitter via a rotary switch:
A only machine A
A+B machine A + machine B
B only machine B
Operating Example: Control of machine A + B via transmitter 1.
1. Switch transmitter 1 and 2 off and remove the key from transmitter 2.
2. Insert the key from transmitter 2 in transmitter 1.
Machine selection via transmitter 1 is activated.
3. Turn the rotary switch of transmitter 1 to A+B.
4. Switch transmitter 1 on and actuate the start button.
The radio system now operates in tandem mode.
Tandem Operation TM/TS
The radio system consists of 2 transmitters and 2 receivers for 2 machines. One transmitter is a master
transmitter and can control the machines individually or in parallel. The other transmitter is a slave
transmitter and can only control machine B.
In order to be able to switch to machine B or A+B at the master transmitter, the key must be removed from
the slave transmitter and inserted in the master transmitter.
The machines are selected at the transmitter via a rotary switch:
A only machine A
A+B machine A + machine B
B only machine B
Operating Example: Control of machine A + B via master transmitter.
1. Switch master and slave transmitter off and remove the key from slave transmitter.
2. Insert the key from slave transmitter in master transmitter.
Machine selection via master transmitter is activated.
3. Turn the rotary switch of master transmitter to A+B.
4. Switch master transmitter on and actuate the start button.
The radio system now operates in tandem mode.
