HBM MP55 - Page 12

11
PME-MP55
HBMA0563-5.5 en
Master/Slave
123456
ON
S10
123456
ON
Master
Slave
S10
S10

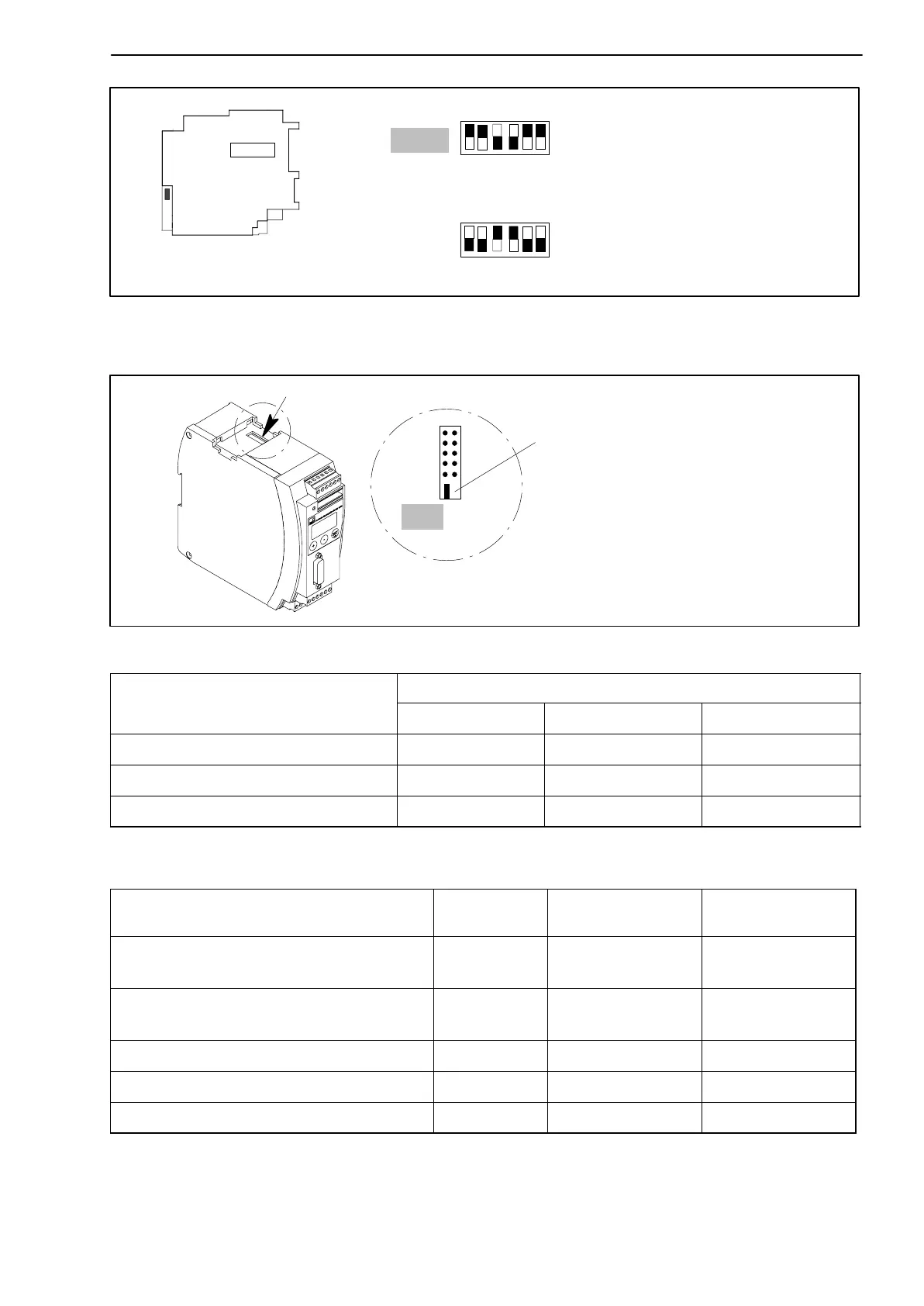

Fig. 2.3: Setting up an amplifier (Continued)
Terminating bus resistor
Toggle switch for termination resistor
(see page 19)
ON
OFF
S14
Fig. 2.4: Toggle switch for termination resistor
Bridge excitation voltage [V] Input range [mV/V]
Switch position I Switch position II Switch position III
5 3 50 500
2.5 6 100 1000
1 15 250 2500
Tab. 1.1: Input ranges for different bridge excitation voltages
Transducer type and rated data Bridge type Bridge excitation
voltage
Input range
Strain gauge force transducer
2 mV/V=20 kN
Full bridge 5 V 3 mV/V
Inductive displacement transducer
80 mV/V
Half bridge 2.5 V 100 mV/V
Inductive displacem. trans. 10 mV/V Half bridge 1 V 15 mV/V
Piezoresistive transducer 400 mV/V Half bridge 1 V 250 mV/V
Potentiometric transducer 1000 mV/V Half bridge 2.5 V 1000 mV/V
Tab. 1.2: Useful options
